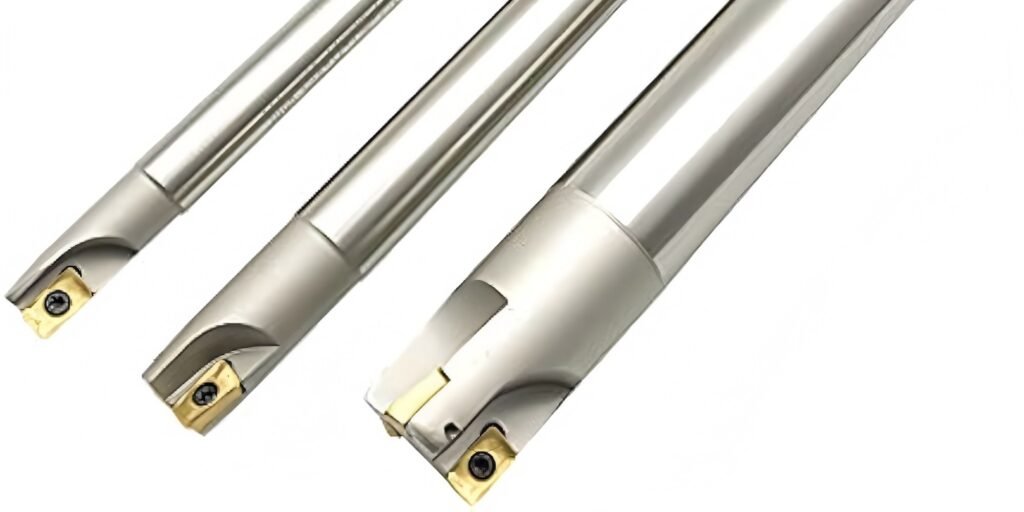

HNCarbide Indexable End Mills Why the 12mm Model Becomes Every Shop’s First Choice
Table of Contents
Product Features
Indexable carbide inserts
Optimized insert geometry for smooth cutting, strong edge support and reliable chip control. Multiple grades are available for steel (P), stainless steel (M) and cast iron (K).Rigid alloy steel body
Heat-treated tool bodies with high pocket accuracy ensure stable clamping and consistent run-out, even under heavy side milling.Multiple shank options
Straight shank and Weldon shank are available to match ER collets, hydraulic chucks or side-lock holders.Lower cost per edge
Multi-edge inserts (2–4 edges per insert, depending on type) help reduce tool cost and machine downtime compared with solid end mills.
Size Range & Standard Specifications
HNCarbide indexable end mills are available in multiple diameters to cover different machine sizes and applications:
Ø8 mm Indexable End Mill
Flutes: 2
Shank: Straight
Application: Light side milling and small pockets on low-power machines
Ø10 mm Indexable End Mill
Flutes: 2
Shank: Straight or Weldon
Application: General light roughing and profiling
- Ø12 mm Indexable End Mill (Key Model)
Flutes: 2 / 3 (depending on version)
Shank: Straight or Weldon
Inserts: High-positive indexable inserts, multiple grades available
Application: Core size for general workshops; suitable for shoulder milling, slotting and contouring (details below)
Ø14 mm Indexable End Mill
Flutes: 3
Shank: Weldon
Application: Higher metal removal rate on rigid machines
Ø16 mm Indexable End Mill
Flutes: 3 / 4
Shank: Weldon
Application: Heavy roughing and large-area side milling
Ø20 mm Indexable End Mill
Flutes: 4
Shank: Weldon
Application: High-productivity roughing of plates and blocks
Custom diameters and special lengths are available on request.
Focus Model: 12mm Indexable End Mill
The HNCarbide 12mm indexable end mill is designed as a versatile “workhorse” for day-to-day milling tasks.
Main Advantages
Compact and rigid
12 mm diameter offers a good balance between rigidity and accessibility, suitable for small pockets, steps and shoulders.
Flexible insert choice
Steel: TiAlN / AlTiN coated inserts with strong cutting edges
Stainless steel: High-positive, sharp geometry to reduce cutting force
Cast iron: Wear-resistant grade for long tool life
Clean 90° shoulders
With 90° insert geometry, the 12mm indexable end mill can produce accurate vertical walls for steps and pockets.
Stable chip evacuation
Optimized chip space and positive rake help evacuate chips even at higher feed rates, reducing the risk of built-up edge and vibration.
Typical Applications
- Shoulder milling on steel and stainless steel parts
- Slotting and side milling of plates and blocks
- Contour and pocket milling in general engineering
- Roughing and semi-finishing before final solid end mill finishing (if required)
Recommended Starting Cutting Data for 12mm Indexable End Mill
(General reference only. Final parameters depend on your actual machine, setup and insert grade.)
Material: Medium carbon steel (e.g. C45)
- Cutting speed (Vc): 150–220 m/min
- Spindle speed: approx. 4000–5000 rpm
- Feed per tooth (fz): 0.05–0.10 mm/tooth
- Axial depth of cut (ap): 0.5–1.0 × D(6–12 mm)
- Radial depth of cut (ae): 0.2–0.5 × D(2.4–6 mm)
For stainless steel, use sharp M-grade inserts, slightly lower cutting speed and feed, and sufficient coolant.
If you share your machine model, workpiece material and typical operation, HNCarbide can recommend optimized parameters for your 12mm indexable end mill.
Customization & OEM Service
HNCarbide supports OEM / non-standard designs based on your production needs:
- Special tool length and overhang for deep cavities
- Different shank styles (straight / Weldon / other standards)
- Pocket design to match your existing indexable inserts
- Personalized marking and packaging with your own brand logo
This makes it easy for distributors and machine shops to build or expand their own branded indexable end mill range.
Quality & Packaging
- 100% inspection of shank tolerance, pocket accuracy and run-out
- Consistent heat treatment and surface finishing for long body life
- Individual protective packing with clear labels (diameter, length, insert type, batch number)
- Suitable for export and warehouse stock management
Work with HNCarbide
If you are looking for a stable supplier of indexable end mills, especially the 12mm indexable end mill size, HNCarbide can support you with:
- Full product data sheet and price list
- Technical support and cutting parameter suggestions
- Flexible order quantities and OEM cooperation
Contact us with your main materials and current tool sizes, and our team will help you select the right indexable end mill specification, with a special focus on the 12mm indexable end mill for your daily machining tasks.
