Corner radius design for better edge durability and longer tool life
4-flute geometry for smooth cutting and improved surface finish
HB shank (Weldon shank) for strong clamping in end mill holders
Solid carbide construction for strength and wear resistance
Manufactured to DIN standard dimensions
Ideal for general-purpose milling, profiling, and contouring
Tool data
Description
This 4-flute corner radius end mill from the DIN GP series is engineered for enhanced edge strength and longer tool life in general-purpose milling applications. The corner radius geometry helps reduce chipping compared to sharp corners, making it ideal for semi-finishing and finishing tasks.
With a HB shank (Weldon shank) for secure tool holding, this end mill ensures stability during high-speed machining. Made from high-quality solid carbide and conforming to DIN standards, it is well-suited for use on alloy steel, stainless steel, and cast iron.
1.Used in automotive, mold, aerospace, and general machining
2.Effective for cutting steel, stainless steel, and cast iron
3.Suitable for semi-finishing and finishing in CNC milling operations
4.Designed to reduce chipping and improve performance on corners
| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4927 | DGCR-0303HB | ALCRN | Corner Radius | GU20F | 3R0.3x6x3x50xZ4 |
| XD4928 | DGCR-0305HB | ALCRN | Corner Radius | GU20F | 3R0.5x6x3x50xZ4 |
| XD4929 | DGCR-0403HB | ALCRN | Corner Radius | GU20F | 4R0.3x8x4x60xZ4 |
| XD4930 | DGCR-0405HB | ALCRN | Corner Radius | GU20F | 4R0.5x8x4x60xZ4 |
| XD4931 | DGCR-0410HB | ALCRN | Corner Radius | GU20F | 4R1.0x8x4x60xZ4 |
| XD4932 | DGCR-0503HB | ALCRN | Corner Radius | GU20F | 5R0.3x10x5x60xZ4 |
| XD4933 | DGCR-0505HB | ALCRN | Corner Radius | GU20F | 5R0.5x10x5x60xZ4 |
| XD4934 | DGCR-0510HB | ALCRN | Corner Radius | GU20F | 5R1.0x10x5x60xZ4 |
| XD4935 | DGCR-0603HB | ALCRN | Corner Radius | GU20F | 6R0.3x12x6x70xZ4 |
| XD4936 | DGCR-0605HB | ALCRN | Corner Radius | GU20F | 6R0.5x12x6x70xZ4 |
| XD4937 | DGCR-0610HB | ALCRN | Corner Radius | GU20F | 6R1.0x12x6x70xZ4 |
| XD4938 | DGCR-0615HB | ALCRN | Corner Radius | GU20F | 6R1.5x12x6x70xZ4 |
| XD4939 | DGCR-0620HB | ALCRN | Corner Radius | GU20F | 6R2.0x12x6x70xZ4 |
| XD4940 | DGCR-0803HB | ALCRN | Corner Radius | GU20F | 8R0.3x16x8x70xZ4 |
| XD4941 | DGCR-0805HB | ALCRN | Corner Radius | GU20F | 8R0.5x16x8x70xZ4 |
| XD4942 | DGCR-0810HB | ALCRN | Corner Radius | GU20F | 8R1.0x16x8x70xZ4 |
| XD4943 | DGCR-0815HB | ALCRN | Corner Radius | GU20F | 8R1.5x16x8x70xZ4 |
| XD4944 | DGCR-0820HB | ALCRN | Corner Radius | GU20F | 8R2.0x16x8x70xZ4 |
| XD4945 | DGCR-0825HB | ALCRN | Corner Radius | GU20F | 8R2.5x16x8x70xZ4 |
| XD4946 | DGCR-0830HB | ALCRN | Corner Radius | GU20F | 8R3.0x16x8x70xZ4 |
| XD4947 | DGCR-1003HB | ALCRN | Corner Radius | GU20F | 10R0.3x20x10x70xZ4 |
| XD4948 | DGCR-1005HB | ALCRN | Corner Radius | GU20F | 10R0.5x20x10x70xZ4 |
| XD4949 | DGCR-1010HB | ALCRN | Corner Radius | GU20F | 10R1.0x20x10x70xZ4 |
| XD4950 | DGCR-1020HB | ALCRN | Corner Radius | GU20F | 10R2.0x20x10x70xZ4 |
| XD4951 | DGCR-1025HB | ALCRN | Corner Radius | GU20F | 10R2.5x20x10x70xZ4 |
| XD4952 | DGCR-1030HB | ALCRN | Corner Radius | GU20F | 10R3.0x20x10x70xZ4 |
| XD4953 | DGCR-1203HB | ALCRN | Corner Radius | GU20F | 12R0.3x24x12x80xZ4 |
| XD4954 | DGCR-1205HB | ALCRN | Corner Radius | GU20F | 12R0.5x24x12x80xZ4 |
| XD4955 | DGCR-1210HB | ALCRN | Corner Radius | GU20F | 12R1.0x24x12x80xZ4 |
| XD4956 | DGCR-1220HB | ALCRN | Corner Radius | GU20F | 12R2.0x24x12x80xZ4 |
| XD4957 | DGCR-1230HB | ALCRN | Corner Radius | GU20F | 12R3.0x24x12x80xZ4 |
| XD4958 | DGCR-1610HB | ALCRN | Corner Radius | GU20F | 16R1.0x32x16x90xZ4 |
| XD4959 | DGCR-1620HB | ALCRN | Corner Radius | GU20F | 16R2.0x32x16x90xZ4 |
| XD4960 | DGCR-1630HB | ALCRN | Corner Radius | GU20F | 16R3.0x32x16x90xZ4 |
| XD4961 | DGCR-2010HB | ALCRN | Corner Radius | GU20F | 20R1.0x40x20x120xZ4 |
| XD4962 | DGCR-2030HB | ALCRN | Corner Radius | GU20F | 20R3.0x40x20x120xZ4 |

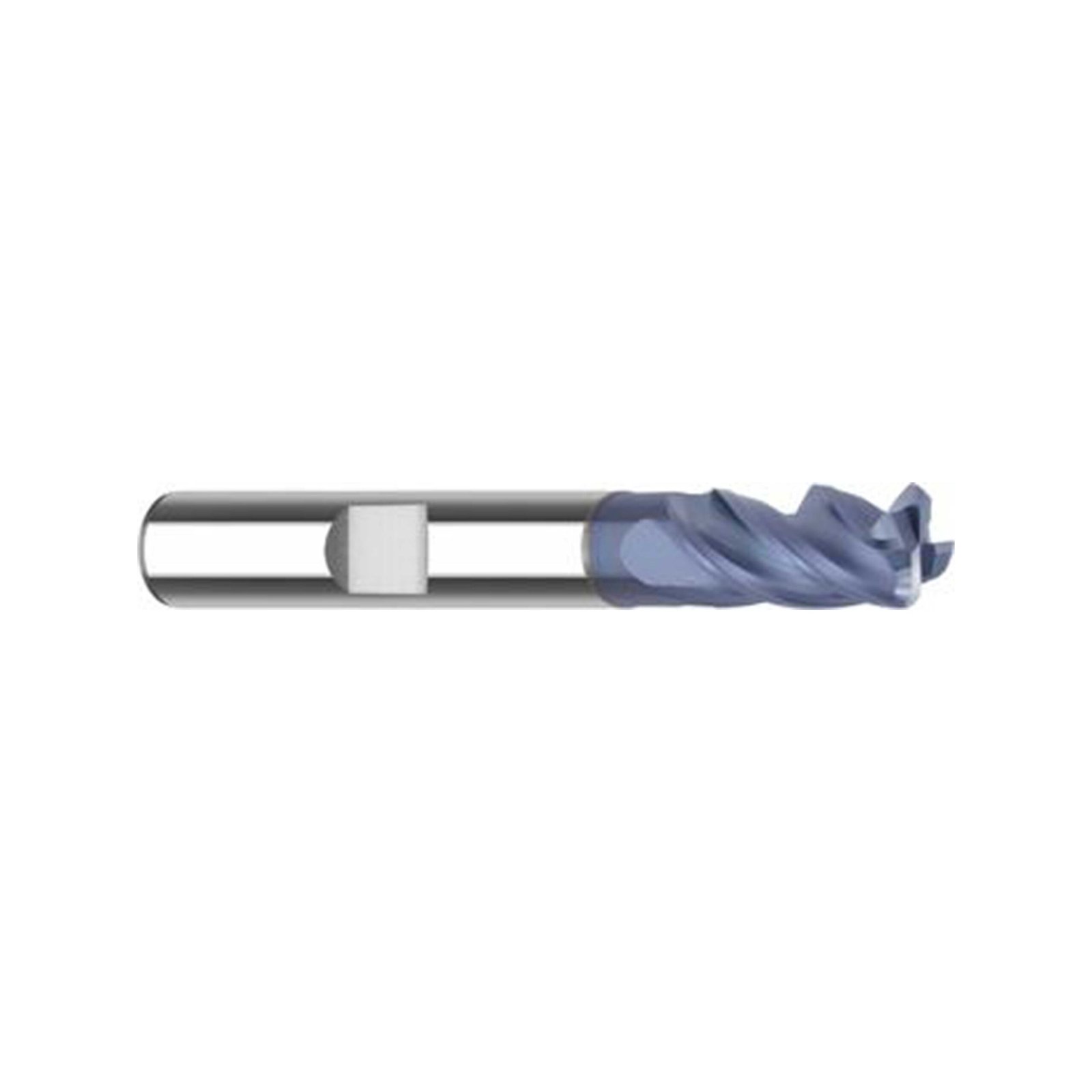

Corner radius edge reduces chipping and improves strength
4-flute geometry for smooth cutting and superior surface quality
HA (straight) shank for high-precision tool holding
Solid carbide material ensures wear resistance and durability
Manufactured to DIN standard tolerances
Suitable for general-purpose and finishing CNC milling
Tool data
Description
This 4-flute corner radius end mill from the DIN GP series combines durability and precision with a universal HA straight shank for high concentricity. The corner radius geometry enhances edge strength, reducing breakage and improving tool life in demanding milling operations.
Designed from premium solid carbide, this tool delivers stable performance in semi-finishing and finishing tasks. Its HA shank offers superior balance and is ideal for high-speed spindles requiring minimal runout. Complies with DIN standard dimensions for reliable performance across general-purpose applications.
1.Effective in steel, stainless steel, and cast iron machining
2.Common in mold making, automotive, aerospace, and mechanical parts processing
3.Optimized for semi-finishing and finishing with high surface quality requirements
4.Ideal for high-speed CNC milling machines with precision holders

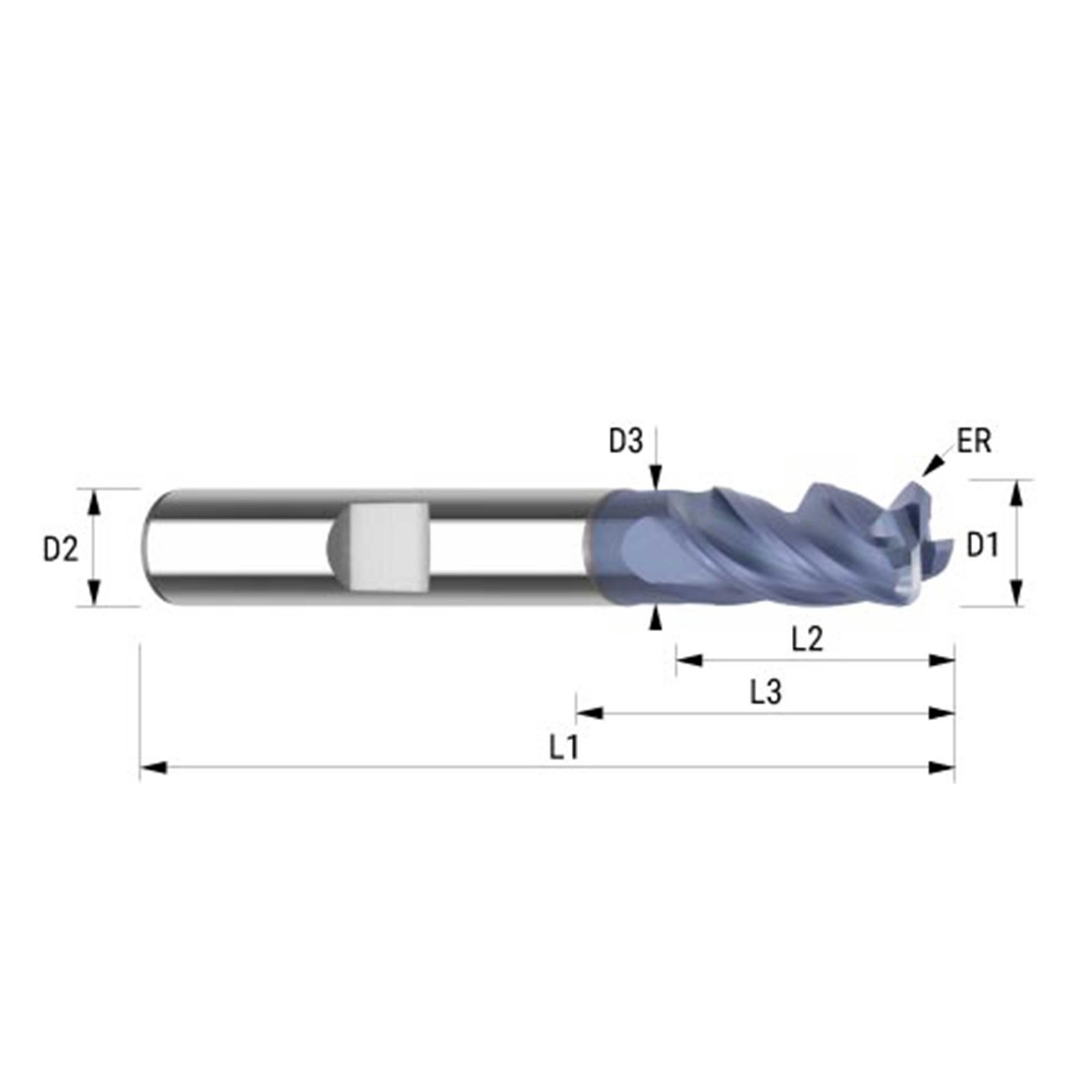

| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4891 | DGCR-0303HA | ALCRN | Corner Radius | GU20F | 3R0.3x6x3x50xZ4 |
| XD4892 | DGCR-0305HA | ALCRN | Corner Radius | GU20F | 3R0.5x6x3x50xZ4 |
| XD4893 | DGCR-0403HA | ALCRN | Corner Radius | GU20F | 4R0.3x8x4x60xZ4 |
| XD4894 | DGCR-0405HA | ALCRN | Corner Radius | GU20F | 4R0.5x8x4x60xZ4 |
| XD4895 | DGCR-0410HA | ALCRN | Corner Radius | GU20F | 4R1.0x8x4x60xZ4 |
| XD4896 | DGCR-0503HA | ALCRN | Corner Radius | GU20F | 5R0.3x10x5x60xZ4 |
| XD4897 | DGCR-0505HA | ALCRN | Corner Radius | GU20F | 5R0.5x10x5x60xZ4 |
| XD4898 | DGCR-0510HA | ALCRN | Corner Radius | GU20F | 5R1.0x10x5x60xZ4 |
| XD4899 | DGCR-0603HA | ALCRN | Corner Radius | GU20F | 6R0.3x12x6x70xZ4 |
| XD4900 | DGCR-0605HA | ALCRN | Corner Radius | GU20F | 6R0.5x12x6x70xZ4 |
| XD4901 | DGCR-0610HA | ALCRN | Corner Radius | GU20F | 6R1.0x12x6x70xZ4 |
| XD4902 | DGCR-0615HA | ALCRN | Corner Radius | GU20F | 6R1.5x12x6x70xZ4 |
| XD4903 | DGCR-0620HA | ALCRN | Corner Radius | GU20F | 6R2.0x12x6x70xZ4 |
| XD4904 | DGCR-0803HA | ALCRN | Corner Radius | GU20F | 8R0.3x16x8x70xZ4 |
| XD4905 | DGCR-0805HA | ALCRN | Corner Radius | GU20F | 8R0.5x16x8x70xZ4 |
| XD4906 | DGCR-0810HA | ALCRN | Corner Radius | GU20F | 8R1.0x16x8x70xZ4 |
| XD4907 | DGCR-0815HA | ALCRN | Corner Radius | GU20F | 8R1.5x16x8x70xZ4 |
| XD4908 | DGCR-0820HA | ALCRN | Corner Radius | GU20F | 8R2.0x16x8x70xZ4 |
| XD4909 | DGCR-0825HA | ALCRN | Corner Radius | GU20F | 8R2.5x16x8x70xZ4 |
| XD4910 | DGCR-0830HA | ALCRN | Corner Radius | GU20F | 8R3.0x16x8x70xZ4 |
| XD4911 | DGCR-1003HA | ALCRN | Corner Radius | GU20F | 10R0.3x20x10x70xZ4 |
| XD4912 | DGCR-1005HA | ALCRN | Corner Radius | GU20F | 10R0.5x20x10x70xZ4 |
| XD4913 | DGCR-1010HA | ALCRN | Corner Radius | GU20F | 10R1.0x20x10x70xZ4 |
| XD4914 | DGCR-1020HA | ALCRN | Corner Radius | GU20F | 10R2.0x20x10x70xZ4 |
| XD4915 | DGCR-1025HA | ALCRN | Corner Radius | GU20F | 10R2.5x20x10x70xZ4 |
| XD4916 | DGCR-1030HA | ALCRN | Corner Radius | GU20F | 10R3.0x20x10x70xZ4 |
| XD4917 | DGCR-1203HA | ALCRN | Corner Radius | GU20F | 12R0.3x24x12x80xZ4 |
| XD4918 | DGCR-1205HA | ALCRN | Corner Radius | GU20F | 12R0.5x24x12x80xZ4 |
| XD4919 | DGCR-1210HA | ALCRN | Corner Radius | GU20F | 12R1.0x24x12x80xZ4 |
| XD4920 | DGCR-1220HA | ALCRN | Corner Radius | GU20F | 12R2.0x24x12x80xZ4 |
| XD4921 | DGCR-1230HA | ALCRN | Corner Radius | GU20F | 12R3.0x24x12x80xZ4 |
| XD4922 | DGCR-1610HA | ALCRN | Corner Radius | GU20F | 16R1.0x32x16x90xZ4 |
| XD4923 | DGCR-1620HA | ALCRN | Corner Radius | GU20F | 16R2.0x32x16x90xZ4 |
| XD4924 | DGCR-1630HA | ALCRN | Corner Radius | GU20F | 16R3.0x32x16x90xZ4 |
| XD4925 | DGCR-2010HA | ALCRN | Corner Radius | GU20F | 20R1.0x40x20x120xZ4 |
| XD4926 | DGCR-2030HA | ALCRN | Corner Radius | GU20F | 20R3.0x40x20x120xZ4 |
