Carbide End Mill Pocket Milling Guide： Ramping and Helical Entry

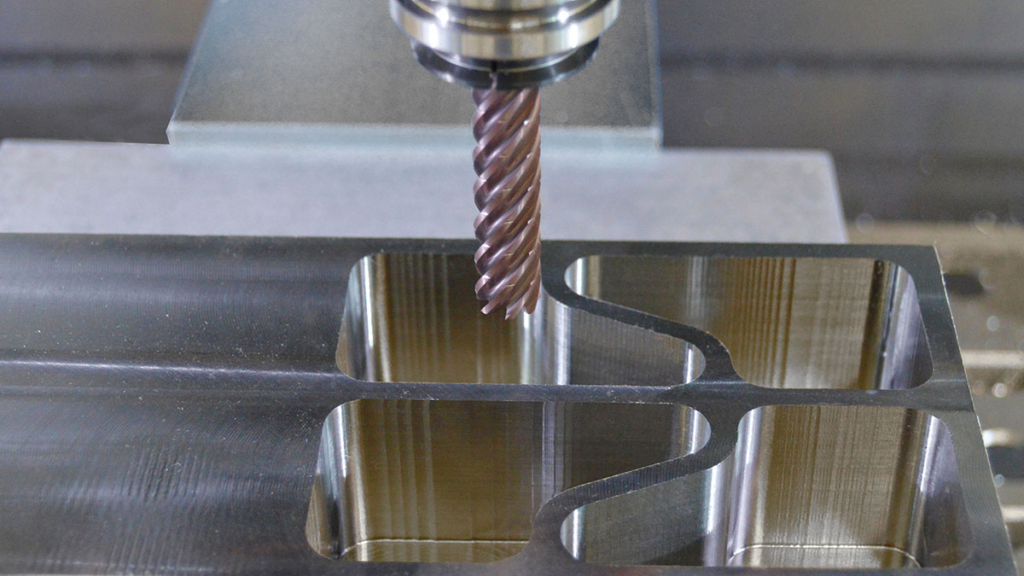

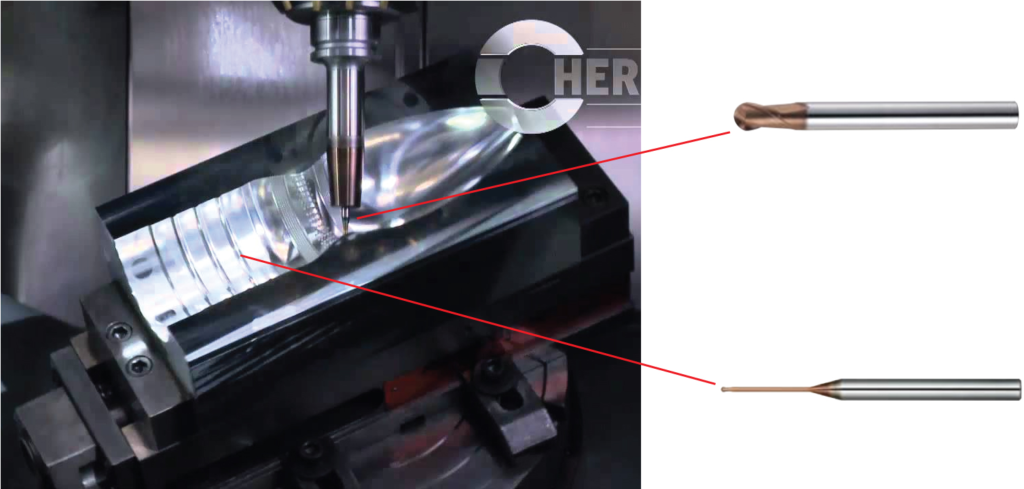

A pocket can punish an otherwise reliable solid carbide end mill. The first entry is close to a full-width cut, chips have nowhere obvious to go, and every internal corner raises radial engagement. A tool that runs quietly along an open shoulder may chatter, pack chips, or chip a corner as soon as it enters a closed cavity.

The toolpath matters as much as the catalog cutting data. A dependable process usually separates entry, bulk material removal, and wall finishing instead of forcing one pass to do all three. This guide explains how to apply that idea with center slotting, side milling, linear ramping, and helical interpolation.

Why pockets are harder on an end mill

In open-side milling, chips can leave the cutting zone and radial engagement remains fairly predictable. A closed pocket changes both conditions. Slotting at 100% radial engagement loads the full cutter diameter. At a corner, the engagement angle can rise suddenly unless the CAM path rolls around the corner or reduces the feed. Chips may then be cut a second time, which adds heat and can damage the cutting edge.

The bottom edges also matter. Some solid carbide end mills cut on center and can ramp or interpolate into solid material. Others have limited center-cutting capability or a catalog-specified maximum ramp angle. A general-purpose side-milling tool should not be assumed to be a plunge tool.

Before programming the pocket, confirm five items: center-cutting capability, maximum ramp angle, axial depth per ramp revolution, minimum interpolation diameter, and whether the tool maker reduces feed for slotting or entry. Those limits take priority over any rule of thumb.

A practical pocket milling sequence

For a conventional rectangular or freeform pocket, split the operation into three jobs:

Create a controlled opening near the center with a predrilled hole, a linear ramp, or a helical path.
Remove the bulk of the stock with a toolpath that limits radial engagement and maintains chip space.
Leave a consistent wall allowance, then finish the contour in a separate pass.

This sequence avoids burying the tool in a corner at the start. It also gives the finishing pass an even amount of material, which helps dimensional consistency and reduces witness marks.

Center slot first, then side mill

One straightforward method is to open a slot through the middle of the pocket, then move outward by side milling. For a stable setup and an end mill suited to slotting, a radial width of cut (ae) around 40% to 60% of tool diameter (D) is a useful starting window for the follow-up side-milling passes. It is not a universal optimum. Hard material, long overhang, weak fixturing, or a deep pocket may need lower radial engagement.

The center opening gives chips a path out and prevents the first contour pass from beginning in a packed corner. Keep the cutter moving with climb-milling arcs where the control and setup allow it. Avoid abrupt 90-degree changes in direction; a small programmed roll around the corner produces a less violent load change.

Stage	Typical engagement	Main objective	Programming note
Entry or center slot	Up to 100% ae	Establish access to the pocket	Reduce feed as required by the tool maker and clear chips aggressively
Bulk side milling	Start near 0.4D-0.6D ae	Remove stock with more space for chips	Reduce ae for hard material, deep reach, or an unstable setup
Wall semi-finish	Light, consistent allowance	Remove roughing variation	Follow the final contour with smooth lead-in and lead-out moves
Finish pass	Small radial allowance	Hold size and surface finish	Use a separate pass; do not finish while the tool is still clearing heavy stock

Two passes are usually safer than one contour pass

Following the final pocket boundary while removing all the stock looks efficient in CAM. In the machine, the cutter repeatedly encounters high engagement at corners and recuts chips trapped against the wall. This is a common route to edge chipping and tapered walls.

A better plan is to rough the central volume first, leaving a controlled radial allowance. A second contour pass then removes that allowance under steadier load. For tight tolerance work, insert a semi-finishing pass before the final wall cut, especially when the end mill has a long reach or the pocket is deep enough for tool deflection to matter.

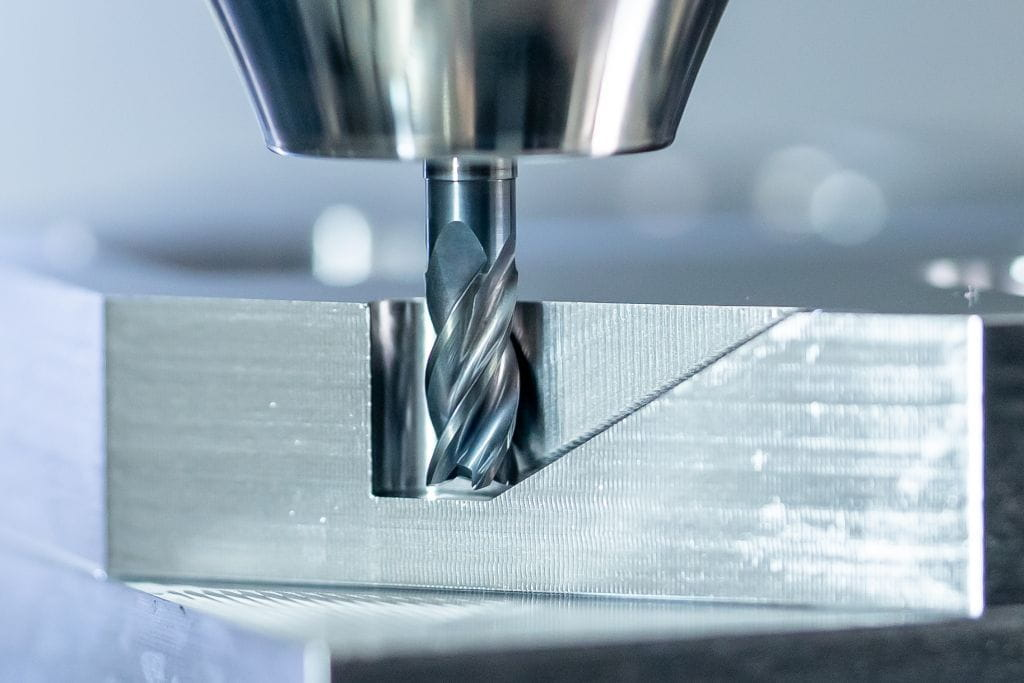

Linear ramping choose the angle by tool capability

Linear ramping combines feed in XY with a gradual Z descent. It is often the simplest way to enter an elongated pocket because the tool can use the available length instead of cutting straight down.

As a practical starting point for suitable center-cutting solid carbide end mills:

For D <= 10 mm, begin around 5°-10°.
For D > 10 mm, begin around 3°-7°.

Treat these as commissioning ranges, not guaranteed limits. One manufacturer’s solid carbide end mill may be designed for a 10° ramp, while another tool or an indexable cutter may specify only 0.5°-3°. The end geometry, flute count, workpiece material, ramp length, and depth of cut all change the safe angle. Use the catalog value when it is available.

A shallow angle spreads the descent over a longer distance and usually softens axial loading, but it needs more room. A steep angle shortens cycle time and may cause the end teeth to carry too much load. When the machine sound turns sharp at the bottom of each ramp, reducing the angle is often more effective than simply lowering spindle speed.

Tool or setup condition	Safer first adjustment	Reason
Diameter above 10 mm	Reduce ramp angle	A larger cutter produces a larger axial step for the same ramp length
Long overhang or slim neck	Lower angle and feed	Reduces deflection and entry shock
Stainless steel or heat-resistant alloy	Use a conservative angle and reliable coolant/chip evacuation	Limits heat and prevents chips from remaining under the tool
Aluminum with large flute space	A steeper catalog-approved ramp may be possible	Sharp edges and open flutes can evacuate the larger chip volume
Tool is not center cutting	Predrill or choose another cutter	A ramp still asks the bottom edges to cut near the center

For a ramp angle alpha and a horizontal ramp length L, the vertical drop is approximately:

Z drop = L x tan(alpha)

That relationship is useful when the available straight-line distance is limited. If a 10 mm cutter must descend 5 mm inside a short pocket, a 5° ramp needs about 57 mm of horizontal travel. If the pocket cannot provide that distance, helical entry may fit better.

Helical interpolation the compact entry for closed pockets

Helical interpolation moves the tool in a circle while feeding downward in Z. The cutter enters progressively and leaves an open center for chips. It is a strong option when the pocket is too compact for a long linear ramp or when a predrilled entry hole would add a tool change.

The toolpath diameter must be large enough to prevent the cutter from rubbing near its center and to leave room for chips. For an internal helix:

Helix path diameter = finished entry diameter – tool diameter

The axial drop per revolution is set by the helix angle:

Pitch per revolution = pi x helix path diameter x tan(alpha)

For example, a 10 mm end mill following a 10 mm path diameter at 3° descends about 1.65 mm per revolution. The calculated pitch still has to remain below the cutter maker’s allowable axial depth for helical entry.

Programmed feed also deserves attention. On an internal circular path, the cutting edge travels farther than the tool center. If CAM does not compensate automatically, the centerline feed must be lower than the desired feed at the cutting edge. A common relationship is:

Centerline feed = cutting-edge feed x (entry diameter – tool diameter) / entry diameter

Verify how the CAM system defines its circular feed before applying a manual correction. Double compensation can make the process unnecessarily slow.

Linear ramp or helical entry

Decision point	Linear ramp	Helical interpolation
Available space	Best in long or open pockets	Fits compact closed pockets
Programming	Simple XY and Z move	Requires coordinated circular XY and Z motion
Chip path	Chips may collect at the low end of the ramp	Open center can improve chip clearance
Bottom shape during entry	Leaves an inclined track until subsequent passes	Produces a circular entry feature
Machine demand	Works on most CNC controls	Benefits from smooth interpolation and look-ahead
Best use	Slots and elongated cavities	Circular openings and central access to closed pockets

Helical entry is not automatically gentle. A helix that is too tight can leave little space between the cutter and the hole wall. Chips recirculate, the effective engagement increases, and the tool may cut heavily near its center. If the pocket permits it, enlarge the entry circle or use a smaller end mill.

Cutting data during entry

Do not carry a high-speed side-milling feed directly into a slot, ramp, or helix. Entry engages more of the cutter and often uses the less efficient area near the tool center. Start with the manufacturer’s slotting or ramping data. If no entry data is available, a cautious commissioning approach is to reduce feed from the side-milling value, observe spindle load and chip shape, then increase it in controlled steps.

Keep chip load meaningful. Cutting too slowly can make the edge rub, particularly in stainless steel and work-hardening alloys. The aim is a stable cut with formed chips, not the lowest possible feed.

Coolant strategy depends on material and tool recommendation. Air blast is often useful for dry steel and cast iron because it removes chips without thermal cycling. Aluminum and stainless steel frequently benefit from coolant or minimum-quantity lubrication, provided the flow reaches the bottom of the pocket. A weak stream that cannot move chips may do less good than a well-aimed air blast.

Troubleshooting pocket milling problems

Symptom	Likely process cause	First corrective action
Corner chipping	Sudden engagement increase or chip recutting	Use a rolled corner path, reduce corner feed, and improve chip evacuation
Chatter during entry	Ramp is too steep, overhang is long, or the helix is too tight	Reduce angle, shorten the setup, or enlarge the interpolation diameter
Tapered walls	Tool deflection during heavy contouring	Leave a uniform allowance and add a semi-finish or finish pass
Scratched pocket floor	Chips trapped under the end teeth	Improve air/coolant direction and avoid dwelling at the bottom
Fast wear at the tool center	Excessive axial feed or poor center-cutting geometry	Lower pitch per revolution or use a purpose-designed ramping tool
Built-up edge	Heat, rubbing, or poor lubrication	Restore chip load, use a sharper geometry, and improve lubrication

A setup checklist before the first part

Confirm that the flute length clears the deepest cutting level while the holder remains safely above the workpiece. Keep stickout as short as the feature allows. Check holder runout; uneven flute loading is especially damaging when the cutter is already under high engagement during entry.

In the CAM simulation, look beyond collisions. Review engagement at internal corners, the remaining stock after roughing, retracts through chip-filled areas, and whether the finishing pass begins in a visible wall. On the machine, watch spindle load through the entire helix or ramp, not just at full depth. A load spike at the same angular position each revolution often points to chip recutting or insufficient clearance.

Final recommendation

The most reliable pocket cycle gives each stage a clear job. Enter near the center with a catalog-approved ramp or helix, open the cavity with controlled radial engagement, and finish the wall in a separate pass. The 40%-60% ae and diameter-based ramp-angle ranges in this guide are sensible starting points for many rigid setups, but they must be adjusted to the specific end mill, material, reach, and machine.

HNCarbide can help match solid carbide end mill geometry, flute count, coating, and reach to a customer’s pocket depth and entry strategy. For a useful recommendation, send the workpiece material, pocket dimensions, tool diameter, spindle limit, holder type, and coolant method rather than asking for cutting speed alone.
