Why Is Chip Control So Critical in Steel Turning?

In modern CNC turning, chip control is not a minor detail — it is a decisive factor in safety, productivity, automation stability, and tool life.

Have you ever faced:

Long ribbon chips wrapping around the toolholder?
Surface scratches caused by chip re-cutting?
Machine alarms due to chip congestion?
Inconsistent tool life at higher cutting speeds?

If yes, the root cause is often poor chip control matching — not necessarily the insert grade itself.

This article provides a structured, engineering-based analysis of:

Chip morphology in steel turning
The influence of cutting speed (vc) on chip control range
The impact of coolant vs. dry cutting
How to select the correct chipbreaker geometry
Practical parameter windows for stable chip breaking

What Determines Chip Shape in Steel Turning?

Chip formation depends primarily on:

Depth of cut (ap)
Feed rate (f)
Cutting speed (vc)
Insert chipbreaker geometry
Coolant condition

When machining medium carbon steels (e.g., 45# / AISI 1045 / S45C), chip shape changes significantly depending on chip thickness and thermal conditions.

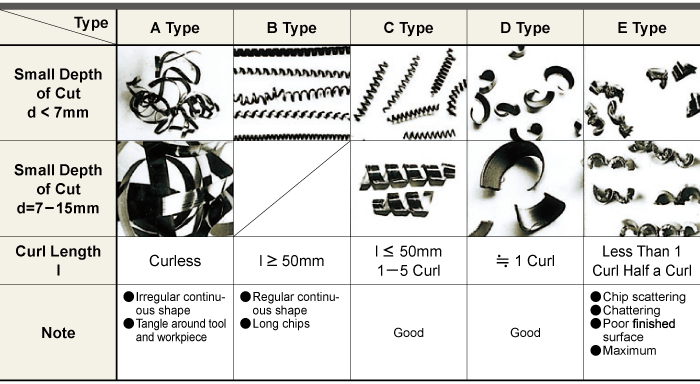

Typical Chip Morphology Classification

Chip Type	Description	Stability	Risk Level
A	Long irregular ribbon	Very unstable	High (wrapping)
B	Regular long spiral	Unstable	Medium–High
C	Short spiral (1–5 turns)	Acceptable	Medium
D	Half-circle (~1 turn)	Good	Low
E	Short fragmented chips	Ideal	Very Low

Key Insight:

Chip types C–E are typically considered acceptable in production.
Chip types A and B are unacceptable in automated CNC environments.

But what determines which type you get?

How Does Depth of Cut Affect Chip Control?

Chip thickness is largely proportional to feed rate and depth of cut.

When ap increases:

Chip cross-section increases
Chip rigidity increases
Curling becomes stronger
Breaking becomes easier

Recommended Feed Windows by Depth of Cut

Depth of Cut (ap)	Feed Range (mm/rev)	Expected Chip Type	Recommended Chipbreaker
< 2 mm	0.10–0.25	A–C	Light cutting geometry (LF type)
2–5 mm	0.20–0.35	C–D	Medium chipbreaker (MF type)
5–10 mm	0.30–0.50	D–E	Heavy chipbreaker (HF type)

If you reduce feed excessively at larger depths, chips may return to continuous type.

So the real question is:

Are you adjusting feed together with depth of cut — or independently?

Does Higher Cutting Speed Always Improve Productivity?

Intuitively, higher cutting speed increases productivity. But what happens to chip control?

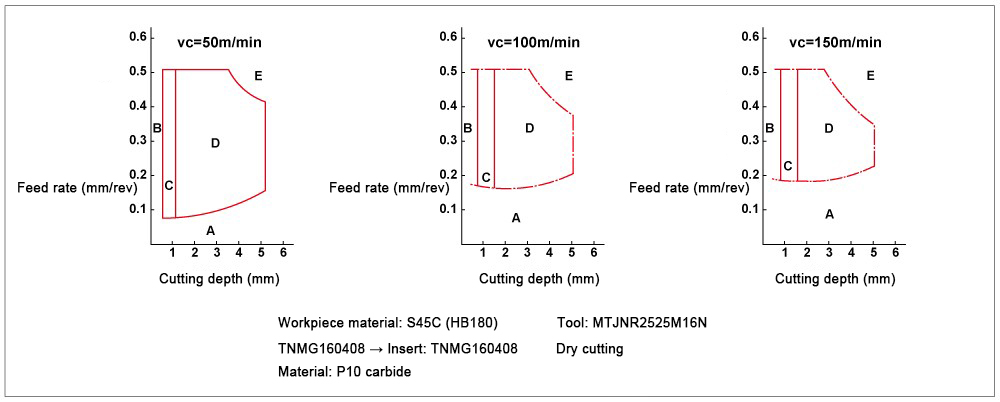

Let’s examine chip control windows at different cutting speeds.

Chip Control Window vs Cutting Speed

Based on typical industrial tests in steel turning:

Cutting Speed (m/min)	Stable Chip Control Window (Feed Range mm/rev)	Chip Control Area Size
50	0.15–0.40	Wide
100	0.20–0.35	Medium
150	0.25–0.32	Narrow

Why Does the Window Shrink?

As cutting speed increases:

1.Cutting temperature increases

2.Steel plasticity increases

3.Chips become softer and more ductile

4.Chipbreaker struggles to fracture chip

5.Continuous chips reappear

This is why in high-speed turning:

Feed precision becomes critical
Chipbreaker design must be optimized
Coolant strategy becomes important

So instead of asking:

“Can I run faster?”

You should ask:

“Is my chipbreaker designed for this speed range?”

Dry vs Wet Cutting — Does Coolant Really Change Chip Control?

Many shops assume coolant only affects tool life. But it also significantly affects chip formation.

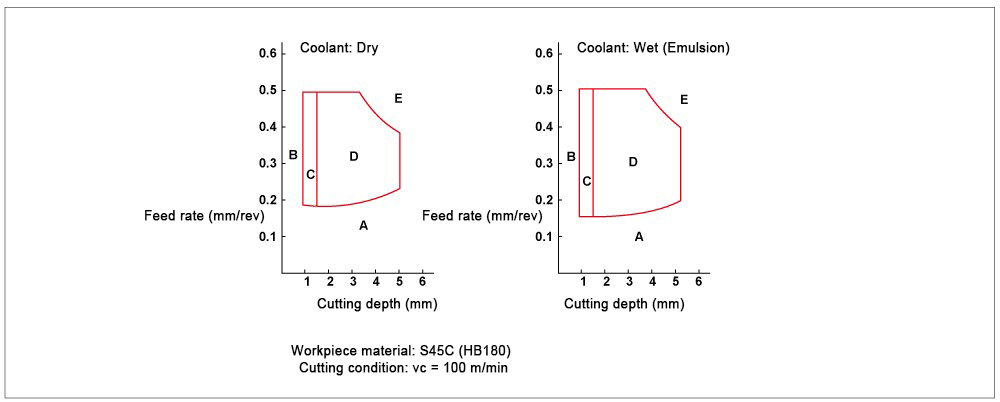

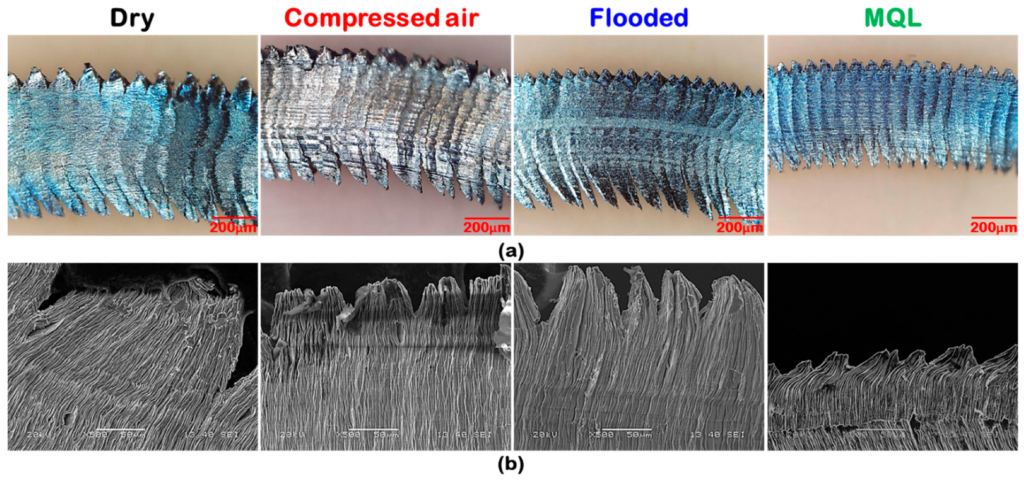

Dry vs Wet Comparison (Same Cutting Speed: 100 m/min)

Condition	Thermal State	Chip Ductility	Chipbreaking Range
Dry Cutting	High temperature	High ductility	Narrow
Wet Cutting (Emulsion)	Reduced temperature	Lower ductility	Wider

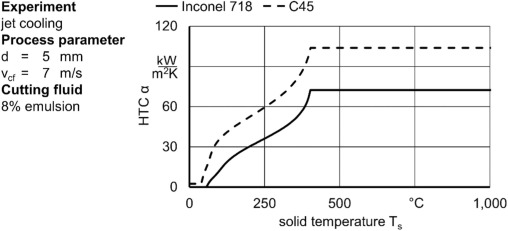

Engineering Explanation

Coolant reduces:

Shear zone temperature
Secondary deformation temperature
Built-up edge formation

Lower temperature → higher brittleness → easier fracture.

Therefore:

At identical speed, wet cutting often provides a larger chip control window.

But does that mean coolant is always better?

Not necessarily.

In coated carbide turning inserts (e.g., PVD TiAlN or CVD Al2O3 coatings), thermal shock must also be considered.

So the correct strategy depends on:

Insert grade
Coating type
Workpiece hardness
Machine capability

How Do Chipbreaker Geometries Actually Work?

Chipbreakers are not decorative grooves — they are precisely engineered deformation systems.

A chipbreaker works by:

1.Forcing chip to curl

2.Increasing bending stress

3.Creating tensile stress on outer surface

4.Causing fracture

Let’s examine three common geometry types in steel turning inserts.

Chipbreaker Type	Application Range	Feed Sensitivity	Typical Use
Light (LF)	Finishing	High	ap < 2 mm
Medium (MF)	General turning	Medium	2–5 mm
Heavy (HF)	Roughing	Low	>5 mm

What Happens If You Use the Wrong One?

Heavy breaker at small feed → no chip contact → ribbon chips
Light breaker at heavy feed → chip overflows groove → uncontrolled break

Matching feed and breaker geometry is essential.

Case Example: Medium Carbon Steel Turning

Let’s consider:

Material: AISI 1045
Hardness: HB180
Insert: CNMG120408, P25 grade, MF chipbreaker
Coolant: Emulsion

Stable Parameter Window

Parameter	Value
Cutting Speed	120 m/min
Depth of Cut	3 mm
Feed	0.28 mm/rev
Chip Type	D–E
Tool Life	Stable (VB < 0.3 mm at 15 min)

When speed increased to 160 m/min (same feed):

Chip returned to C-type spiral
Chip control less stable
Surface finish fluctuated

Why?

Because chip control window narrowed at higher speed.

What Are the Real Production Recommendations?

If you see long continuous chips:

Increase feed slightly
Reduce cutting speed moderately
Switch to stronger chipbreaker
Consider coolant activation

If chips are too fragmented and surface roughness increases:

Reduce feed
Slightly increase speed
Use lighter chipbreaker

For automated production:

Aim for consistent E-type short broken chips.

Final Thoughts — Chip Control Is a System, Not a Single Parameter

Chip control is the result of:

Speed (vc)
Feed (f)
Depth (ap)
Chipbreaker geometry
Coolant condition
Workpiece material behavior

When one variable changes, the entire chip control window shifts.

Instead of asking:

“Why is my insert failing?”

Ask:

“Is my parameter window aligned with this chipbreaker design?”

Conclusion

In steel turning:

Increasing cutting speed narrows chip control range.
Coolant widens chipbreaking window.
Feed rate is the most sensitive chip control parameter.
Chipbreaker geometry must match depth and feed.
Stable chip control improves safety, automation, and tool life.

Understanding these relationships transforms chip control from a trial-and-error problem into a predictable engineering process.
