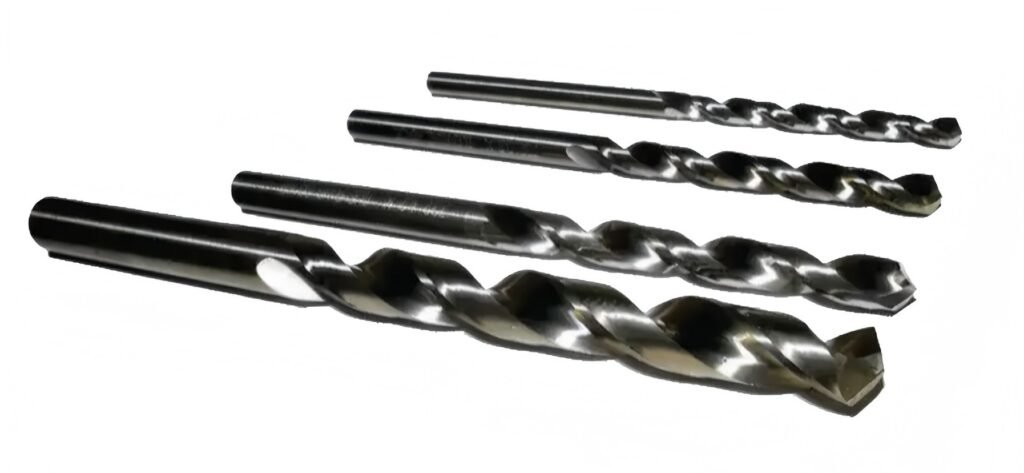

Tungsten Carbide Drill Bits and Sets: Buying Guide for Professionals
Table of Contents
What Are Tungsten Carbide Drill Bits?
Tungsten carbide drill bits are made from a blend of tungsten and carbon, resulting in a material that’s incredibly hard and durable. Unlike standard high-speed steel (HSS) drill bits, tungsten carbide bits can withstand higher temperatures, resist wear, and offer a longer service life. These characteristics make them ideal for drilling through tough materials like steel, stainless steel, cast iron, and other high-hardness metals.
Composition and Benefits of Tungsten Carbide Drill Bits:
- Hardness:Tungsten carbide is one of the hardest materials available, making carbide drill bits suitable for high-speed drilling and prolonged use on tough materials.
- Heat Resistance:Carbide drill bits can withstand temperatures up to 1000°C (1832°F) without losing their sharpness, unlike HSS bits, which tend to dull faster under heat.
- Durability:Tungsten carbide bits exhibit low wear rates, leading to fewer tool changes and higher productivity over time.
- Precision:With better edge retention, carbide drill bits offer cleaner holes and more precise cuts, reducing the need for rework and enhancing overall machining quality.
3D Internal Coolant ALCRONA Coated Carbide Drill Bit
The 3D internal coolant ALCRONA coated carbide drill bit is designed for stable, high-performance drilling in steels and stainless steels.
Made from premium micro-grain tungsten carbide and coated with ALCRONA, it offers excellent wear resistance, heat resistance and low friction, making it ideal for high-speed and dry or semi-dry machining.
Dual internal coolant channels deliver cutting fluid directly to the cutting edge, improving chip evacuation, reducing heat and extending tool life. This ensures consistent hole quality and process reliability on modern CNC machining centers.
Tungsten Carbide Drill Bit Sets vs Mixed Sets
When selecting drill bits for metalworking, professionals often face a decision between purchasing a full tungsten carbide drill bit set or a mixed set that combines carbide with other materials like HSS or cobalt.
Here’s a comparison to help you determine which is the right choice for your business:
Feature | Tungsten Carbide Drill Bit Set | Mixed Sets (Carbide + HSS/Cobalt) |
Material Composition | Entirely carbide | Combination of materials (Carbide + HSS or Cobalt) |
Durability | Extremely durable | Lower durability, especially for carbide content |
Cost | Higher upfront cost | More affordable, but may wear quicker |
Precision | High precision and cleaner holes | Less precise for tougher materials |
Versatility | Best for hard materials | Versatile for a range of materials, but may not last long on hard metals |
When to Choose a Full Tungsten Carbide Drill Bit Set:
A full tungsten carbide set is worth the investment if you regularly drill through tough materials like hardened steel, stainless steel, and cast iron. Carbide bits offer superior performance, longer tool life, and cleaner holes, especially in high-demand industries such as aerospace, automotive, and heavy machinery.
When a Mixed Set May Be Useful:
Mixed sets are a great option for general-purpose use, particularly in shops that work with both soft and hard materials. They offer flexibility at a more affordable price but may not deliver the same longevity or precision as carbide-only sets when drilling into tougher metals.
Core Sizes in a Professional Set
In any professional set, some sizes are more commonly used than others. These core sizes, like the 3/8 carbide drill bit and 1/2 carbide drill bit, are versatile and offer the necessary balance between strength and precision for most metalworking applications.
Typical Roles of 3/8 Carbide Drill Bit and 1/2 Carbide Drill Bit:
- 3/8 Carbide Drill Bit:Ideal for medium-sized holes in steel and other tough materials. This size is commonly used for drilling through parts that require a strong, consistent hole diameter, such as in the automotive or manufacturing industries.
- 1/2 Carbide Drill Bit:A larger, heavy-duty size suitable for making deeper holes in thicker materials. The 1/2″ bit is essential for larger-scale operations, particularly in industries that deal with heavy machinery, construction, or metal fabrication.
Size | Common Applications | Material Types |
3/8 Carbide Drill | General drilling in steel, aluminum, cast iron | Steel, Stainless Steel, Cast Iron |
1/2 Carbide Drill | Larger holes, deep drilling operations | Steel, Stainless Steel, Brass |
These core sizes cover most professional drilling needs, making them indispensable for metalworking shops.
Focus on 3/8 Solid Carbide Drill
The 3/8 solid carbide drill bit is one of the most popular choices for professionals. Its robust design allows it to tackle a wide range of materials, including steel, stainless steel, and cast iron.
Applications and Performance:
- Steel:The 3/8 solid carbide drill bit performs excellently on steel, maintaining precision while handling the material’s resistance and toughness. It can drill clean holes without causing burrs or damage to the material.
- Stainless Steel:Drilling into stainless steel is challenging due to its hardness and heat resistance. However, solid carbide drill bits are designed to manage these challenges, offering clean, efficient drilling.
- Cast Iron:Cast iron can be tricky due to its brittleness, but a 3/8 solid carbide drill bit can cut through it with ease, producing consistent holes without premature tool wear.
Carbide’s high resistance to heat and wear makes it ideal for industries where precision is critical and tool failure can result in significant downtime.
How to Judge Quality Before Buying
Before purchasing tungsten carbide drill bits, it’s essential to assess the quality of the bits to ensure they meet your requirements. Consider the following factors:
- Substrate:High-quality carbide with a fine-grain composition ensures better wear resistance and longer tool life. Poor-quality carbide may degrade quickly, reducing the effectiveness of the drill bit.
- Flute Finish:A smooth flute finish helps with chip removal and reduces heat buildup. Look for drill bits with polished flutes for optimal performance.
- Coating:Coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) are common on high-performance carbide drill bits. These coatings reduce friction and enhance heat resistance, helping to extend the tool’s life.
- Shank Accuracy:Ensure that the shank is properly machined and accurately sized. Poor shank accuracy can lead to poor alignment, increasing the risk of bit breakage or poor hole quality.
- Packaging:Check that the drill bits come in durable packaging to avoid damage during shipping or storage. This will help maintain the integrity of the cutting edges.
Cost vs Productivity Calculation
When investing in carbide drill bits, it’s essential to weigh the initial cost against the productivity gains. Here’s a simple way to compare price per drill vs cost per hole:
Price per Drill:
- A set of 5 tungsten carbide drill bits may cost around $100, while individual high-quality carbide bits may be priced at $25 each.
Cost per Hole:
- If a carbide drill bit can last for 1,000 holes, the cost per hole would be $0.10. A HSS drill bit, which wears out after 200 holes, would result in a higher cost per hole (around $0.50 per hole, assuming a $25 price).
Calculation:
Drill Type | Price per Drill | Number of Holes | Cost per Hole |
Tungsten Carbide | $25 | 1000 | $0.10 |
HSS Drill Bit | $5 | 200 | $0.50 |
As shown in the table, while carbide drill bits are more expensive upfront, they provide a lower cost per hole over time, making them a more economical choice for high-volume or high-precision tasks.
Storage and Maintenance of Tungsten Carbide Drill Bit Sets
Proper storage and maintenance are crucial for maximizing the lifespan and performance of tungsten carbide drill bits.
Here’s how you can take care of your drill bits:
- Store in Dry, Clean Areas:Keep your carbide drill bits in a clean, dry environment to prevent rust and damage.
- Protect Cutting Edges:Use protective cases or sleeves to protect the sharp cutting edges of the bits. Avoid dropping or knocking them, as this can cause chips or cracks.
- Regular Inspection:Check the drill bits regularly for wear or damage. If the bits are dull, regrind them or replace them to maintain cutting efficiency.
- Lubrication:Use high-quality cutting fluids to ensure smooth operation and prevent overheating during use. Apply coolant directly to the cutting edge when drilling.
Conclusion
Investing in tungsten carbide drill bits and sets is a smart decision for professionals who prioritize durability, precision, and long-term productivity. By considering factors like material composition, coating, and size selection, you can make an informed decision that maximizes your shop’s efficiency and minimizes costs. Whether you’re choosing a full carbide set or individual drill bits, the performance benefits of tungsten carbide can significantly improve your machining operations, ensuring clean, precise holes in even the toughest materials.
