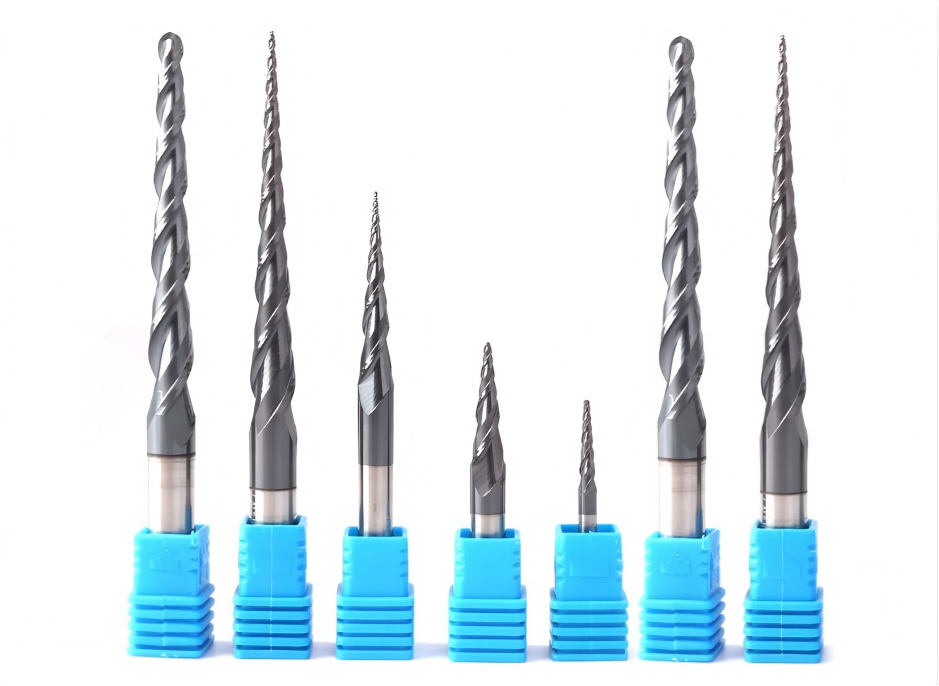

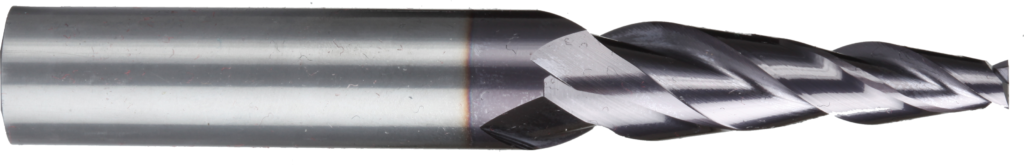

DIN Standard 2-Flute Taper End Mill is a precision solid carbide taper end mill designed for stable and efficient CNC machining. Featuring a two-flute geometry, this taper end mill provides excellent chip evacuation and reduced cutting resistance, making it ideal for aluminum, steel, stainless steel, and non-ferrous materials.
Manufactured under DIN standards, the optimized end mill taper angle options—such as 3 degree, 5 degree, 7 degree, 10 degree, and 12 degree taper end mill—ensure accurate profiling, smooth surface finish, and reliable dimensional control. The reinforced core and precision-ground cutting edges enhance rigidity and tool life during deep cavity and contour machining.
This taper end mill cutter is suitable for mold making, engraving, and complex CNC applications, with consistent performance in both roughing and finishing operations.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| ALCRN | Al: 18–32% Cr: 10–25% N: 45–57% | Hardness: 2800–3200 HV (≈30–32 GPa) Thickness: 1–5 μm (typically 3–4 μm in applications) Oxidation temperature: 1000–1100°C (short-term up to 1100°C) Deposition temperature: ＜500°C (suitable for HSS and carbide substrates) | Red hardness: maintains hardness even at 1100°C, better than TiAlN (whose hardness drops above about 900°C). Adhesion: critical load up to 40 N (with optimized process). Wear resistance: suitable for high-speed cutting and dry machining, especially effective on stainless steels and alloy steels. | Cutting tools: end mills, gear cutters, drills (e.g. Balinit Alcorna series). Moulds: aluminium die-casting moulds, stamping tools. Industrial parts: piston rings, high-temperature wear-resistant parts (combined with suitable interlayer design). |
A taper end mill is mainly used for deep cavity machining, mold and die work, and angled or contoured surfaces. Compared with straight end mills, the tapered geometry increases core strength and rigidity, helping reduce chatter and tool deflection during long-reach or high-precision CNC machining.
Selecting the right end mill taper angle depends on cavity depth, wall clearance, and rigidity requirements.
3–5 degree taper end mill: best for deep, narrow cavities with limited clearance
7–10 degree taper end mill: balanced choice for general mold finishing and profiling
12–20 degree taper end mill: maximum rigidity for open features and heavier cutting
Always choose the smallest angle that still provides enough stiffness for your application.
A straight end mill has a constant diameter, while a taper end mill cutter gradually increases in diameter toward the shank. This taper design improves rigidity and vibration resistance, making taper end mills more suitable for deep cavities and long tool overhangs.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
HNCarbide taper end mill solutions are widely used in mold making, die machining, and precision CNC applications where stability and profile accuracy are critical. With carefully controlled end mill taper angle designs, our taper end mills are ideal for deep cavity machining, inclined surfaces, chamfering, and complex 3D contours.
From standard angle options such as 5 degree, 7 degree, 10 degree, and 12 degree taper end mill to customized geometries, each taper end mill cutter delivers consistent cutting performance across steel, stainless steel, aluminum, and hardened materials. These tools help reduce vibration, improve surface finish, and extend tool life in demanding machining environments.
Each HNCarbide taper end mill is manufactured from fine-grain solid carbide and ground on advanced 5-axis CNC machines to ensure precise geometry and reliable performance. The optimized flute design and reinforced core structure enhance rigidity, allowing stable cutting even at extended reach or increased cutting depths.
Available in both square and ball nose taper end mill configurations, our taper end mills support a wide range of end mill taper angle requirements. Strict inspection standards guarantee consistent diameter control, taper accuracy, and edge quality, making these taper end mills suitable for both roughing and finishing operations in precision CNC machining.
We Are Commited To Providing High-Quality, Customized solutions At An Affordable price While Also Prioritizing sustainability And ExcellentCustomer Service, These Qualities Make Us A Great choice For Your Taper End Mill Needs
We Only Use unground tungsten carbide rods with HlP sintering and100% virgin material. Our grade includes lsO K05 to K40, frommachining carbon steel to aluminium, non-ferrous metals andtitanium or we develop grade for your applications.
As a HNCarbide customer, you can enjoy five-axis high-precisiongrinding machines from Australia’s ANCA or Germany’s Walter. Themodern workshop with constant temperature and humidity ensuresthe accuracy of each Taper End Mill.
Each of your tungsten steel Taper End Mill will be sandblasted toeffectively remove burrs and improve the finish.
All HNCarbide’s Taper End Mill will be monitored on WALTER HELICHEEK and ZOLLER GENlUS 3 to ensure that every dimension is qualified. We arecommitted to controlling the tolerance within 3 UM.
At HNCarbide, every shipment is meticulously packaged to ensure your tools arrive intact.
Each HNCarbide Taper End Mill is individually placed in a shock-resistant protective case, labeled with complete specifications, and sealed in moisture-proof packaging material before being boxed.
Large-volume orders are reinforced with double-wall cardboard boxes or wooden crates to maximize safety during international shipping.
We collaborate with reliable logistics partners to ensure goods are delivered quickly and securely to their destination via air freight, sea freight, or express courier.
A taper end mill is mainly used for deep cavity machining, mold and die work, and angled or contoured surfaces. Compared with straight end mills, the tapered geometry increases core strength and rigidity, helping reduce chatter and tool deflection during long-reach or high-precision CNC machining.
Selecting the right end mill taper angle depends on cavity depth, wall clearance, and rigidity requirements.
3–5 degree taper end mill: best for deep, narrow cavities with limited clearance
7–10 degree taper end mill: balanced choice for general mold finishing and profiling
12–20 degree taper end mill: maximum rigidity for open features and heavier cutting
Always choose the smallest angle that still provides enough stiffness for your application.
A straight end mill has a constant diameter, while a taper end mill cutter gradually increases in diameter toward the shank. This taper design improves rigidity and vibration resistance, making taper end mills more suitable for deep cavities and long tool overhangs.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
A taper end mill is one of the most practical tools for mold making, deep cavity machining, and complex contour work—especially when tool rigidity, reach, and profile accuracy matter more than anything else. Compared with a straight end mill, a taper design increases core strength as the tool moves toward the shank, helping reduce chatter and improving stability in long-reach or thin-wall applications.
In this guide, you’ll learn how to select the right end mill taper angle, when to use common options like a 10 degree taper end mill or 7 degree taper end mill, and where special designs such as reverse taper end mill and back taper end mill make a difference. We’ll also cover when a taper ball nose end mill (also called a ball nose taper end mill) is the better choice for finishing 3D surfaces.
A taper end mill cutter is an end mill with a gradually changing diameter along the cutting length. The taper strengthens the tool body and helps keep the cutting edge stable at longer stick-out lengths. This matters in operations such as:
Deep cavity machining in molds and dies
Sidewall finishing where deflection causes taper errors
Machining angled features without excessive tool tilt
Reducing vibration in tough steels and stainless steels
Improving surface finish when long reach is unavoidable
In real production, a taper tool often “feels” more stable than a straight tool at the same reach. That stability translates to fewer marks, better size control, and less risk of edge chipping.
The key selection factor is the end mill taper angle. In most catalogs, taper angle is given in degrees (per side, in many cases) and the most common options include 3 degree taper end mill, 5 degree taper end mill, 7 degree taper end mill, 10 degree taper end mill, 12 degree taper end mill, 15 degree taper end mill, and 20 degree taper end mill.
Smaller angles (3°–5°): better for reaching deep features while keeping the tool close to the wall.
Medium angles (7°–12°): a strong “all-around” choice for cavity walls, ribs, and general mold finishing.
Larger angles (15°–20°): maximum rigidity, better for roughing/semifinishing and wide open geometry, but less clearance near walls.
When the cavity is deep and clearance is tight, you usually want a 3 degree taper end mill or 5 degree taper end mill. The small taper reduces the risk of side rubbing and lets you finish deep walls without the tool body contacting the surface.
Best for:
Tall ribs, narrow slots, deep pockets
Features where wall clearance is limited
Finishing operations requiring minimal tool body interference
If you are looking for a stable, versatile option, a 7 degree taper end mill or 10 degree taper end mill is often a great starting point. These angles increase stiffness significantly while still keeping reasonable clearance in many cavities.
Best for:
Semi-finish and finish of cavity walls
Contour machining and profiles
Reduced chatter in longer reach setups
A 12 degree taper end mill or 15 degree taper end mill is typically used when rigidity is a priority and the cavity geometry allows it. You’ll often see these angles in applications where you want higher feed, better stability, and longer tool life.
Best for:
Semi-finishing with heavier chip loads
Tough materials where chatter is a risk
Shorter reach but higher cutting demand
A 20 degree taper end mill provides strong tool support and excels in more open features or situations where the tool can be kept relatively short. It can be a very effective option for strong cutting with minimal vibration.
Best for:
Open pockets and wide wall features
Rigid machines and stable setups
Faster rough/semifinish passes

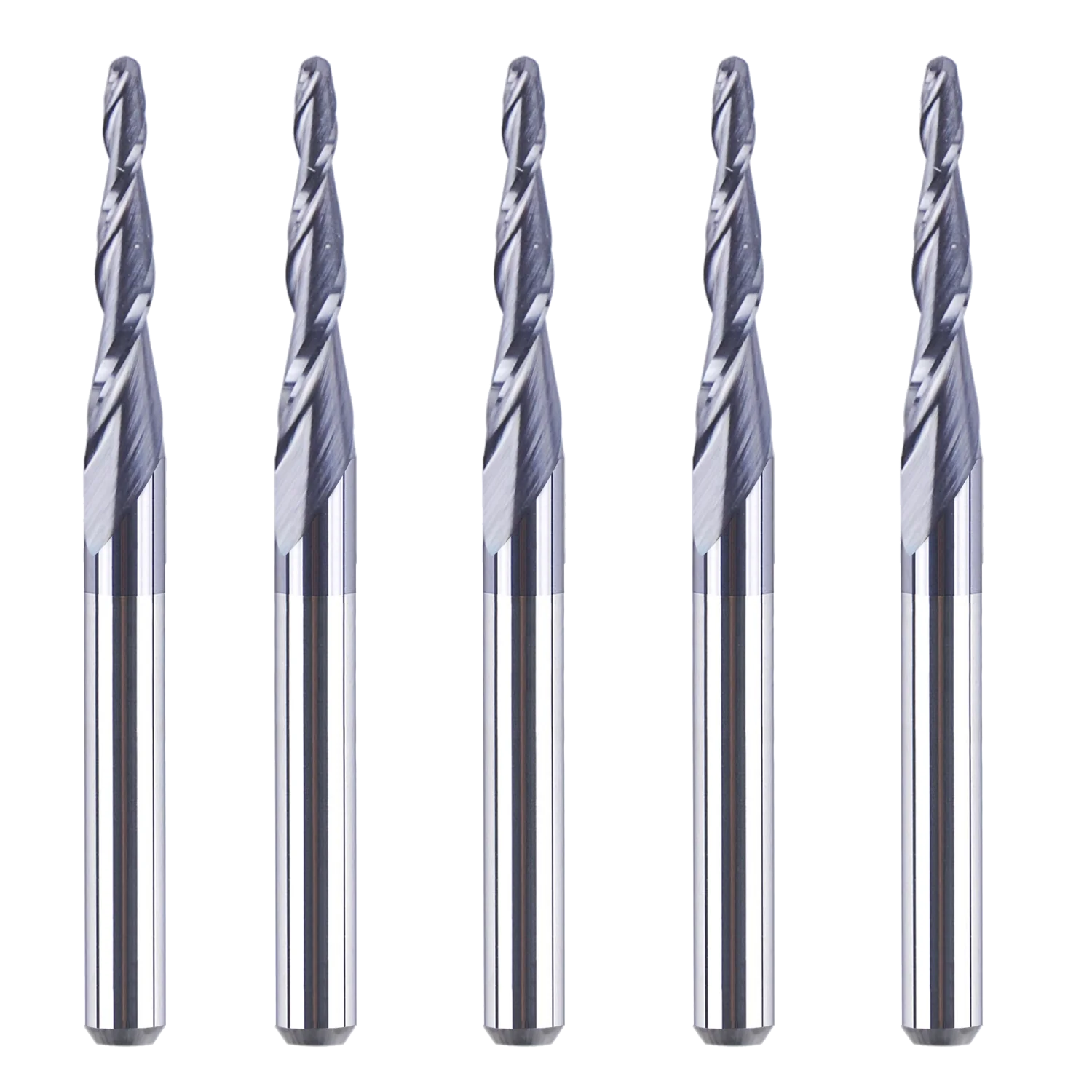

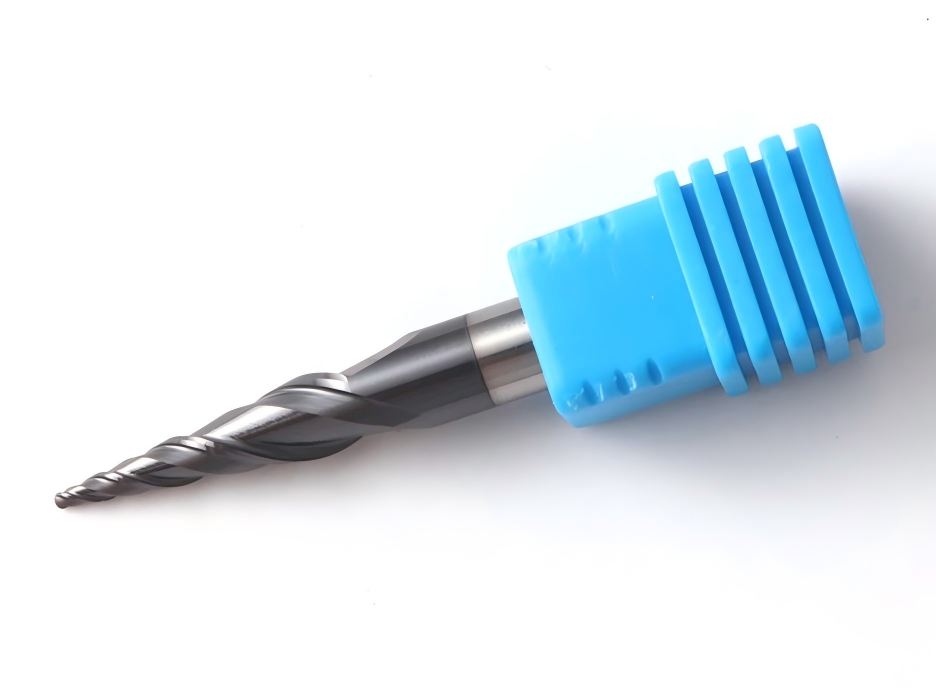

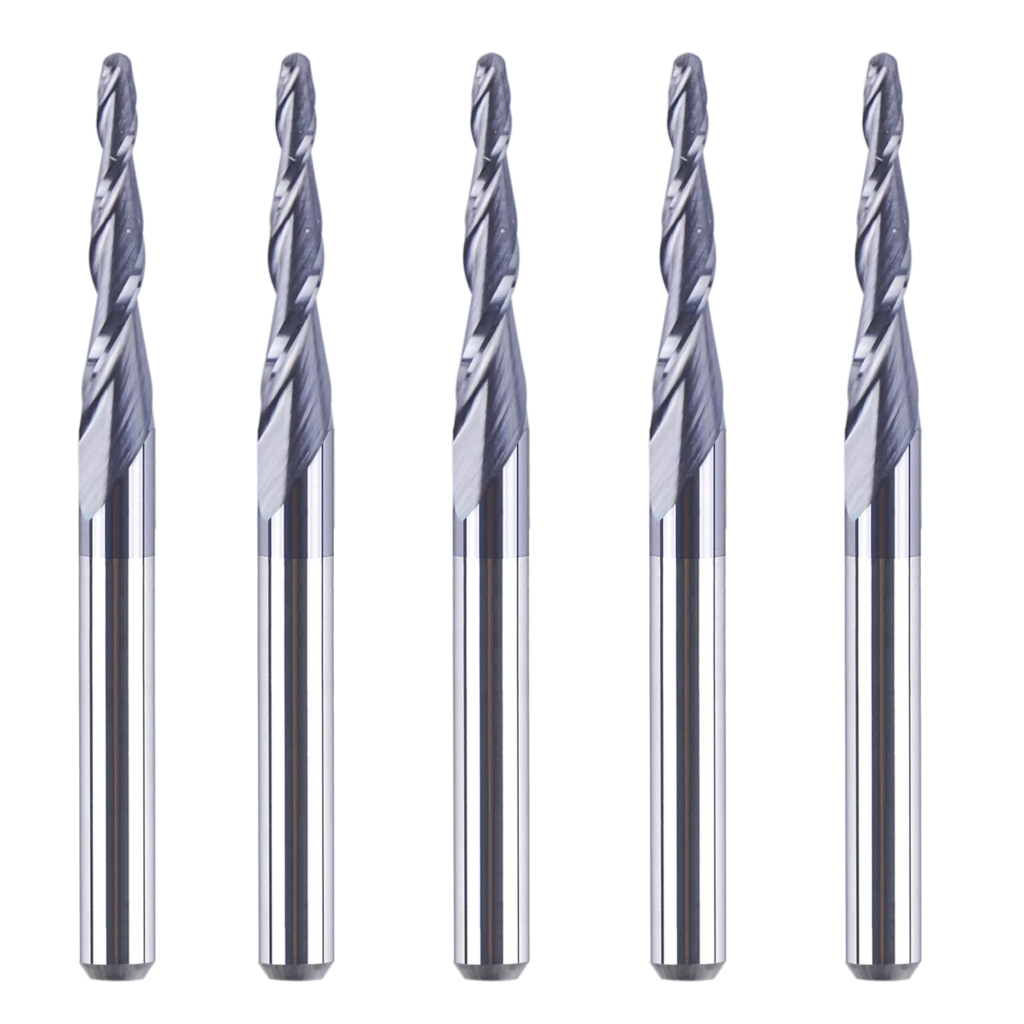

A taper ball nose end mill (also written as ball nose taper end mill) is the tool of choice for 3D surfaces, fillets, and smooth blending—especially in mold making. The ball nose tip avoids sharp transitions and is excellent for finishing freeform geometry.
Choose a taper ball nose end mill when you need:
Smooth finishing on 3D contours
Better surface quality on sculpted features
Reduced “step” marks between toolpaths
More stable long-reach finishing than a straight ball nose tool
A common approach is: use a taper square tool for wall control and semi-finishing, then switch to a taper ball nose tool for final 3D finishing.
A reverse taper end mill features a geometry where the body provides extra clearance away from the cutting zone. This can help reduce rubbing in certain deep-wall finishing jobs and improve surface finish when clearance is tight.
A back taper end mill typically has a slight relief along the tool body to prevent contact with the workpiece wall. It’s useful when long reach is needed and wall rubbing becomes a problem.
A taper shank end mill refers to tools that use a tapered shank for mounting, which can offer strong clamping in some setups. In practical CNC shops, taper shank tools are common where specific holders or machine interfaces are used.
You may see terms like morse taper end mill, morse taper end mill holder, or 2 morse taper end mill holder. These refer to tooling systems based on Morse taper standards, typically used in certain machines, drilling/milling setups, or specific adapter requirements.
If your process involves Morse taper tooling, the important point is that the holder and taper interface must be stable and properly seated. Poor seating or contamination can introduce runout, which is especially harmful for long-reach taper tools.
Before you choose a taper end mill, confirm these points:
Target geometry and clearance
If walls are close, start with 3 degree or 5 degree taper end mill.
Reach vs rigidity
The longer the reach, the more you benefit from taper stiffness—consider 7 degree or 10 degree taper end mill for general stability.
Surface finish requirement
For sculpted surfaces, plan a finishing step with a taper ball nose end mill.
Material and cutting conditions
Stainless steel and hardened steels demand stability—often 10–15 degree tools perform better if clearance allows.
Holder and setup
Minimize stick-out, ensure correct holder selection, and verify runout. Even the best taper end mill cutter cannot perform well with poor toolholding.
Selecting the right taper end mill is mainly about matching the end mill taper angle to your geometry, reach, and stability needs. Small angles like 3 degree and 5 degree taper end mill excel in deep, tight cavities. Mid-range options such as 7 degree and 10 degree taper end mill work well for general mold finishing. Larger angles like 12 degree, 15 degree, and 20 degree taper end mill deliver maximum rigidity when clearance permits. For 3D finishing and smooth blending, a taper ball nose end mill is often the most reliable choice.
