Unequal helix geometry to suppress vibration and reduce chatter
4-flute design for optimized chip removal and stable cutting
Square-end profile for precise slotting and contour milling
HB shank (Weldon shank) for secure clamping and torque stability
Solid carbide construction for high wear and heat resistance
Complies with DIN standard dimensions
Tool data
Description

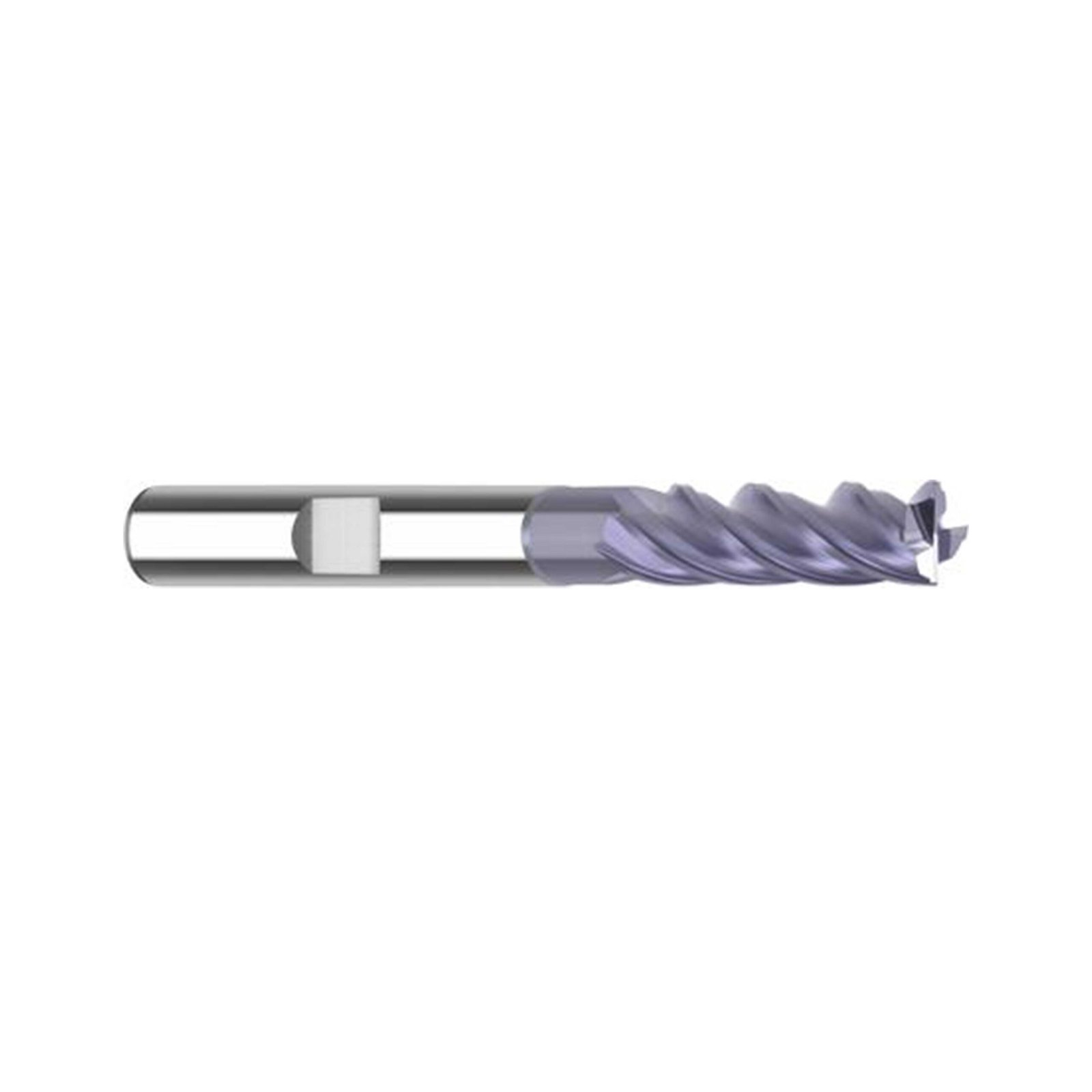

This GP square end mill is specifically engineered for high-efficiency machining of stainless steel and difficult-to-machine alloys. Featuring an unequal helix design, it effectively reduces vibration and minimizes chatter, delivering improved surface finish and dimensional accuracy.
The 4-flute geometry provides a balanced combination of strength and chip evacuation, while the robust HB shank (Weldon shank) ensures secure clamping and high torque resistance during demanding operations. Manufactured from premium solid carbide, this tool is ideal for precision and productivity in CNC milling.
1.Optimized for stainless steel and nickel-based alloys
2.Suitable for aerospace, medical device, and general engineering components
3.Ideal for slotting, contouring, and finishing in high-speed CNC operations
4.Recommended for setups requiring low-vibration cutting performance

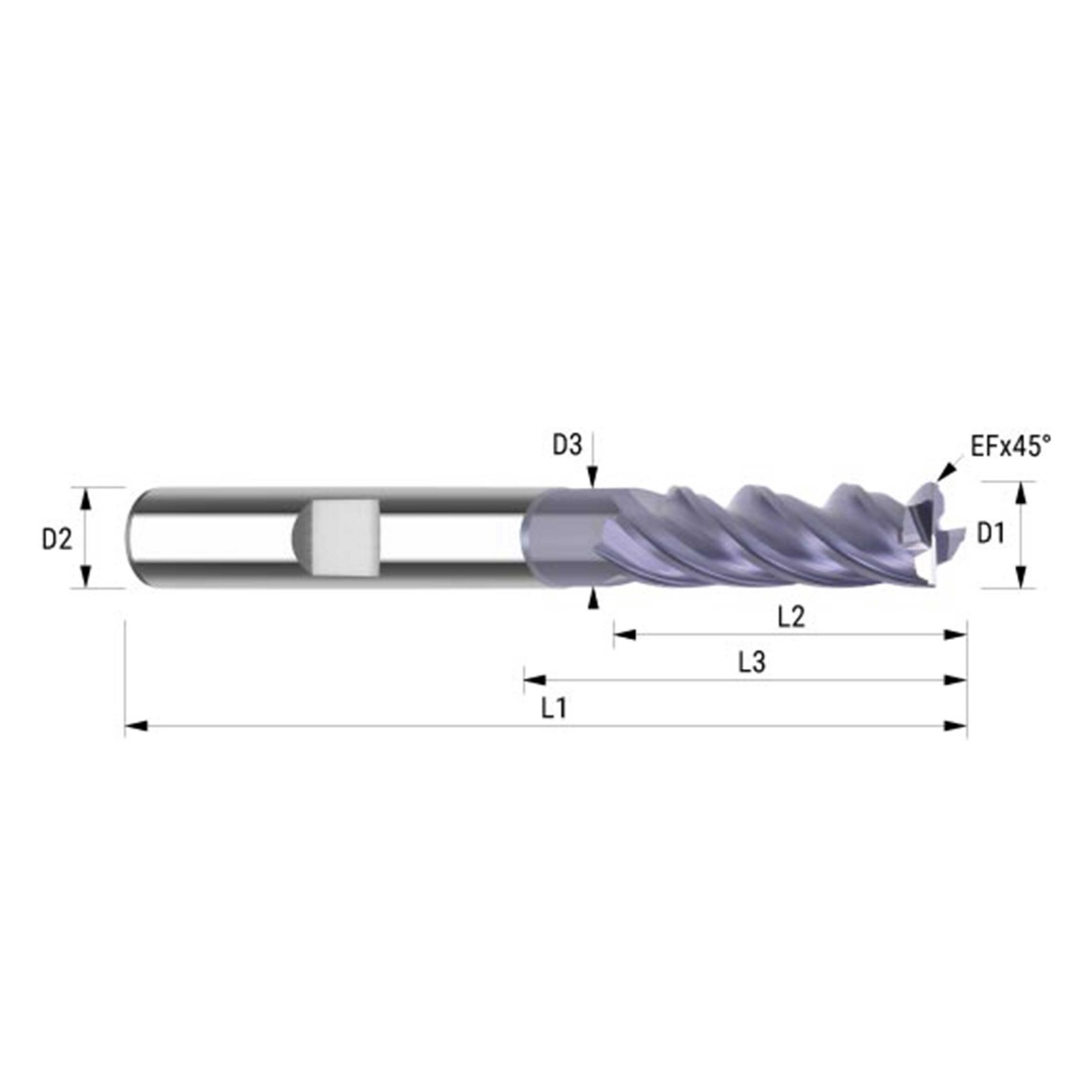

| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4963 | DGSS-030HB | ALCRN | Square End Mill | GU20F | 3x8xH18x6x57xZ4xC0.13 |
| XD4964 | DGSS-040HB | ALCRN | Square End Mill | GU20F | 4x11xH25x6x57xZ4xC0.2 |
| XD4965 | DGSS-050HB | ALCRN | Square End Mill | GU20F | 5x13xH25x6x57xZ4xC0.2 |
| XD4966 | DGSS-060HB | ALCRN | Square End Mill | GU20F | 6x13xH25x6x57xZ4xC0.2 |
| XD4967 | DGSS-080HB | ALCRN | Square End Mill | GU20F | 8x19xH30x8x63xZ4xC0.3 |
| XD4968 | DGSS-100HB | ALCRN | Square End Mill | GU20F | 10x22xH35x10x72xZ4xC0.3 |
| XD4969 | DGSS-120HB | ALCRN | Square End Mill | GU20F | 12x26xH40x12x83xZ4xC0.3 |
| XD4970 | DGSS-140HB | ALCRN | Square End Mill | GU20F | 14x26xH42x14x83xZ4xC0.3 |
| XD4971 | DGSS-160HB | ALCRN | Square End Mill | GU20F | 16x32xH44x16x92xZ4xC0.3 |
| XD4972 | DGSS-180HB | ALCRN | Square End Mill | GU20F | 18x32xH50x18x92xZ4xC0.4 |
| XD4973 | DGSS-200HB | ALCRN | Square End Mill | GU20F | 20x38xH54x20x104xZ4xC0.4 |
Unequal helix design to minimize vibration and improve stability
4-flute geometry for smooth cutting and reliable chip removal
Square-end profile for accurate slotting and contour milling
HA straight shank for excellent concentricity and secure clamping
Solid carbide construction for wear resistance and thermal stability
Manufactured to DIN standard tolerances
Tool data
Description
This GP square end mill is specially designed for efficient machining of stainless steel and other challenging alloys. The advanced unequal helix geometry significantly reduces vibration and cutting chatter, resulting in excellent surface finish and dimensional precision.
With a 4-flute configuration, this cutter ensures a balance of strength and effective chip evacuation during high-speed milling. The HA shank (straight shank) provides superior concentricity and is ideal for precision tool holders, such as collet chucks and shrink-fit holders. Made from premium solid carbide, this tool delivers consistent performance in demanding production environments.
1.Optimized for stainless steel and heat-resistant alloys
2.Used in aerospace, medical, mold & die, and precision engineering
3.Suitable for slotting, profiling, and finishing operations
4.Ideal for high-speed CNC machining centers requiring reduced chatter
| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4974 | DGSS-030HA | ALCRN | Square End Mill | GU20F | 3x8xH18x6x57xZ4xC0.13 |
| XD4975 | DGSS-040HA | ALCRN | Square End Mill | GU20F | 4x11xH25x6x57xZ4xC0.2 |
| XD4976 | DGSS-050HA | ALCRN | Square End Mill | GU20F | 5x13xH25x6x57xZ4xC0.2 |
| XD4977 | DGSS-060HA | ALCRN | Square End Mill | GU20F | 6x13xH25x6x57xZ4xC0.2 |
| XD4978 | DGSS-080HA | ALCRN | Square End Mill | GU20F | 8x19xH30x8x63xZ4xC0.3 |
| XD4979 | DGSS-100HA | ALCRN | Square End Mill | GU20F | 10x22xH35x10x72xZ4xC0.3 |
| XD4980 | DGSS-120HA | ALCRN | Square End Mill | GU20F | 12x26xH40x12x83xZ4xC0.3 |
| XD4981 | DGSS-140HA | ALCRN | Square End Mill | GU20F | 14x26xH42x14x83xZ4xC0.3 |
| XD4982 | DGSS-160HA | ALCRN | Square End Mill | GU20F | 16x32xH44x16x92xZ4xC0.3 |
| XD4983 | DGSS-180HA | ALCRN | Square End Mill | GU20F | 18x32xH50x18x92xZ4xC0.4 |
| XD4984 | DGSS-200HA | ALCRN | Square End Mill | GU20F | 20x38xH54x20x104xZ4xC0.4 |
