Double-core geometry enhances rigidity and improves chip evacuation
Square-end profile for precise slotting and contour milling
4-flute design for smooth cutting and efficient material removal

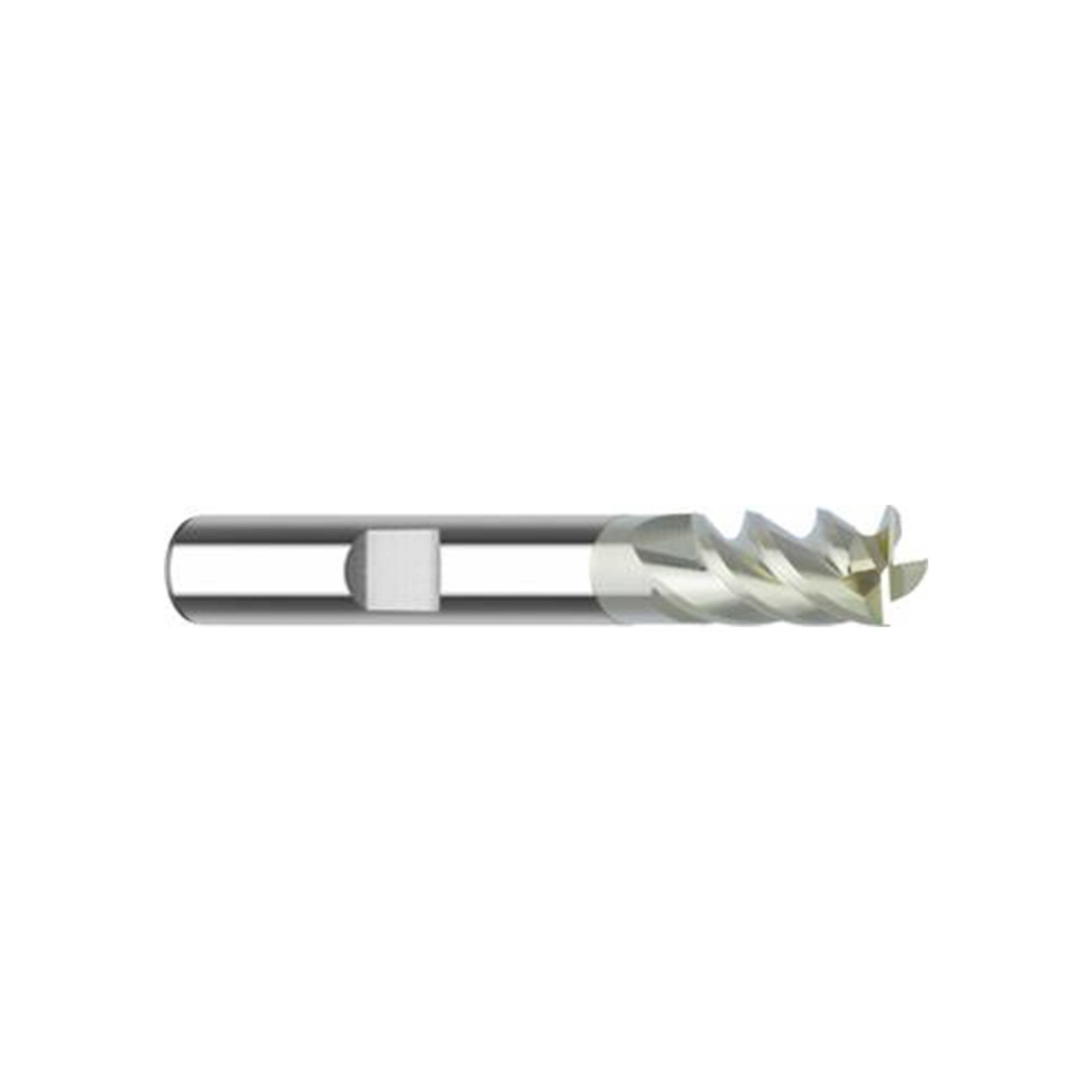

HB shank (Weldon shank) for stable clamping and torque resistance
High-quality solid carbide construction for long tool life
Ideal for high-performance cutting (HPC) applications
Tool data
Description
This HPC solid carbide end mill features a square-end profile and a reinforced double-core geometry, engineered for excellent stability and productivity in demanding machining environments. The 4-flute design provides an optimal balance between chip evacuation and tool rigidity, making it suitable for both roughing and finishing.
With a robust HB shank (Weldon shank), this end mill ensures secure clamping and high torque resistance, even under heavy load conditions. Manufactured from premium solid carbide, it delivers reliable performance when machining alloy steels, stainless steels, and tool steels at high speeds.
1.Suitable for alloy steel, stainless steel, tool steel, and hardened materials
2.Used in mold making, aerospace, automotive, and general machining
3.Perfect for slotting, contouring, roughing, and finishing operations
4.Compatible with CNC machining centers and high-speed milling machines
| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4985 | DHPC-030HB | ALCRN | Square End Mill | AF308 | 3x8xH18x6x57xZ4xC0.13 |
| XD4986 | DHPC-040HB | ALCRN | Square End Mill | AF308 | 4x11xH21x6x57xZ4xC0.13 |
| XD4987 | DHPC-050HB | ALCRN | Square End Mill | AF308 | 5x13xH21x6x57xZ4xC0.2 |
| XD4988 | DHPC-060HB | ALCRN | Square End Mill | AF308 | 6x13xH21x6x57xZ4xC0.2 |
| XD4989 | DHPC-080HB | ALCRN | Square End Mill | AF308 | 8x19xH27x8x63xZ4xC0.2 |
| XD4990 | DHPC-080HB-L | ALCRN | Square End Mill | AF308 | 8x19xH42x8x80xZ4xC0.2 |
| XD4991 | DHPC-100HB | ALCRN | Square End Mill | AF308 | 10x22xH32x10x72xZ4xC0.2 |
| XD4992 | DHPC-100HB-L | ALCRN | Square End Mill | AF308 | 10x22xH52x10x95xZ4xC0.2 |
| XD4993 | DHPC-120HB | ALCRN | Square End Mill | AF308 | 12x26xH38x12x83xZ4xC0.3 |
| XD4994 | DHPC-120HB-L | ALCRN | Square End Mill | AF308 | 12x26xH62x12x110xZ4xC0.3 |
| XD4995 | DHPC-160HB | ALCRN | Square End Mill | AF308 | 16x40xH50x16x92xZ4xC0.3 |
| XD4996 | DHPC-200HB | ALCRN | Square End Mill | AF308 | 20x50xH60x20x104xZ4xC0.4 |
Double-core geometry for enhanced rigidity and chip control
Square-end profile for accurate slotting and contouring
4-flute design balances strength and efficient chip removal
HA straight shank for high concentricity and precision clamping
Solid carbide construction for excellent wear and heat resistance
Optimized for HPC (High Performance Cutting) conditions
Tool data
Description
Description
This HPC solid carbide end mill combines a square-end geometry with a robust double-core design, delivering outstanding stability and efficiency in high-speed machining. The 4-flute configuration ensures smooth cutting action, excellent chip evacuation, and reliable performance across a wide range of materials.
Featuring a HA shank (straight shank), this tool offers exceptional concentricity and is ideal for precision tool holders such as collets and shrink-fit chucks. Manufactured from premium solid carbide, it is well-suited for demanding applications in alloy steel, stainless steel, and hardened materials.
1.Suitable for tool steel, stainless steel, alloy steel, and hardened materials
2.Used in mold & die, aerospace, automotive, and precision machining
3.Ideal for slotting, profiling, roughing, and finishing
4.Compatible with CNC machining centers and high-speed milling operations

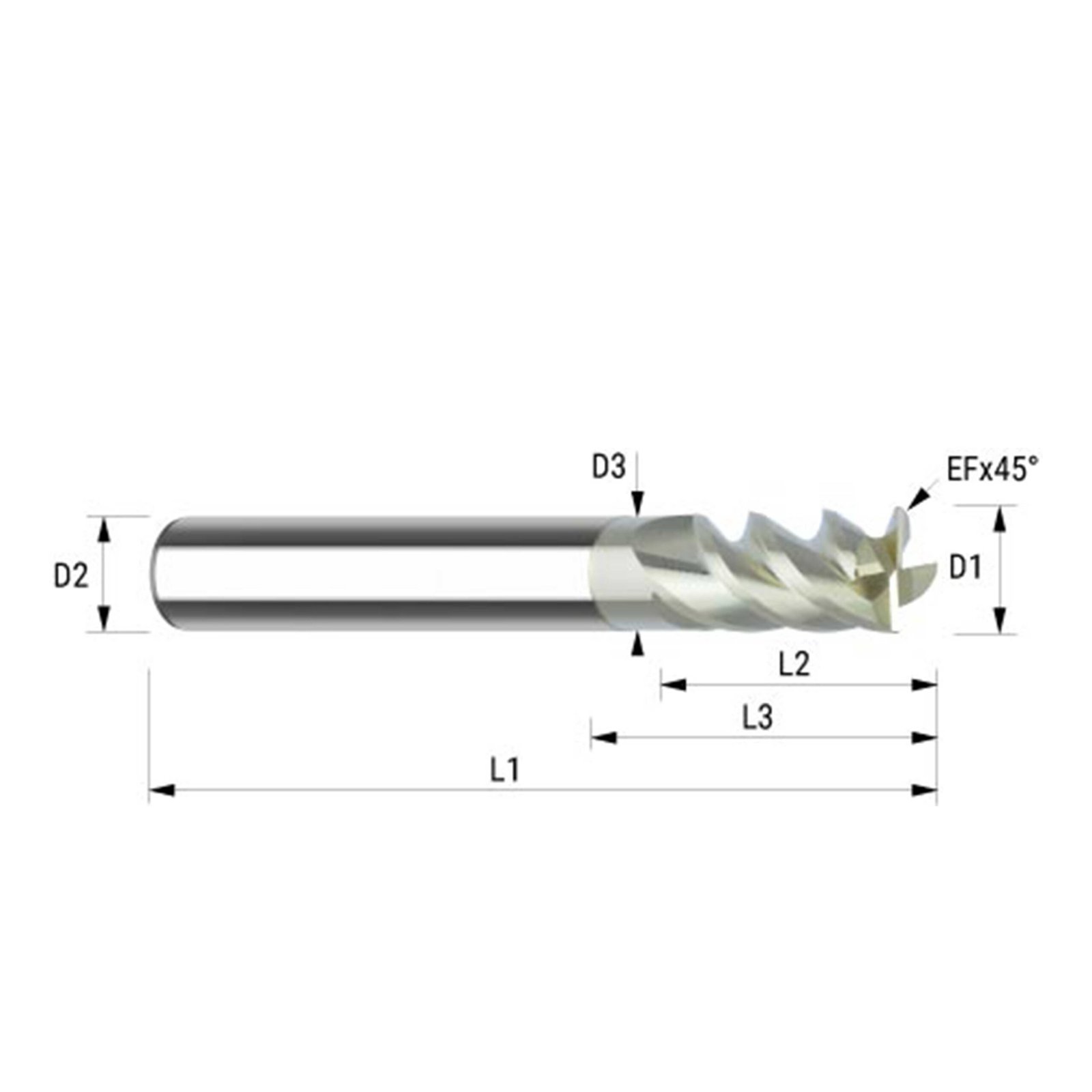

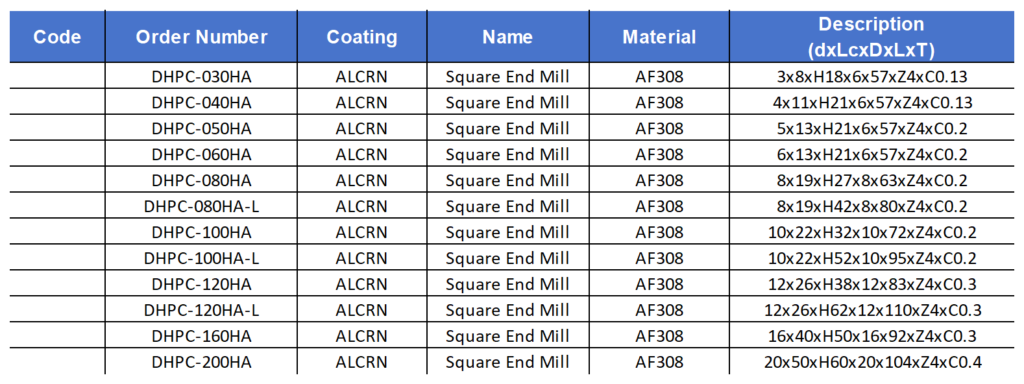

| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4997 | DHPC-030HA | ALCRN | Square End Mill | AF308 | 3x8xH18x6x57xZ4xC0.13 |
| XD4998 | DHPC-040HA | ALCRN | Square End Mill | AF308 | 4x11xH21x6x57xZ4xC0.13 |
| XD4999 | DHPC-050HA | ALCRN | Square End Mill | AF308 | 5x13xH21x6x57xZ4xC0.2 |
| XD5000 | DHPC-060HA | ALCRN | Square End Mill | AF308 | 6x13xH21x6x57xZ4xC0.2 |
| XD5001 | DHPC-080HA | ALCRN | Square End Mill | AF308 | 8x19xH27x8x63xZ4xC0.2 |
| XD5002 | DHPC-080HA-L | ALCRN | Square End Mill | AF308 | 8x19xH42x8x80xZ4xC0.2 |
| XD5003 | DHPC-100HA | ALCRN | Square End Mill | AF308 | 10x22xH32x10x72xZ4xC0.2 |
| XD5004 | DHPC-100HA-L | ALCRN | Square End Mill | AF308 | 10x22xH52x10x95xZ4xC0.2 |
| XD5005 | DHPC-120HA | ALCRN | Square End Mill | AF308 | 12x26xH38x12x83xZ4xC0.3 |
| XD5006 | DHPC-120HA-L | ALCRN | Square End Mill | AF308 | 12x26xH62x12x110xZ4xC0.3 |
| XD5007 | DHPC-160HA | ALCRN | Square End Mill | AF308 | 16x40xH50x16x92xZ4xC0.3 |
| XD5008 | DHPC-200HA | ALCRN | Square End Mill | AF308 | 20x50xH60x20x104xZ4xC0.4 |
