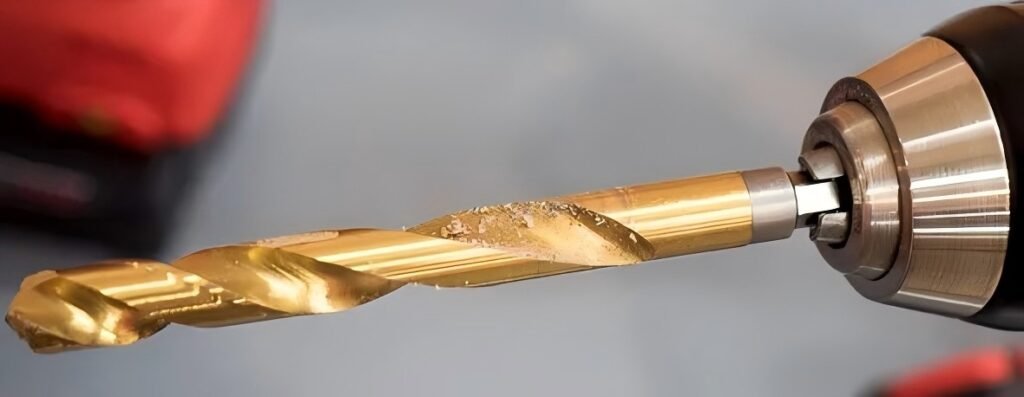

Solid Carbide Drill Bits, Industrial-Grade Explained
Table of Contents
Industrial grade isn’t a sticker—it’s a set of controllable, repeatable specs that show up in hole size, tool life, and how predictable the drill feels at the spindle. If you’re buying solid carbide drill bits for metalworking, the most reliable way to judge “industrial grade” is to evaluate what the manufacturer can measure, control, and trace—not what they claim.
This guide breaks down the seven quality pillars that define industrial-grade solid carbide drill bits: substrate, grind consistency, edge prep, runout/straightness, coating control, inspection discipline, and traceability.
Carbide substrate: what matters beyond “tungsten carbide”
Two drills can both be called “carbide” and still behave completely differently. Industrial-grade solid carbide drill bits start with a substrate engineered for drilling: a balance of hardness, hot strength, and fracture toughness—then held consistent lot to lot.
Grain structure (concept level, but measurable outcomes)
In cemented carbide, WC grain size strongly influences behavior: finer grain typically increases hardness/wear resistance, while coarser grain tends to improve toughness (shock resistance). Industrial tool carbides commonly sit in micro-/ultra-fine grain ranges (roughly ~0.2–0.8 μm) depending on the application and binder system.
Toughness vs wear: the drilling trade
Drilling is punishing because it’s a continuous cut under heat, with limited chip space and high sensitivity to vibration and runout. Substrate choices usually fall into two practical “families”:
- Tougher grades(more forgiving): better for interrupted entry, less rigid machines, or higher runout environments.
- Harder/wear-focused grades: better for stable setups and abrasive materials—but can chip earlier if runout or vibration is present.
What industrial suppliers do differently: they don’t just “buy carbide.” They standardize a grade recipe (grain + binder + sintering window) and keep it stable across production, so geometry and coating can do their job consistently.
Substrate indicators you can actually validate
What you’re checking | Why it matters in drilling | What “industrial grade” looks like in practice |
Grade positioning (tough vs wear) | Prevents edge chipping vs premature wear | Supplier can explain which series targets steel/stainless/hardened and why (not generic claims) |
Consistency across batches | Predictable tool life + hole size | Same series behaves the same month after month; rejects don’t spike |
Application matching | Avoids “one-grade-fits-all” | Different series (or geometries) for steel vs stainless vs hardened |
Grinding quality: geometry consistency is performance
Grinding is where “industrial grade” becomes obvious—because drilling depends on symmetry and repeatability more than most buyers realize.
Point symmetry (the hole starts here)
If the point is not symmetric, one cutting lip does more work. That increases heat, enlarges hole size, and accelerates wear on one edge. The result: a drill that sounds wrong and dies early.
Flute form (chip control is geometry)
Industrial-grade flute grinding produces consistent flute volume, helix stability, and surface quality. This directly affects:
- chip evacuation (especially in deeper holes)
- heat management
- the tendency to “pack chips” and snap
Margin & core consistency (stability under load)
The margin guides the drill and stabilizes the hole. The core supports torsional strength. Variability here shows up as:
- inconsistent hole finish
- wandering at entry
- sudden breakage when the chip load spikes
Industrial reality: a good drill is boring—because it behaves the same every time.
Edge prep: too sharp vs too strong
A perfectly sharp edge can be fragile; a strengthened edge can be stable but might push heat if overdone. Industrial-grade solid carbide drill bits use a controlled edge prep strategy (micro-hone, edge rounding, or targeted reinforcement) designed around the material class.
- Too sharp→ micro-chipping, especially with runout or interrupted entry
- Too strong (over-honed)→ more thrust, more heat, more work hardening in stainless, more burr risk
The key isn’t which edge prep you choose—it’s whether the supplier can hold it consistently per series.
Runout & straightness: the invisible quality spec
If you want one “tell” that separates industrial-grade solid carbide drill bits from general-purpose drills, it’s runout control.
Why runout matters so much
Runout makes one lip cut more than the other. That increases localized wear and creates oversized or tapered holes. Multiple machining sources emphasize that solid carbide drills are highly sensitive to runout; one study summary reported tripled tool life when runout improved from 0.0006″ to 0.00008″ in a solid-carbide drill test.
Practical guidance for solid-carbide drilling commonly targets very low runout—for example, 0.0002″ TIR (or less) as acceptable for most solid-carbide drill applications.
Runout: what it causes on the shop floor
What you see | Likely runout-driven mechanism | What changes when runout improves |
Oversized holes | One lip cuts heavy, one rubs | Hole size tightens; less correction needed |
Short tool life | Uneven wear + heat concentration | More uniform wear; life becomes predictable |
Chatter / squeal | Forced imbalance and vibration | Cleaner sound, better finish, fewer breaks |
Poor positional accuracy | Drill “walks” on entry | Better spot consistency and straighter holes |
Industrial grade isn’t “low runout once.” It’s low runout as a process capability, with a defined measurement method (gauge length, holder type, where measured) and a corrective loop when it drifts.
Coatings: what industrial suppliers control tightly
Coating quality isn’t just “which coating name.” Industrial performance comes from tight control of:
- adhesion consistency (won’t peel under heat)
- thickness control (keeps edges sharp and cutting)
- repeatability (same series behaves the same)
Thickness matters more than most buyers expect
PVD coatings for cutting tools are often applied in the low-micron range—commonly around ~3 μm in many tool-coating discussions—because thicker layers can round edges and change geometry.
Published studies also show typical PVD thickness values in the same ballpark (around ~3–4 μm in specific AlCrN examples).
Coating family differences (real, measurable properties)
In comparative research, TiAlN and AlCrN coatings are often both high-hardness choices, with reported hardness differences (AlCrN frequently higher in some studies), which can translate into wear/heat handling differences depending on the cut.
Coating control checklist (what “industrial grade” should include)
Coating control item | What it prevents | What you can ask for |
Thickness target + tolerance | Dulling edges, inconsistent cutting | “What is your coating thickness target (μm) and tolerance by series?” |
Adhesion validation | Peeling / flaking | “How do you verify adhesion consistency across batches?” |
Lot-to-lot repeatability | “Same SKU, different behavior” | “Show coating inspection records for recent lots” |
Series-specific matching | Wrong coating for the job | “Which coating for steel vs stainless vs hardened, and why?” |
Inspection & traceability: what “real QC” looks like
Industrial grade is fundamentally a quality system outcome: the factory can detect drift early, quarantine risk, and trace failures back to a specific lot and process condition.
Lot tracking and objective evidence
Modern ISO 9001 guidance emphasizes retaining documented information as objective evidence that processes are carried out as planned—this is the foundation of credible inspection, traceability, and corrective action systems.
What real QC tends to include for solid carbide drills
For solid carbide drill bits, industrial suppliers typically treat these as non-negotiable controls:
- Incoming material control(substrate lot identification)
- In-process geometry checks(point angle/symmetry, web, margin, OD)
- Runout / straightness verification(defined method, not vague numbers)
- Coating inspection(thickness or proxy controls, batch records)
- Final sampling disciplinewith clear acceptance criteria
- Complaint loop(8D / CAPA style): containment → root cause → corrective action → prevention
Industrial grade vs “general purpose” drills: what you should pay for
You’re not paying for “carbide.” You’re paying for predictability.
Pay for industrial grade when you need:
- consistent hole size without constant offsets
- predictable tool life (planning tool changes, quoting jobs)
- stable performance across different lots and time
General purpose can be fine when:
- tolerances are loose
- duty cycle is light
- you accept variability and manage it with conservative parameters
Buying checklist
Use this as a practical filter when comparing vendors:
1.Runout spec + method
Ask: What TIR do you guarantee, at what gauge length, and how do you measure it? (Solid carbide drilling commonly targets very low runout such as ~0.0002″ TIR.)
2.Geometry controls by series
Ask: What is inspected 100% vs sampled (OD, point symmetry, web thinning, margin)?
3.Edge prep standard
Ask: Do you use a defined micro-hone/edge prep standard per series, and how do you verify it stays consistent?
4.Coating thickness target
Ask: What thickness (μm) do you target, and what tolerance do you hold? (PVD often sits around ~3 μm; ask them to show their own target and records.)
5.Traceability proof
Ask: Show a recent batch record trail—substrate lot → grinding line → coating batch → final inspection.
6.Failure analysis capability
Ask: If a drill chips early, what data do you request and what’s your corrective process?
7.Consistency over claims
Ask for two different lots of the same SKU/series and compare runout, hole size, and life in your standard test.
FAQ
Are all solid carbide drill bits “industrial grade”?
No. “Solid carbide” only describes the construction. Industrial grade means the supplier can control runout, geometry, edge prep, coating, and inspection consistently—and prove it with records. Runout sensitivity is especially critical for solid carbide drills.
What runout is acceptable for solid carbide drilling?
Many practical machining references target very low runout; one guideline states 0.0002″ TIR or less is acceptable for most solid-carbide drill applications.
Does coating thickness really matter?
Yes. PVD coatings are often kept thin (commonly around a few microns) to preserve edge sharpness and geometry, and studies report thickness values around ~3–4 μm for certain coatings.
Is “micrograin carbide” always better?
Not automatically. Finer grain can increase hardness/wear resistance, but the drill also needs toughness. Many industrial carbides balance grain size and binder system to match drilling stresses.
How can I evaluate china solid carbide drill bits quickly without a lab?
Ask for runout method + batch records, then validate with a controlled trial: same holder, same gauge length, same material, same peck/coolant strategy—compare hole size consistency and wear pattern, not just “did it break.”
