Revolutionizing End Mill Performance: The Top 10 Brands Leading Coating Innovation
End mills are used in milling applications to remove material from a workpiece selectively. The performance of an end mill is heavily influenced by the material from which they are created and the coating on the end mill surfaces. It helps increase the tool life and reduce wear and tear while improving the overall efficiency of the cutting process. This article is all about why coatings are so crucial to end mills, the most common types of coatings available, the leading brands pushing innovation in coating technology and how to select the right end mill manufacturer for your shop based on coating. HNCarbide offers well-coated end mills, increasing their longevity and functionality. Keep reading to know more about it.
Why Are End Mill Coatings Important?
The importance of end mill coatings cannot be overstated as they provide several benefits that improve performance and extend tool life:
Enhanced Wear Resistance: Coatings are a defensive barrier against abrasion and wear caused by friction between the tool and the workpiece. They are instrumental in machining hard materials because they resist excessive tool degradation.
Reduced Friction: These coatings’ lower friction between the tool and workpiece allows smoother cutting . This leads to less heat generation and less wear and opens the door to higher manipulating speeds.
Improved Oxidation Resistance: The coatings also increase the tool’s resistance to oxidation at elevated temperatures. This is key when machining materials such as stainless steel or titanium, which require tools to endure the most brutal conditions.
In a word, coatings are a critical element in achieving performance, tool life, and efficiency. End mills would wear quickly and be much less effective if applicable coatings were not employed, as the cost of tools. The frequency of tool changes would drastically increase operational costs.
How Our Flat Roofs Overlap: Common Coatings & Applications
Coatings are an essential part of material-specific machining, and the right coating is necessary, depending on whether metal or plastic parts are being machined. Below are some of the more commonly used coatings for end mills:
TiN (Titanium Nitride)
Application: A purpose-based coating suitable for high-speed steel (HSS) tools
Advantages: TiN increases hardness and has good wear resistance, making it ideal for applications that do not produce too much heat or stress. It is commonly employed for softer materials and general machining operations.
Titanium Aluminum Nitride (TiAlN)
Application: Recommended for machining of hard materials like stainless steel and titanium.
Advantages: TiAlN is extremely heat resistant, allowing it to be used at higher speeds in materials sensitive to heat. The coating minimises frictminimizeincreases tool life in demanding applications.
DLC (Diamond-Like Carbon)
Application: Traditionally used for machining aluminium and at high speeds.
Advantage: DLC coatings offer an ultra-smooth surface, lowering friction and keeping material from collecting. These coatings are ideal for high-precision, smooth finishes, particularly when machining aluminium, which can produce built-up edges.
CVD Diamond Coating
Application: For machining ultra-hard materials like composite.
Advantages: CVD Diamond coatings’ extreme hardness makes them one of the most important coatings for machining composite materials, ceramics, and ultra-hard materials. Even in the most challenging cutting environments, they facilitate long tool life.
10 Best Brands at the Forefront of Coated End Mill Innovation
There are a few well-known names in end mill coating advancement. These brands focus on advanced coatings to prolong tool life, improve machining performance and lower costs. You must check other aspects, such as coating, to choose the best metal cutting tools. Here’s a look at some of the leading brands pushing innovation in the field:
Kennametal (USA)
Coating: KCPM15 (CVD PVD TiN-based coating).
Innovative Feature: Kennametal is known for its KCPM15 coating, which significantly improves wear resistance to enhance tool life. It is a great all-around coating for general-purpose machining.
Walter (Germany)
Coating: TiAlN + AlCrN Nanocomposite Coating.
Walter is a pioneer in advanced coatings. The TiAlN + AlCrN nanocomposite coating developed by this company increases the heat resistance of machine tools and optimizes performance. It focuses on fast machining complex materials such as stainless steel and titanium.
Mapal (Switzerland)
Coating: DLC-coated weapon
Innovation: Mapal is known for its DLC coating, which provides even, smooth finishes and lower friction. It is excellent for aluminium machining, with longer tool life and improved accuracy in high-speed applications.
Other Leading Brands
Seco Tools (USA) offers innovative coatings , such as TiAlN and AlTiN, that deliver superior performance in high-temperature applications.
Guhring (Germany) — In addition to TiN and TiAlN high-performance coatings for enhanced wear resistance and tool longevity for applications in precision machining, Guhring provides high-performance coatings.
Emuge-Franken (Germany): Offers TiAlN coatings designed for high-speed jobs with ferrous and non-ferrous materials.
OSG (Japan): AlCrN coating that offers heat resistance and prolongs the tool’s life while machining high-strength alloys.
Ceratizit (Luxembourg): Thanks to realistic designer DLC coatings, friction is reduced, and drive in high-precision operations improves drastically, especially in aluminium.
Tools (Japan): TiCN coatings focus on increasing wear resistance, ideal when machining extremely tough materials (e.g., stainless steel and hardened steel).

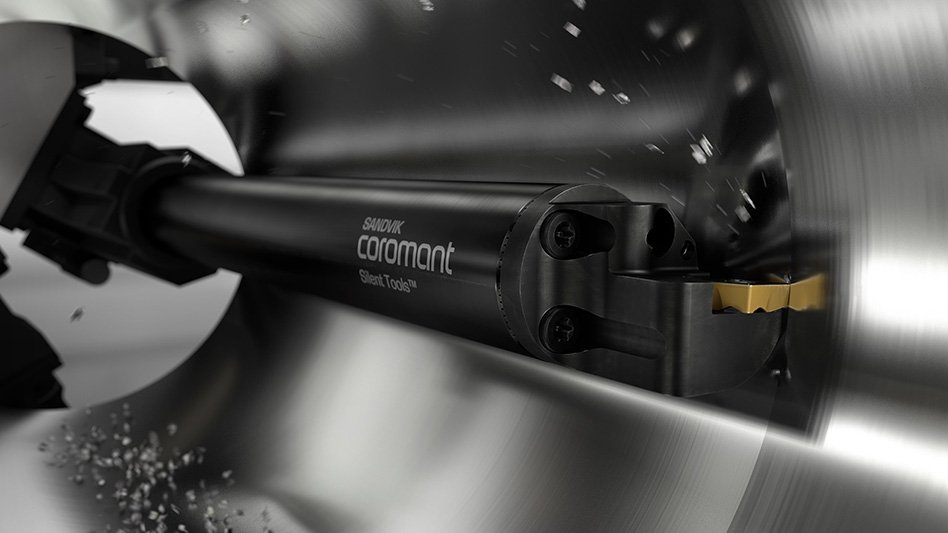

Sandvik Coromant (Sweden): Develop CVD coatings that target difficult-to-machine materials and extreme surface finish requirements.
What is the Method for Selecting a Coated End Mill?
The right coated end mill for your machining application is determined by combining the machined material, cutting environment, and expected tool life. To select the correct well-coated end mill, you need to focus on certain aspects.
Durability vs. Coating Thickness
Thicker coatings generally offer more excellent wear resistance but can dull the edge of the cutting surface. Thicker coatings, such as TiAlN, are also effective for more rigid materials or high-speed work, greatly extending tool life. TiN or similar such coatings may be preferable for applications requiring thinner coatings. From 1 4 end mill, ⅛ end mill to 1 ¼ end mill and two flute end mill, you can get everything under one roof that’s none other than HNCarbide.
Best Coatings for Various Materials
Hence, you need to use DLC or TiN coatings as they have low friction.
- Heat resistance and friction reduction on stainless steel and titanium coatings such as TiAlN or AlCrN.
- Convenient to hard metals or composite materials, CVD diamond coatings are the most effective solution, offering over-whelming hardness and high abrasion resistance.
- Selecting the optimal coating is the key to high-performance results and ensuring that your end mills run well for years.
Research and Development in Coating Technologies
Advanced coatings have a positive outlook in the future, as new theoretical coatings could arise in the machines due to the continuous development of materials science. Some trends to pay attention to:
Bio-inspired nano-coatings with adaptive properties
With the new research in the field of materials science, new nano-coatings are being developed that have self-adaptive properties and can respond according to the required changes in temperature, pressure, and other cutting conditions. The dynamic properties of these coatings also contribute to progressive wear resistance during machining.
Environmental Impact
Growing attention is being paid to making eco-friendly coatings with reduced environmental impact but equal performance. These include coatings that reduce the use of harmful chemicals or are entirely biodegradable.
Multi-Layer Coatings
Defining the future of high-end coatings would require multiple coatings, where multiple layers of coatings are used together to achieve desired performance. They are superior in wear resistance, heat resistance, and friction reduction, and they are best for extreme machining conditions.
Coating Type | Application | Key Benefits | Best For |
TiN (Titanium Nitride) | General-purpose HSS tools | Enhanced wear resistance, high hardness | Soft materials, general machining |
TiAlN (Titanium Aluminum Nitride | High-heat applications | High heat resistance, reduced friction | Stainless steel, titanium |
DLC (Diamond-Like Carbon) | Aluminum, high-speed machining | Low friction, smooth surface finish | Aluminum, high-speed operations |
CVD Diamond | Ultra-hard materials, composites
| Extreme hardness, abrasion resistance | Composite materials, hard metals |
AlCrN (Aluminum Chromium Nitride) | High-temperature, high-performance | Excellent heat resistance, enhanced toughness | Tough alloys, high-speed cutting |
How to Select a Suitable Coated End Mill?
Optimising PeOptimisingwith Coated End Mills for Specific Applications Optimising is never a one-size-fits-all solution, as it depends heavily on the coating type, the material to be machined, cutting parameters, and the tool performance you want to achieve.
Durability vs Coating Thickness
Thicker Coating: Coatings such as TiAlN are intended for when you need maximum protection from high temperatures and heavy wear. The larger the insulation potentiation, the superior the protection against oxidation and wear. However, that compromises the sharpness of the cutting edge, which can affect your machining precision. Thicker coatings are appropriate for high-heat applications where wear resistance is essential.
Thinner Coatings—Coatings such as TiN and DLC are normally thinner, which allows for a much finer cutting edge, which allows for more precision. These coatings offer excellent lubrication and minimize friction, making them ideal for machining softer materials or operations requiring high accuracy. Although they do not provide the extreme wear characteristics of thicker deposits, they are typically better for precision work.
Material Considerations
Coatings are engineered for a material to represent the best performance. The trick is to match the coating to the material being machined:
For Aluminium: Steering to the softer characteristic of Aluminium, DLC or TiN can be used as a suitable coating due to their lesser friction properties. These coatings inhibit the build-up of the material, reducing the amount of heat accumulated and improving surface finish.
For Stainless Steel, High heat endurance is essential. Coatings like TiAlN or AlCrN are the best options, as they can withstand the elevated operating temperatures encountered during cutting processes.
For Titanium: Titanium can be difficult to machine due to high cutting temperatures, so TiAlN or CVD diamond would be the proper coatings for their temperature resistance and wear protection.
Choosing the proper coating for your material will allow you to maximise your cutting performance, tool life and overall machining efficiency.”
Finishing Trends by Technology
End mill coatings have a bright future ahead. Here’s a list of future trends in coating technology that are set to dominate the machining industry:
Self-Adaptable Nano-Coatings
One of the most exciting developments in coatings is the creation of self-adaptive nano-coatings—advanced, dynamically responsive coatings for the cutting environment. For example, the coating can change its hardness or lubricity depending on the temperature or cutting pressure it is under. Such adaptability could rapidly enhance tool life and performance in many industries with diverse machining conditions.
They could also eliminate the need for tool refreshes every few minutes, allowing for more continuous processes and reduced overall costs. Machining will have revolutionary healing properties—coatings that repair themselves during machining.
Eco-Friendly Coatings
Sustainability in the machining industry is gaining importance, and coatings are no exception. Developing Paths to Greener Dechlorinated Coatings: These types of coatings intend to reduce the reliance on toxic material and provide sustainable options that maintain performance. Environmental regulation, as well as an increasing consumer and industrial desire to minimize theiminimizenmental impact, is fostered by this.
The Ultimate in Protection — Multi-Layer Coatings
Multi-layer coatings that incorporate the best qualities of various materials are also being developed. These coatings offer superior wear resistance, lower friction, and high-temperature resistance. By offering a solution for multiple materials and cutting conditions, multi-layer coatings could provide unmatched performance in demanding machining processes.
A multi-layer coating, for instance, can take advantage of both the heat-resistive qualities of TiAlN (titanium aluminium nitride) and DLC (diamond-like carbon) friction-reducing properties, providing the best of both worlds for complex machining operations.
Growing Attention to Tool Lifecycle Tracking
As smart manufacturing and Industry 4.0 develop, increasing emphasis is being laid on the integration of sensors in coated tools, thus monitoring real-time performance. Sensors can sense things such as wear, temperature, or vibration, which the operator can then use as feedback. They could also enable the future generation of dynamic adjustment of the cutting parameters that further optimize machine optimization based on the data obtained in the innovative coating.
Conclusion
The coating technology of end mills has revolutionised processes, providing improved performance, longevity, and accuracy. From TiN to CVD diamond, the current coatings are optimized with an extensive range of materials, meaning manufacturers can maximize tool efficiency. Emerging trends like the rise of innovative machinery or the demand for more sustainable manufacturing gear will continue to pose challenges for coated tools, with advanced coatings such as nano-coatings, sustainable options and multi-layer coatings paving the way forward that will offer improved adaptability and performance to the machining industry in the future.
Be it custom or standard end mills, HNCarbide has become the go-to end mill supplier for most people. By making material-type appropriate selections, manufacturers can increase productivity and minimise and achieve cost-efficient machining operations. For any queries, please feel free to contact us.
