Skip to content Internal grooving tools are essential for precision machining of internal grooves, retaining ring grooves, and sealing grooves in high-accuracy components. HNCarbide manufactures high-performance internal grooving tool solutions designed for CNC lathes, ensuring stable cutting, excellent chip control, and superior surface finish when machining materials such as stainless steel, titanium alloys, and medical-grade metals.
Our range includes internal grooving inserts, internal grooving boring bars, and deep internal grooving tools, suitable for applications such as orthopedic bone screws, surgical instruments, and precision mechanical parts. With advanced carbide grades and optimized geometries, HNCarbide internal grooving tools for CNC and lathe deliver reliable performance, long tool life, and consistent groove accuracy in demanding production environments.
An internal grooving tool is designed for precision machining of grooves inside bores and cylindrical components on CNC lathes. These tools are widely used to produce internal retaining ring grooves, sealing grooves, and functional grooves in high-precision parts.

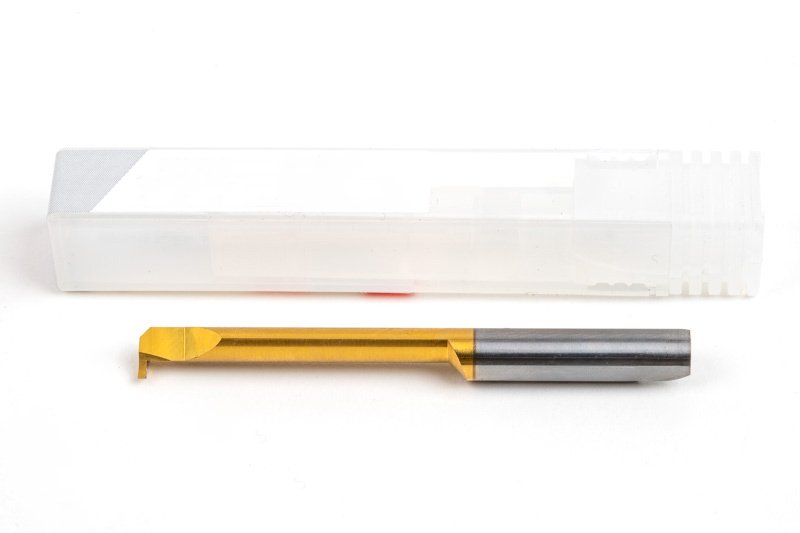

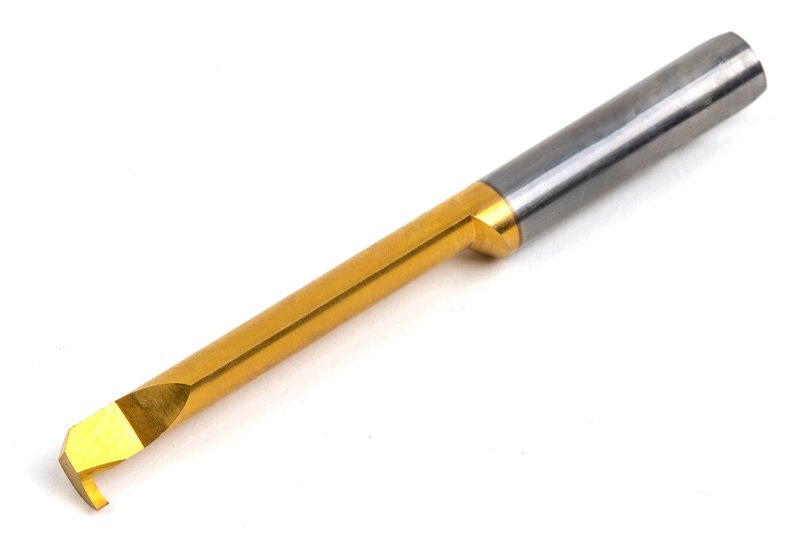

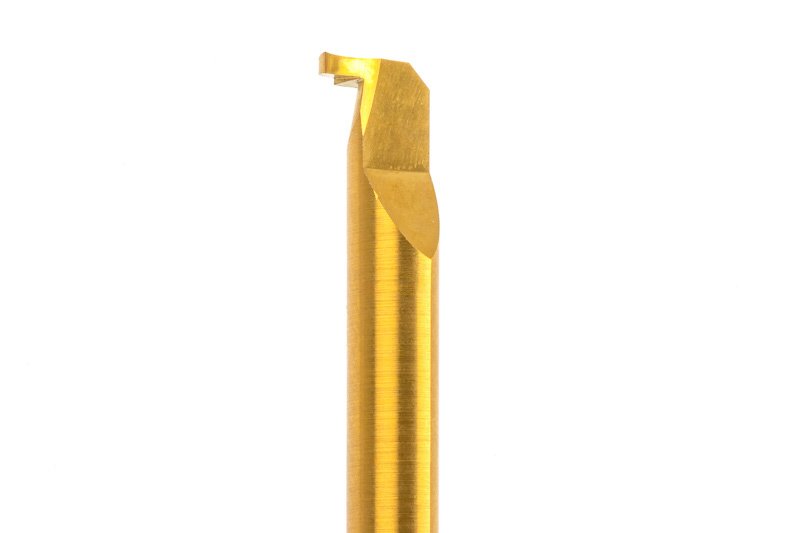

HNCarbide internal grooving tools are made from high-quality carbide and optimized cutting geometries to ensure stable cutting performance, efficient chip evacuation, and long tool life. They are suitable for machining difficult materials such as titanium alloys and stainless steel while maintaining excellent groove accuracy and surface finish.
Our range includes internal grooving inserts and internal grooving boring bars, compatible with modern CNC turning centers. These tools are widely used in the production of titanium medical components such as bone screws, as well as aerospace and precision mechanical parts where reliable internal grooving performance is required.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| TiXCo3 | Advanced nanocomposite multilayer PVD coating based on Ti, Al, Cr and Si; usually built with a TiN or CrTiN adhesion layer, an AlTi(Si)N core and an extremely hard TiSiN nano-composite top layer. Copper-coloured coating designed specifically for hard-machining tools such as solid carbide drills. | Nano-hardness: 42–44 GPa (≈4300–4500 HV). Coefficient of friction: ~0.4 (PoD test, room temperature, 50 % humidity). Coating thickness: typically 1–4 µm. Maximum service temperature up to about 1,000–1,100 °C, giving excellent thermal stability and oxidation resistance for high-speed drilling in hard materials. | Copper appearance; delivers very high surface quality of the hole and extremely high wear resistance. Our hardest nanocomposite coating, optimized for hard machining and finishing operations in drilling, milling and reaming at very high cutting speeds. Suitable for dry or near-dry machining and for difficult-to-cut, abrasive alloys where long, stable tool life is required. | Recommended workpiece materials: hardened steels (up to ~60–64 HRC), stainless steels, tool steels, nickel-based superalloys, cast irons and other hard or abrasive metals. Typical application fields for drills: high-precision deep-hole and high-speed production drilling of dies and moulds, power-train and transmission components, aerospace turbine and structural parts, and other hard-machining operations demanding tight tolerances and excellent hole finish. |
An internal grooving tool is a cutting tool used on CNC lathes or turning machines to create grooves inside a bore or cavity. These grooves may serve different functions such as retaining ring grooves, sealing grooves, or functional grooves used in mechanical assemblies.
In precision industries such as medical device manufacturing, internal grooving tools are commonly used to machine grooves inside titanium bone screws, surgical components, and implant parts. Modern internal grooving tools for CNC lathes are designed with optimized carbide inserts and chip-breaking geometries to ensure stable cutting and accurate groove dimensions.
A high-quality internal grooving tool can machine a wide range of materials, including stainless steel, titanium alloys, carbon steel, and high-temperature alloys. Among these materials, titanium is one of the most challenging due to its strength and heat concentration during cutting. Specialized internal grooving inserts with wear-resistant coatings and optimized geometries help maintain cutting stability and extend tool life when machining titanium alloys such as Ti-6Al-4V. These materials are widely used in aerospace components and medical implants.
There are several types of internal grooving tools used in CNC machining depending on the application and groove design. The most common types include internal grooving inserts, internal grooving boring bars, and internal face grooving tools. Inserts provide replaceable cutting edges for cost efficiency, while boring bars provide rigidity when machining deep internal grooves. Deep internal grooving tools are specifically designed for long reach operations inside narrow bores. Selecting the correct tool depends on groove width, bore diameter, machining depth, and material type.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
HNCarbide internal grooving tools are engineered for precision machining of internal grooves in titanium alloys and other difficult-to-cut materials. Designed for CNC lathes, these tools provide stable cutting performance and excellent chip evacuation when producing internal retaining ring grooves, sealing grooves, and precision functional grooves.
Our internal grooving tool solutions, including internal grooving inserts and internal grooving boring bars, are widely used in the production of orthopedic bone screws, medical implants, aerospace titanium components, and precision mechanical parts. With optimized carbide grades and advanced geometries, HNCarbide ensures reliable machining efficiency and consistent groove accuracy even in demanding titanium applications.
HNCarbide internal grooving tools are manufactured from premium carbide materials and precision ground to ensure excellent wear resistance and cutting stability when machining titanium and stainless steel. Optimized cutting edges reduce cutting forces and heat generation, improving tool life and machining consistency.
Our portfolio includes internal grooving inserts, internal grooving bars, and deep internal grooving tools, suitable for a wide range of groove diameters and depths. With strict quality control and advanced CNC grinding technology, every internal grooving tool for CNC lathes delivers reliable precision, smooth groove surfaces, and consistent performance in high-precision machining environments.
We Are Commited To Providing High-Quality, Customized solutions At An Affordable price While Also Prioritizing sustainability And ExcellentCustomer Service, These Qualities Make Us A Great choice For Your Best Internal Grooving Tools Needs.
We Only Use unground tungsten carbide rods with HlP sintering and100% virgin material. Our grade includes lsO K05 to K40, frommachining carbon steel to aluminium, non-ferrous metals andtitanium or we develop grade for your applications.
As a HNCarbide customer, you can enjoy five-axis high-precisiongrinding machines from Australia’s ANCA or Germany’s Walter. Themodern workshop with constant temperature and humidity ensuresthe accuracy of each Internal Grooving Tools.
Each of your Internal Grooving Tools will be sandblasted to effectively remove burrs and improve the finish.
All HNCarbide’s Internal Grooving Tools will be monitored on WALTER HELICHEEK and ZOLLER GENlUS 3 to ensure that every dimension is qualified. We arecommitted to controlling the tolerance within 3 UM.
At HNCarbide, every shipment is meticulously packaged to ensure your tools arrive intact.
Each HNCarbide’s Internal Grooving Tools is individually placed in a shock-resistant protective case, labeled with complete specifications, and sealed in moisture-proof packaging material before being boxed.
Large-volume orders are reinforced with double-wall cardboard boxes or wooden crates to maximize safety during international shipping.
We collaborate with reliable logistics partners to ensure goods are delivered quickly and securely to their destination via air freight, sea freight, or express courier.
An internal grooving tool is a cutting tool used on CNC lathes or turning machines to create grooves inside a bore or cavity. These grooves may serve different functions such as retaining ring grooves, sealing grooves, or functional grooves used in mechanical assemblies.
In precision industries such as medical device manufacturing, internal grooving tools are commonly used to machine grooves inside titanium bone screws, surgical components, and implant parts. Modern internal grooving tools for CNC lathes are designed with optimized carbide inserts and chip-breaking geometries to ensure stable cutting and accurate groove dimensions.
A high-quality internal grooving tool can machine a wide range of materials, including stainless steel, titanium alloys, carbon steel, and high-temperature alloys. Among these materials, titanium is one of the most challenging due to its strength and heat concentration during cutting. Specialized internal grooving inserts with wear-resistant coatings and optimized geometries help maintain cutting stability and extend tool life when machining titanium alloys such as Ti-6Al-4V. These materials are widely used in aerospace components and medical implants.
There are several types of internal grooving tools used in CNC machining depending on the application and groove design. The most common types include internal grooving inserts, internal grooving boring bars, and internal face grooving tools. Inserts provide replaceable cutting edges for cost efficiency, while boring bars provide rigidity when machining deep internal grooves. Deep internal grooving tools are specifically designed for long reach operations inside narrow bores. Selecting the correct tool depends on groove width, bore diameter, machining depth, and material type.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
In modern precision manufacturing, the internal grooving tool plays a critical role in producing accurate internal grooves, retaining ring grooves, and sealing grooves in complex components. These grooves are widely used in industries such as medical device manufacturing, aerospace engineering, and high-precision mechanical systems. Among these applications, machining titanium alloys for medical implants and orthopedic bone screws requires particularly advanced cutting solutions.
Because titanium is known for its high strength, low thermal conductivity, and strong chemical reactivity, selecting the right internal grooving tools is essential to ensure machining stability, dimensional accuracy, and tool life.
Titanium alloys such as Ti-6Al-4V are commonly used in medical implants due to their excellent biocompatibility, corrosion resistance, and strength-to-weight ratio. However, these same properties make titanium one of the most difficult materials to machine.
A high-quality internal grooving tool for CNC lathes allows manufacturers to produce precise grooves inside small bores or cavities while maintaining tight tolerances and smooth surface finishes. These grooves are essential for several functions, including:
Internal retaining rings used in medical devices
Sealing grooves in implant components
Functional grooves in orthopedic bone screws
Internal snap ring groove dimensions required in mechanical assemblies
In such applications, using specialized lathe internal grooving tools ensures consistent results and prevents issues such as excessive tool wear, vibration, or chip accumulation.
Several types of internal grooving tools for lathe operations are commonly used in precision machining environments. Each type is designed to meet different machining requirements depending on groove depth, diameter, and material.
Internal grooving inserts are replaceable carbide cutting tips mounted on a tool holder. They are widely used because they offer flexibility, cost efficiency, and excellent cutting performance. Modern carbide inserts are designed with optimized chip-breaker geometries that improve chip evacuation when machining titanium.
An internal grooving boring bar provides the necessary rigidity when machining grooves deep inside a component. These tools are often used in applications that require deep internal grooving tools, especially when producing narrow grooves in medical screws or small titanium parts.
An internal face grooving tool is designed to cut grooves on the internal face of a component. This tool is frequently used in parts where groove positioning is critical for sealing or assembly functions.
Selecting the right internal groove cutting tool depends on factors such as bore diameter, groove width, material hardness, and machining stability.
Titanium machining presents unique challenges that require careful tool design and cutting strategy. The most common difficulties include:
Titanium has low thermal conductivity, meaning heat tends to remain concentrated at the cutting edge. A properly designed internal grooving tool with advanced carbide grades helps reduce heat buildup and maintain tool integrity.
Poor chip evacuation can cause chips to clog inside the groove during machining. High-performance internal grooving inserts with optimized chip breakers improve chip flow and reduce the risk of tool breakage.
Titanium's chemical reactivity can lead to rapid tool wear. Using coated carbide internal grooving tools for CNC significantly increases tool life and improves machining consistency.
Accurate groove measurement is essential in medical device manufacturing, where even minor deviations can affect performance and safety.
Several specialized tools are used for internal groove measuring, including:
Internal groove micrometer
Internal groove calipers
Internal groove measuring tool systems
Mitutoyo internal groove gage for high-precision inspection
These measuring instruments ensure that groove dimensions comply with design specifications such as internal circlip groove dimensions or metric internal snap ring groove dimensions.
Reliable internal groove measuring equipment helps manufacturers maintain strict quality control in medical and aerospace applications.
Many global cutting tool manufacturers offer specialized internal grooving tools designed for high-precision machining.
Examples include:
Sandvik internal grooving tools
Iscar internal grooving tools
Kyocera internal grooving systems
PH Horn internal grooving solutions
These brands have developed advanced geometries and carbide grades to improve cutting stability and extend tool life in demanding machining environments.
However, many manufacturers also seek customized solutions tailored to specific applications such as titanium bone screw production or specialized medical components.
One of the most important applications of the internal grooving tool is in the manufacturing of orthopedic implants. Medical components often require extremely tight tolerances and smooth internal surfaces to ensure proper function and long-term reliability.
Typical applications include:
Orthopedic bone screws
Trauma fixation devices
Surgical instruments
Titanium implant components
When machining these parts, deep internal grooving tools allow precise creation of internal functional grooves without compromising material strength.
Using advanced internal grooving boring bars combined with optimized cutting parameters ensures high productivity and consistent groove quality.
The internal grooving tool is an essential cutting tool for precision CNC machining, particularly when working with challenging materials such as titanium alloys. From producing internal retaining ring grooves to machining functional grooves in medical implants, these tools play a crucial role in modern manufacturing.
By selecting the right internal grooving inserts, internal grooving boring bars, and internal groove cutting tools, manufacturers can achieve excellent machining performance, improved tool life, and consistent dimensional accuracy.
As industries such as medical device manufacturing and aerospace continue to demand higher precision and reliability, advanced internal grooving tools for CNC lathes will remain a key technology enabling efficient and accurate machining of complex components.
With more than 20 years of experience in the cutting tool industry, HNCarbide specializes in manufacturing precision internal grooving tools for CNC turning applications. Our tools are designed for stable machining of difficult materials such as titanium alloys, stainless steel, and high-strength metals.
Through long-term cooperation with global customers and continuous participation in international trade shows, we have gained extensive experience in real machining environments. We provide reliable OEM and ODM solutions, including customized internal grooving inserts, tool holders, and carbide grades, helping customers achieve consistent groove accuracy and improved productivity in medical, aerospace, and precision engineering applications.
