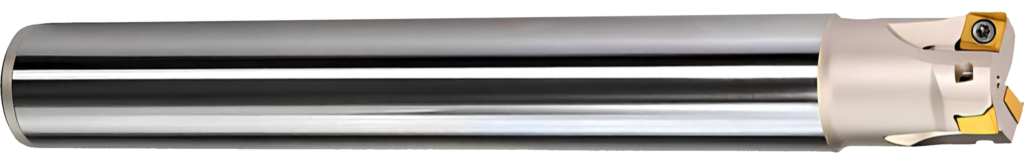

The HNCarbide indexable end mill is a cost-effective and high-efficiency solution for rapid material removal in CNC milling operations. Designed primarily for roughing applications, this indexable end mill allows manufacturers to remove large volumes of material while significantly reducing overall tooling costs compared with solid carbide end mills.
For optimal performance, the HNCarbide indexable end mill is recommended to run with a larger axial depth of cut and a lighter radial width of cut. This cutting strategy increases effective insert engagement, making it particularly advantageous for longer “B-type” tool designs. As a result, higher spindle speeds and increased IPM can be applied, enabling aggressive penetration into the workpiece with stable and predictable cutting behavior.
The inserts feature a free-cutting geometry that delivers low vibration and reduced energy consumption, improving machining stability and surface consistency while lowering mold and production costs. The cutter body is manufactured from high-quality alloy steel and heat-treated to approximately 55 HRC, ensuring strength, rigidity, and long-term durability under heavy cutting conditions.

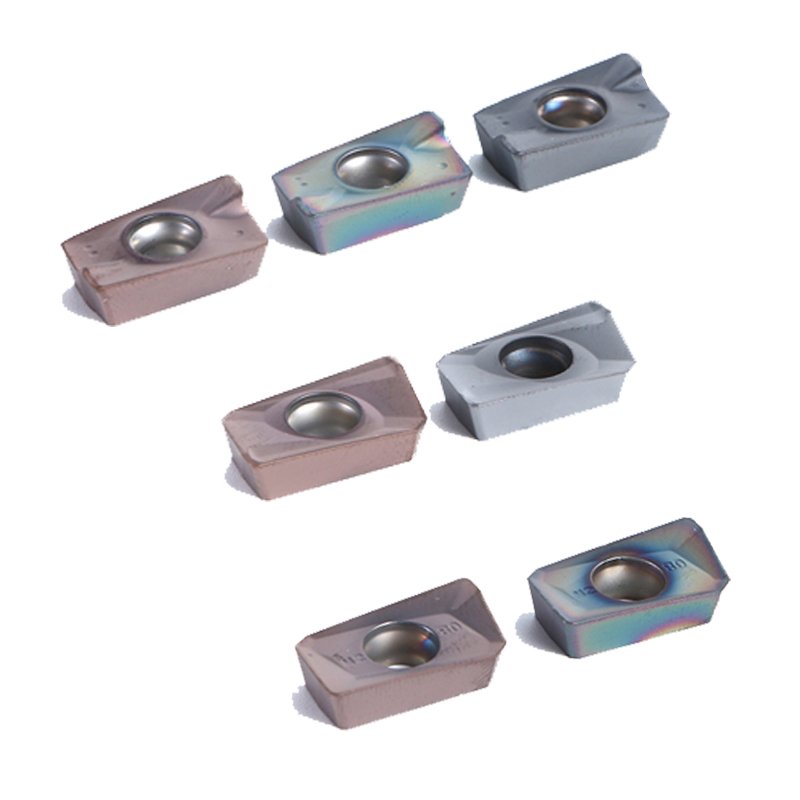

This indexable end mill is compatible with APMT1604 and APGT1604 inserts, offering flexible insert selection to match different materials and cutting requirements.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| ALCRN | Al: 18–32% Cr: 10–25% N: 45–57% | Hardness: 2800–3200 HV (≈30–32 GPa) Thickness: 1–5 μm (typically 3–4 μm in applications) Oxidation temperature: 1000–1100°C (short-term up to 1100°C) Deposition temperature: ＜500°C (suitable for HSS and carbide substrates) | Red hardness: maintains hardness even at 1100°C, better than TiAlN (whose hardness drops above about 900°C). Adhesion: critical load up to 40 N (with optimized process). Wear resistance: suitable for high-speed cutting and dry machining, especially effective on stainless steels and alloy steels. | Cutting tools: end mills, gear cutters, drills (e.g. Balinit Alcorna series). Moulds: aluminium die-casting moulds, stamping tools. Industrial parts: piston rings, high-temperature wear-resistant parts (combined with suitable interlayer design). |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| TiSiN | Ti (titanium): main element, forms TiN nanocrystalline phase. Si (silicon): usually 6–10%, forms amorphous Si₃N₄ phase, refines grains and increases hardness. N (nitrogen): combines with Ti and Si to form a composite structure. | Colour: TiSiN coatings usually appear bronze or dark grey-bronze; exact colour depends on Si content, deposition process (such as PVD) and thickness (1–4 μm). Hardness: 34–42 GPa (≈3400–4200 HV). Friction coefficient: 0.3–0.6 (against steel). Temperature resistance: 1000–1200°C (oxidation resistance). Coating thickness: 1–5 μm (typically 2–3 μm). Deposition temperature: 200–400°C (suitable for carbide tools). | Ultra-high hardness: amorphous Si₃N₄ phase suppresses dislocation movement, giving much higher hardness than TiN (~23 GPa) and TiAlN (~35 GPa). High-temperature stability: suitable for dry cutting and high-speed machining (e.g. quenched steels HRC 60+). Anti-adhesion: reduces built-up edge when machining aluminium alloys, stainless steels and other sticky materials. | Tool coatings: drills, mills (especially suitable for PCB routers, tool life increased by 2–3 times). High-speed cutting of quenched steels, titanium alloys and high-nickel alloys. Mould strengthening: die-casting moulds and stamping dies, improving wear resistance. Industrial parts: piston rings and other high-temperature wear parts. |
An indexable end mill is a milling cutter that uses replaceable carbide inserts as cutting edges instead of a solid one-piece cutting tool. When an insert edge wears out, it can be indexed or replaced without changing the entire cutter body, making indexable end mills efficient for roughing and high-volume machining.
A high feed indexable end mill is designed to operate with shallow axial depths of cut and high feed rates. Its geometry redirects cutting forces axially, improving stability and allowing higher material removal rates, especially on machines with limited rigidity or long tool overhangs.
Common sizes include metric and inch options such as 12mm indexable end mill, 1/2 indexable end mill, 3/4 indexable end mill, and 1 inch indexable end mill. Larger diameters are especially well suited for indexable systems due to improved insert utilization and rigidity.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.

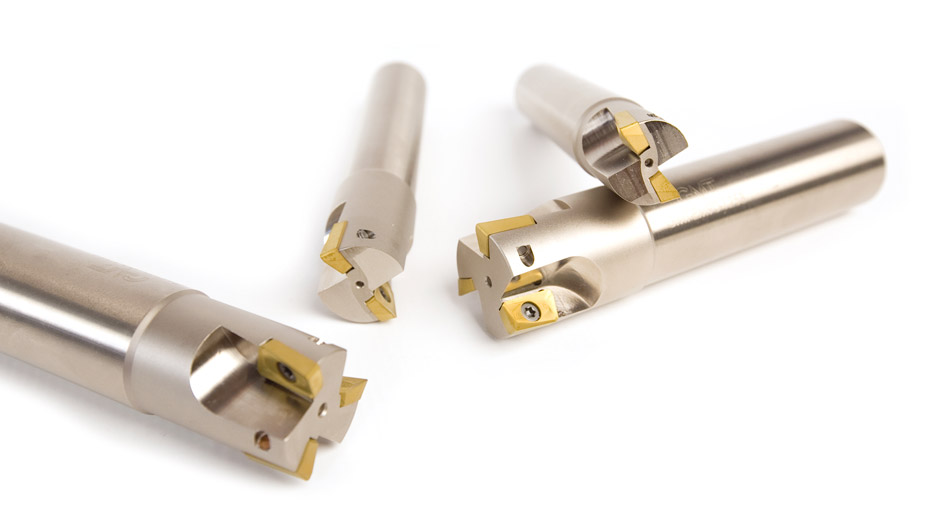

The HNCarbide indexable end mill is designed for high-efficiency roughing and general milling applications where productivity and cost control are critical. By combining a rigid cutter body with replaceable carbide inserts, this indexable end mill enables fast material removal while maintaining stable cutting performance across different machining environments.
Commonly used in steel, stainless steel, cast iron, and aluminum machining, the indexable end mill is well suited for face milling, pocketing, and heavy-duty roughing operations. With support for popular sizes such as 1/2 indexable end mill and 3/4 indexable end mill, as well as options including high feed indexable end mill and long reach indexable end mill, it adapts easily to various CNC machines and cutting strategies, making it a flexible solution for batch and mass production.

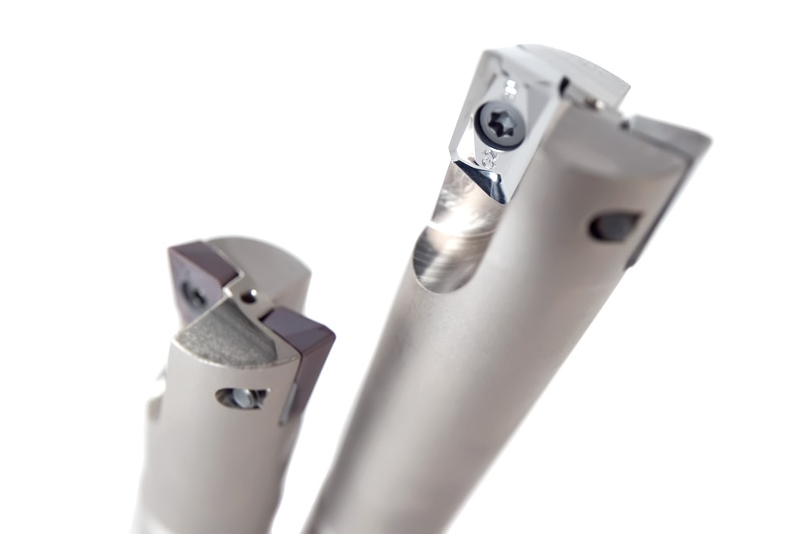

Each HNCarbide indexable end mill is engineered with a high-strength tool body and precision-machined insert pockets to ensure reliable performance under heavy cutting loads. The optimized geometry helps reduce vibration and cutting forces, allowing higher spindle speeds and feed rates while improving overall machining stability.
Compared with solid carbide tools, an indexable end mill provides clear advantages in tool life management and cost efficiency. Worn inserts can be indexed or replaced individually without changing the entire cutter, significantly lowering tooling costs during the roughing stage. When paired with proper indexable end mill speeds and feeds, the HNCarbide indexable end mill delivers consistent, repeatable results and serves as a practical alternative to solid carbide end mills in demanding CNC milling operations.
We Are Commited To Providing High-Quality, Customized solutions At An Affordable price While Also Prioritizing sustainability And ExcellentCustomer Service, These Qualities Make Us A Great choice For Your Indexable End Mill Needs
We Only Use unground tungsten carbide rods with HlP sintering and100% virgin material. Our grade includes lsO K05 to K40, frommachining carbon steel to aluminium, non-ferrous metals andtitanium or we develop grade for your applications.
As a HNCarbide customer, you can enjoy five-axis high-precisiongrinding machines from Australia’s ANCA or Germany’s Walter. Themodern workshop with constant temperature and humidity ensuresthe accuracy of each Indexable End Mill.
Each of your tungsten steel Indexable End Mill will be sandblasted toeffectively remove burrs and improve the finish.

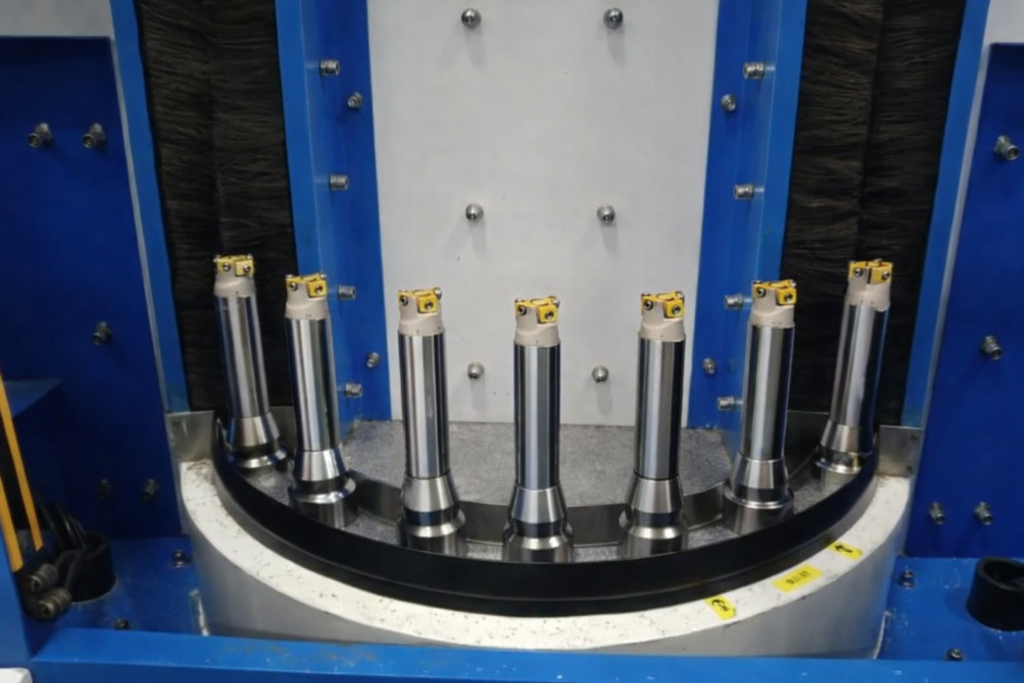

All HNCarbide’s Indexable End Mill will be monitored on WALTER HELICHEEK and ZOLLER GENlUS 3 to ensure that every dimension is qualified. We arecommitted to controlling the tolerance within 3 UM.
At HNCarbide, every shipment is meticulously packaged to ensure your tools arrive intact.
Each HNCarbide Indexable End Mill is individually placed in a shock-resistant protective case, labeled with complete specifications, and sealed in moisture-proof packaging material before being boxed.
Large-volume orders are reinforced with double-wall cardboard boxes or wooden crates to maximize safety during international shipping.
We collaborate with reliable logistics partners to ensure goods are delivered quickly and securely to their destination via air freight, sea freight, or express courier.
An indexable end mill is a milling cutter that uses replaceable carbide inserts as cutting edges instead of a solid one-piece cutting tool. When an insert edge wears out, it can be indexed or replaced without changing the entire cutter body, making indexable end mills efficient for roughing and high-volume machining.
A high feed indexable end mill is designed to operate with shallow axial depths of cut and high feed rates. Its geometry redirects cutting forces axially, improving stability and allowing higher material removal rates, especially on machines with limited rigidity or long tool overhangs.
Common sizes include metric and inch options such as 12mm indexable end mill, 1/2 indexable end mill, 3/4 indexable end mill, and 1 inch indexable end mill. Larger diameters are especially well suited for indexable systems due to improved insert utilization and rigidity.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
In modern CNC milling, productivity and tooling cost control are constant priorities. Among the many cutting tool options available, the indexable end mill has become a widely adopted solution for roughing and high-efficiency milling across a broad range of materials. Its modular design, combined with stable cutting performance, makes it a practical choice in both small batch and high-volume production environments.
This article explains what an indexable end mill is, where it performs best, how it differs from solid carbide end mills, and how different designs are applied in real machining scenarios.
An indexable end mill is a milling cutter that uses replaceable carbide inserts as cutting edges rather than a one-piece solid construction. The cutter body is typically manufactured from alloy steel to provide strength and rigidity, while the inserts are made from carbide and secured mechanically into precision-machined pockets.
When an insert edge becomes worn, it can be indexed to a fresh cutting edge or replaced entirely. This design allows the indexable end mill to maintain consistent cutting performance while reducing tool replacement cost and downtime compared with solid carbide tools.
The comparison between an indexable end mill vs solid carbide is largely determined by application requirements rather than absolute performance.
Solid carbide end mills offer excellent rigidity, sharp cutting edges, and precise geometry, making them well suited for finishing, fine profiling, and small-diameter machining. However, they are typically more expensive to replace and less forgiving in heavy roughing or interrupted cuts.
An indexable end mill, by contrast, is optimized for material removal efficiency and cost management. The replaceable insert system allows cutting edges to be changed without discarding the entire tool, resulting in lower cost per edge and improved economics in roughing and semi-finishing operations. In applications involving heavy engagement, variable stock, or cast surfaces, indexable cutters often provide greater stability and durability.
An indexable end mill is commonly used in operations where fast material removal and stable cutting behavior are required:
Roughing operations in steel and stainless steel
Machining cast iron and abrasive materials
High-efficiency milling of aluminum with appropriate insert geometry
Pocketing, facing, and general rough milling
Production environments requiring predictable tooling cost
By assigning the roughing stage to indexable tools, solid carbide end mills can be reserved for finishing operations where dimensional accuracy and surface quality are critical.
Different indexable end mill designs address specific machining needs.
A high feed indexable end mill uses a shallow axial depth of cut combined with high feed rates. The insert geometry directs cutting forces axially, improving stability and enabling high material removal rates, particularly on machines with limited rigidity.
An indexable roughing end mill is designed for heavy engagement and demanding cutting conditions. Strong insert seating, reinforced cutter bodies, and chip-controlling geometries allow these tools to perform reliably in aggressive roughing operations.
A helical indexable end mill introduces a gradual cutting action that reduces impact forces and vibration. This design improves chip evacuation and machining stability, especially in tougher materials.
An indexable ball nose end mill is used for contouring and 3D surface machining. While solid carbide ball end mills remain common for small diameters, indexable ball nose cutters provide a cost-effective option in larger sizes.
An indexable corner rounding end mill is designed to produce consistent edge radii. It is frequently used in production environments where uniform chamfers or radii are required.
Indexable end mills are available in both metric and inch sizes. Commonly used diameters include 12mm indexable end mill, 1/2 indexable end mill, 3/4 indexable end mill, and 1 inch indexable end mill. As cutter diameter increases, indexable systems become increasingly attractive due to improved insert utilization and cost efficiency.
An indexable end mill for aluminum can achieve high productivity when matched with suitable insert geometry. Sharp cutting edges, polished rake faces, and efficient chip evacuation are essential to prevent built-up edge and chip re-cutting. With the correct insert selection, indexable cutters can perform efficiently in aluminum roughing and facing operations.
Cutting parameters for an indexable end mill depend on insert grade, cutter diameter, material type, and machine capability. In general, stable performance is achieved by matching cutting speed to insert recommendations and adjusting feed rates according to chip thickness and machine rigidity. Different cutter designs—such as high-feed versus conventional roughing styles—require different depth and width of cut strategies.
Questions often arise regarding center cutting indexable end mill capability or spindle compatibility such as indexable end mill R8 setups. Many indexable cutters are not designed for plunging operations unless specifically engineered for that purpose. Proper tool holding, minimal overhang, and controlled runout are critical factors in achieving stable performance from any indexable milling system.
Performance decline in an indexable end mill is most often related to worn inserts, damaged insert pockets, or improper clamping. Regular inspection of inserts, screws, and seating surfaces ensures consistent cutting behavior and extends tool life. Insert replacement restores cutting performance without the need to replace the cutter body.
An indexable end mill is a highly effective solution for roughing and high-efficiency milling where productivity, durability, and cost control are essential. By combining a rigid cutter body with replaceable carbide inserts, indexable end mills provide a scalable and economical approach to material removal in CNC machining.
In many machining workflows, indexable end mills handle the majority of stock removal, while solid carbide tools are reserved for finishing and precision work. This balanced approach supports consistent machining performance and optimized tooling investment across a wide range of applications.
