High Material Removal Efficiency: Roughing End Mills in Mold Making and Metalworking

In the world of mold making and heavy-duty metalworking, machining efficiency directly determines both profitability and competitiveness. While finishing receives significant attention for its precision, it is the roughing stage—the process of bulk material removal—that dictates how fast and economically a component can be produced. In mold blocks, die plates, and structural alloys, roughing can consume up to 70% of total machine time. If roughing is inefficient, cycle times balloon, costs increase, and machine availability for other jobs is reduced.

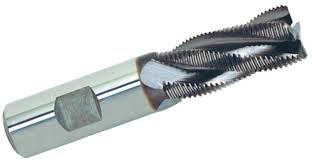

Roughing end mills, designed with serrated or knuckle-like edges, are specialized tools engineered for aggressive but controlled cutting. Their purpose is simple but transformative: to remove maximum material volume per unit time while maintaining predictable stability. Research and industrial practice consistently demonstrate that serrated roughers achieve 20–45% higher material removal rates (MRR) and reduce spindle load spikes compared to flat-end tools. When paired with adaptive toolpaths, roughing end mills shorten lead times, reduce tool costs, and enhance finishing accuracy.

This article explores their role in depth: why roughing is critical, how serrated geometries work, what applications benefit most, recommended machining parameters, troubleshooting, cost comparisons, and future industry trends.

Why Roughing Matters in Mold and Metalworking

Mold and Die Industry

Molds for injection molding, die casting, and stamping start as massive blocks of tool steel such as P20, H13, or D2. To machine cavity shapes, ribs, and cooling channels, more than half of the raw material must be removed. Without dedicated roughers, long machining hours create bottlenecks and excessive tool wear. By contrast, serrated roughers fragment chips and sustain higher feed rates, making large cavities practical to machine overnight.

General Metalworking

In fabrication shops, roughing determines throughput when machining steel plates, fixtures, or aerospace alloys. Efficient roughing stabilizes residual stress, reduces thermal distortion, and allows finishing tools to work with minimal force. This not only improves surface accuracy but also extends tool life downstream.

Cycle-Time Economics

Because roughing occupies the majority of spindle time, a 20% gain in MRR at this stage can translate into overall cycle-time reductions of 15–25% for entire jobs. For industries where margins are slim and customer lead time expectations are tight, such gains are often the difference between profitability and loss.

Tool Features of Roughing End Mills

Serrated Geometry for Chip Breaking

The hallmark of roughing end mills is their wave or knuckle form edge. Instead of forming long, continuous ribbons, chips are broken into small fragments at the root. These small chips exit more easily, generate less heat, and prevent re-cutting. Lower cutting force per flute leads to more stable load distribution and reduced chatter risk.

Reduced Cutting Forces and Stable Engagement

Studies report that serrated roughers lower instantaneous cutting forces by 20–30%, which permits deeper axial depths (ap) and higher feed per tooth (fz). By controlling force spikes, they enable stable engagement in both cavities and slotting.

Tool Materials

Carbide roughers dominate mold and hardened steel applications because of their stiffness and wear resistance.

HSS (High-Speed Steel) is still cost-effective in softer steels and aluminum where spindle speeds are lower.

Coatings

TiAlN/AlTiN: Best for steels and hardened tool steels due to heat resistance.

AlCrN: Withstands high temperatures, useful in dry machining.

DLC: Prevents built-up edge in aluminum and copper alloys.

Nano-multilayer coatings: Combine toughness and lubricity for multipurpose cutting.

Table 1. Coating Selection by Material

Material	Common Risk	Best Coating	Notes
Pre-hardened steels (30–45 HRC)	Heat, flank wear	TiAlN / AlTiN	Dry or mist cooling recommended
Hardened steels (50–60 HRC)	Abrasion, thermal softening	AlCrN	Lower speed, stable engagement
Stainless steels (304/316)	Built-up edge	TiCN	Use high-pressure coolant
Aluminum alloys	Adhesion	DLC	Use air blast for chip removal
Nickel alloys	Heat, work hardening	AlCrN, multilayer	High-pressure coolant essential

Application Scenarios

Mold Cavities

In molds, where deep pockets and ribs are common, roughing end mills allow high axial depths with adaptive clearing paths. Chips are broken quickly and evacuated with air or mist, leaving a consistent stock allowance for finishing tools.

Slotting and Pocketing in Plates

Steel plate fabrication often requires long slots or large pockets. Serrated roughers prevent chip entanglement and chatter, particularly in deep slots. Trochoidal paths further stabilize cutting load.

Aerospace and Automotive Components

Aerospace: Aluminum wing ribs, titanium brackets, and stainless parts benefit from serrated carbide roughers, which reduce cycle time and avoid distortion.

Automotive: Roughing engine blocks, transmission housings, and chassis plates involves high-volume removal. DLC-coated roughers keep chips under control in aluminum alloys.

Energy and Heavy Industry

Turbine housings in Inconel or hardened steels require carbide roughers with AlCrN coatings. Their stability under heat allows higher efficiency compared to standard tools.

Machining Parameters

Table 2. Recommended Starting Parameters (Ø12 mm carbide rougher)

Material	Cutting Speed (m/min)	Feed per Tooth (mm)	ap (Axial Depth)	ae (Radial Width)	Coolant
Low-carbon steel	120–160	0.10–0.18	1.0–1.5×D	10–20% D	Flood/air
Mold steel (30–45 HRC)	80–120	0.08–0.14	0.8–1.2×D	8–15% D	Air/mist
Hardened steel (48–60 HRC)	60–90	0.05–0.10	0.6–1.0×D	5–10% D	Air blast
Stainless steel	60–90	0.06–0.12	0.6–1.0×D	5–12% D	High-pressure coolant
Aluminum alloys	220–300	0.12–0.28	1.2–2.0×D	15–25% D	Air blast
Titanium alloys	40–70	0.03–0.08	0.5–0.8×D	5–8% D	High-pressure coolant

Tool Holding

Best: Shrink-fit and hydraulic chucks.

Moderate: Side-lock holders, though runout can be an issue.

Weakest: Collets, suitable only for light loads.

Coolant Strategy

Steels: Prefer dry with air blast.

Stainless & titanium: Require high-pressure coolant.

Aluminum: Air blast with DLC-coated tools is most effective.

Common Problems & Solutions

Table 3. Troubleshooting

Issue	Likely Cause	Corrective Action
Chatter and vibration	High radial engagement, long reach	Reduce ae, increase ap, use shrink-fit holders
Tool breakage at corners	Sudden load spikes	Use adaptive clearing, helical entry
Excessive heat	Too high cutting speed, chip recutting	Lower vc, increase feed slightly, improve chip evacuation
Built-up edge	Adhesion in aluminum/stainless	Increase speed, use DLC/TiCN coatings
Chip clogging	Ribbon chips, poor evacuation	Use serrated roughers, retract cycles, increase air/coolant flow

Cost-Effectiveness

Roughing end mills provide measurable cost advantages.

Table 4. Cost Comparison

Strategy	Cycle Time	Tool Life	Relative Cost/Part
Flat end mill, conventional	1.3×	Short	1.3×
Flat end mill, adaptive	1.1×	Medium	1.1×
Serrated rougher, adaptive	1.0×	Long	1.0×

By improving MRR and extending tool life, serrated roughers reduce both spindle hours and consumable expense.

Future Trends

High-Efficiency Milling (HEM)

Constant engagement paths with high ap and low ae are becoming industry standard.

Smart Tool Holders

Holders with embedded sensors are entering mainstream use, allowing real-time vibration and load monitoring.

Advanced Coatings

Nano-composite and multilayer coatings will extend rougher life in extreme alloys.

Geometry Optimization

Research continues into variable-pitch serrations and hybrid tools capable of roughing and semi-finishing in one pas

Conclusion

Roughing end mills are the backbone of productivity in mold and metalworking. Their serrated geometry reduces forces, improves chip control, and enables higher feed rates. In industries where bulk removal dominates machining hours, adopting carbide roughers with advanced coatings, paired with adaptive toolpaths and rigid tool holding, consistently yields shorter cycle times and lower total cost per part.

From mold cavities to aerospace titanium parts, the evidence is clear: roughing tools unlock high-efficiency machining and protect profitability.
