6 or 8-flute geometry optimized for high-feed finishing
Square-end cutting profile for precise shoulder and slot milling
HB shank (Weldon shank) for secure tool holding in standard end mill holders
High-quality solid carbide for excellent wear resistance
Conforms to DIN standard dimensions
Ideal for finishing passes in CNC machining
Tool data
Description
This square end milling cutter from the DIN GP series is designed for finish milling applications, featuring 6 or 8 flutes for excellent surface finish and reduced cutting forces. The high flute count allows for stable engagement and low vibration, making it ideal for fine passes at high feed rates.
Equipped with a reliable HB shank (Weldon shank), this cutter ensures secure clamping and torque resistance in demanding operations. Manufactured to DIN standard dimensions, it offers consistent performance in steel, cast iron, and other common workpiece materials.
1.Finishing of steel, alloy steel, stainless steel, and cast iron
2.Used in mold & die, automotive parts, and general mechanical components
3.Suitable for shoulder milling, face milling, and side finishing
4.Compatible with high-speed CNC machines and HPC finishing strategies
| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4821 | DGFM-060HB | ALCRN | Square End Mill | GU20F | 6x13x6x57xZ6 |
| XD4822 | DGFM-080HB | ALCRN | Square End Mill | GU20F | 8x19x8x63xZ6 |
| XD4823 | DGFM-100HB | ALCRN | Square End Mill | GU20F | 10x22x10x72xZ6 |
| XD4824 | DGFM-120HB | ALCRN | Square End Mill | GU20F | 12x26x12x83xZ6 |
| XD4825 | DGFM-160HB | ALCRN | Square End Mill | GU20F | 16x32x16x92xZ6 |
| XD4826 | DGFM-160HB-L | ALCRN | Square End Mill | GU20F | 16x65x16x120xZ6 |
| XD4827 | DGFM-200HB | ALCRN | Square End Mill | GU20F | 20x38x20x104xZ8 |
| XD4828 | DGFM-200HB-L | ALCRN | Square End Mill | GU20F | 20x75x20x135xZ8 |
6 or 8-flute geometry optimized for fine surface finishing
Square-end profile for precise shoulders and slots
HA straight shank for high concentricity and minimal runout
Made from premium solid carbide for excellent wear resistance
Conforms to DIN standard tolerances
Suitable for finishing applications in high-speed CNC machining
Tool data
Description

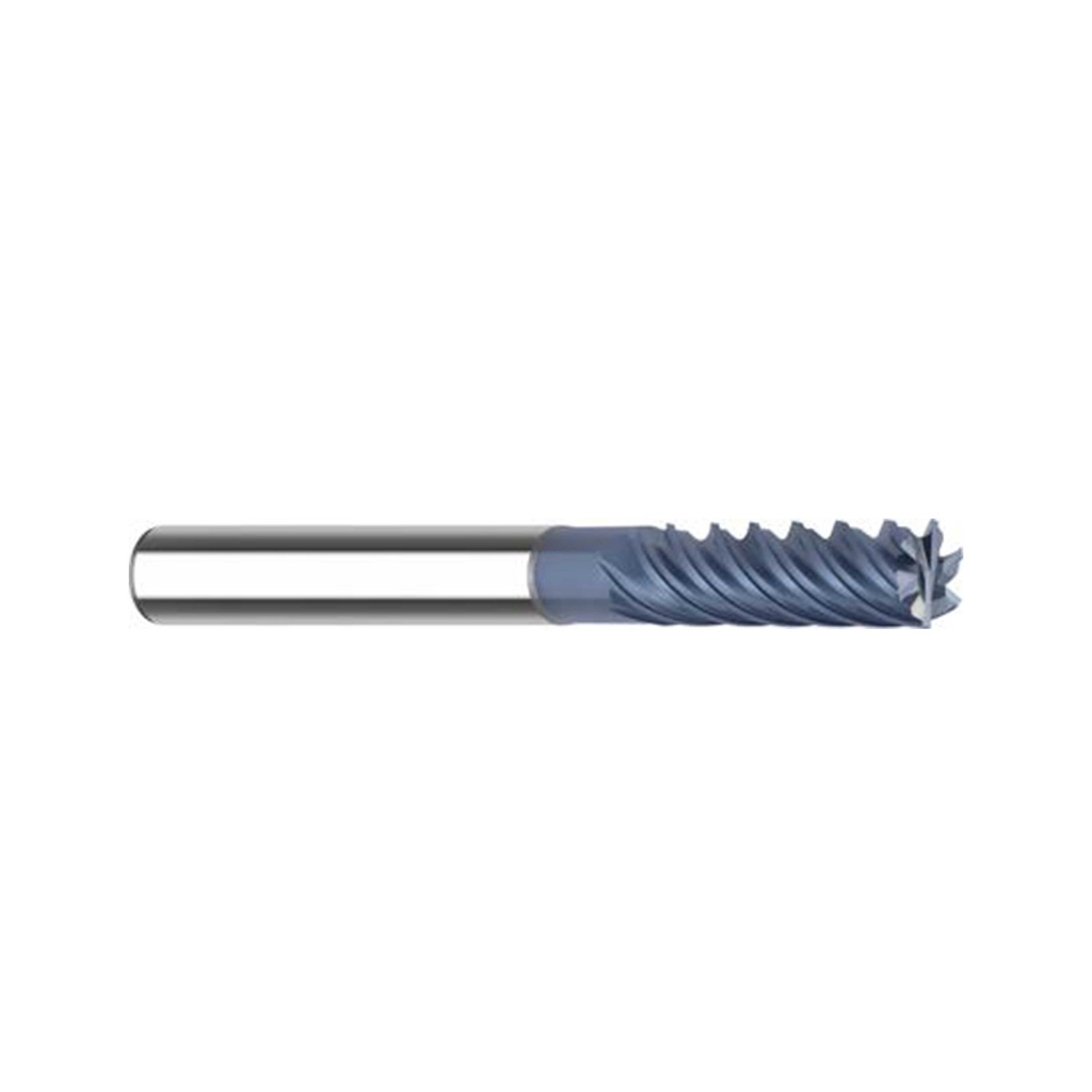

This square end milling cutter from the DIN GP series is designed for precision finish milling, featuring a 6 or 8-flute configuration to deliver excellent surface quality and reduced cutting forces. The high flute count ensures stable cutting engagement and smooth operation at elevated feed rates.
Equipped with a HA shank (straight shank), this tool provides exceptional concentricity and secure clamping, especially in precision collet chucks or shrink-fit holders. Manufactured according to DIN standard dimensions, it is an ideal choice for high-speed finishing in steel, stainless steel, and cast iron.
1.Finishing passes on steel, alloy steel, stainless steel, and cast iron
2.Used in mold & die, aerospace, automotive, and general machining
3.Ideal for shoulder milling, face milling, and side finishing
4.Compatible with CNC machining centers requiring high precision

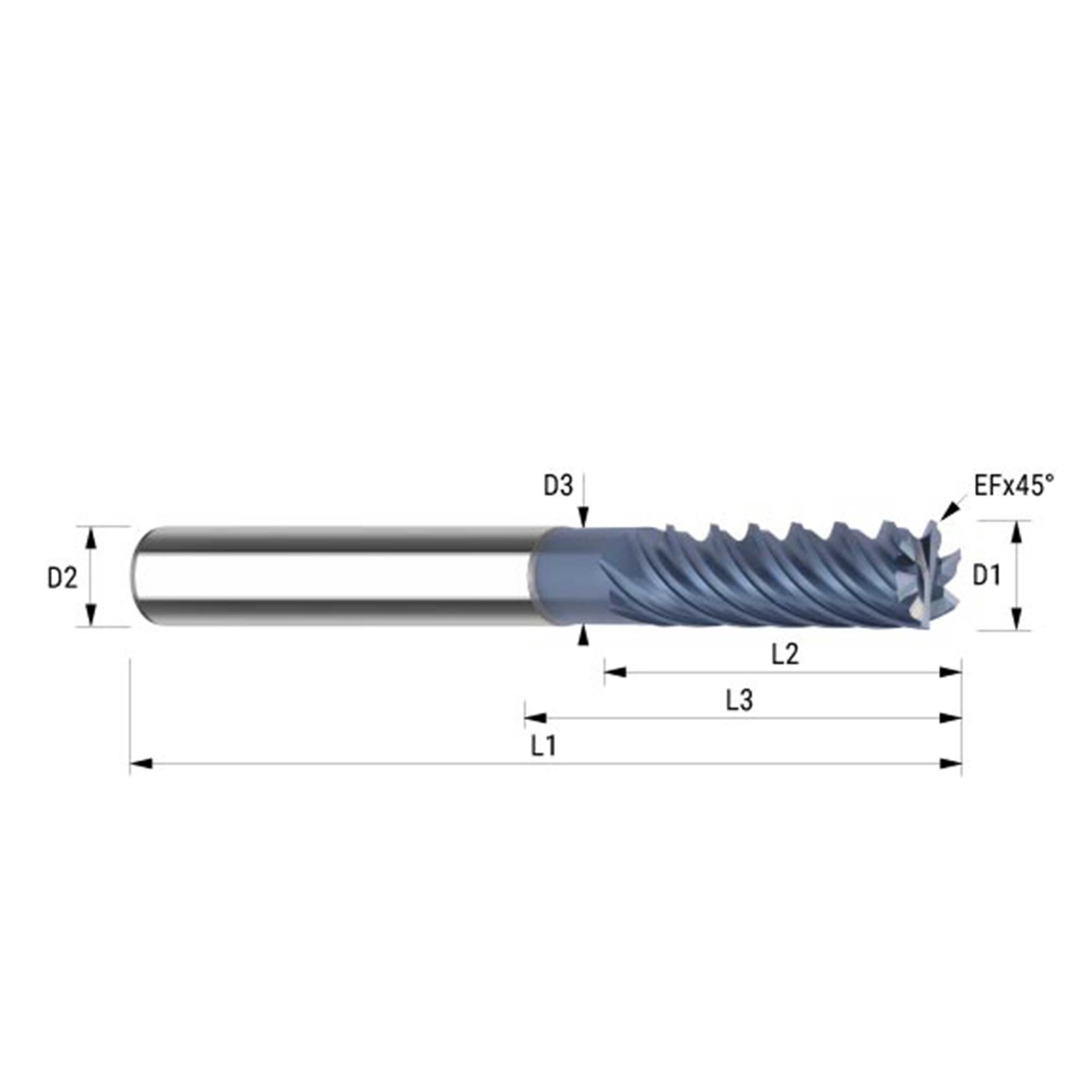

| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD4829 | DGFM-060HA | ALCRN | Square End Mill | GU20F | 6x13x6x57xZ6 |
| XD4830 | DGFM-080HA | ALCRN | Square End Mill | GU20F | 8x19x8x63xZ6 |
| XD4831 | DGFM-100HA | ALCRN | Square End Mill | GU20F | 10x22x10x72xZ6 |
| XD4832 | DGFM-120HA | ALCRN | Square End Mill | GU20F | 12x26x12x83xZ6 |
| XD4833 | DGFM-160HA | ALCRN | Square End Mill | GU20F | 16x32x16x92xZ6 |
| XD4834 | DGFM-160HA-L | ALCRN | Square End Mill | GU20F | 16x65x16x120xZ6 |
| XD4835 | DGFM-200HA | ALCRN | Square End Mill | GU20F | 20x38x20x104xZ8 |
| XD4836 | DGFM-200HA-L | ALCRN | Square End Mill | GU20F | 20x75x20x135xZ8 |
