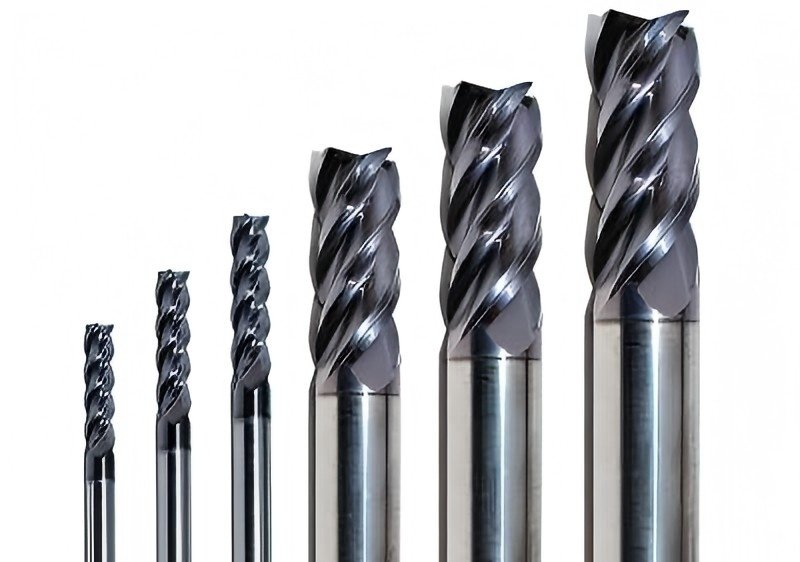

End milling cutters with 4 flutes and a flat cutting end are designed for stable and efficient machining of steel materials up to 55HRC. These 4 flutes end milling cutters provide an excellent balance between cutting rigidity and chip evacuation, making them suitable for general-purpose end milling operation in carbon steel, alloy steel, and pre-hardened steel applications.
Manufactured from premium solid carbide, these solid carbide end milling cutters feature optimized end milling cutter geometry that reduces cutting vibration and improves surface finish during the end milling process. The 4-flute design enhances tool strength and edge stability, allowing consistent performance under moderate to high cutting loads.
These flat end milling cutters are ideal for slotting, side milling, and finishing operations on CNC machining centers. Commonly used in mold making, mechanical parts, and general metalworking, they deliver reliable tool life and dimensional accuracy when machining steel up to 55HRC.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| TiSiN | Ti (titanium): main element, forms TiN nanocrystalline phase. Si (silicon): usually 6–10%, forms amorphous Si₃N₄ phase, refines grains and increases hardness. N (nitrogen): combines with Ti and Si to form a composite structure. | Colour: TiSiN coatings usually appear bronze or dark grey-bronze; exact colour depends on Si content, deposition process (such as PVD) and thickness (1–4 μm). Hardness: 34–42 GPa (≈3400–4200 HV). Friction coefficient: 0.3–0.6 (against steel). Temperature resistance: 1000–1200°C (oxidation resistance). Coating thickness: 1–5 μm (typically 2–3 μm). Deposition temperature: 200–400°C (suitable for carbide tools). | Ultra-high hardness: amorphous Si₃N₄ phase suppresses dislocation movement, giving much higher hardness than TiN (~23 GPa) and TiAlN (~35 GPa). High-temperature stability: suitable for dry cutting and high-speed machining (e.g. quenched steels HRC 60+). Anti-adhesion: reduces built-up edge when machining aluminium alloys, stainless steels and other sticky materials. | Tool coatings: drills, mills (especially suitable for PCB routers, tool life increased by 2–3 times). High-speed cutting of quenched steels, titanium alloys and high-nickel alloys. Mould strengthening: die-casting moulds and stamping dies, improving wear resistance. Industrial parts: piston rings and other high-temperature wear parts. |
End milling cutters are used for slotting, profiling, side milling, contouring, and finishing operations in CNC machining. They are suitable for machining steel, stainless steel, aluminum, and other engineering materials in a wide range of end milling operation scenarios.
Selecting the right end milling cutter geometry depends on material type, cutting depth, machine rigidity, and surface finish requirements. Factors such as flute count, helix angle, and edge preparation directly affect chip evacuation and cutting stability during the end milling process.
Yes. End milling cutters designed for aluminum feature optimized flute geometry and sharp cutting edges to prevent chip adhesion. They are widely used on CNC machining centers and aluminum end milling machine setups for high-efficiency material removal.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
Grade HN55 is made from ultrafine close to nanometer sized WC powder, with very high wear resistancet’s suitable for making miling、 drilling tools and reamers, for high-speed miling of materials with highhardness.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN55 | 9 | 0.3 | 14.50 | 93.8 | 1,960 | 3,800 | 8.0 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| AlCrSiN | Aluminium–chromium–silicon nitride coating containing Si | Hardness: not clearly specified, but the presence of Si significantly increases hardness and toughness (estimated HV＞3500). | Si forms a denser nanostructure, improving wear resistance and high-temperature stability. | Specially designed for drills, end mills and ball-nose mills and other shank-type tools. Suitable for machining high-hardness materials (such as quenched workpieces) and materials after heat treatment. |
End milling cutters are used for slotting, profiling, side milling, contouring, and finishing operations in CNC machining. They are suitable for machining steel, stainless steel, aluminum, and other engineering materials in a wide range of end milling operation scenarios.
Selecting the right end milling cutter geometry depends on material type, cutting depth, machine rigidity, and surface finish requirements. Factors such as flute count, helix angle, and edge preparation directly affect chip evacuation and cutting stability during the end milling process.
Yes. End milling cutters designed for aluminum feature optimized flute geometry and sharp cutting edges to prevent chip adhesion. They are widely used on CNC machining centers and aluminum end milling machine setups for high-efficiency material removal.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
Grade HN44F is made from submicron WC powder, some special additives added.
It’s suitable for making drills and end mills, especially for machining steel,Al-based alloys and Ti-basedalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN44F | 12 | 0.4 | 14.15 | 92.6 | 1,720 | 4,200 | 9.6 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| CrAlTiSiN | Cr: 12–16% Al: 20–24% Ti: 4–8% Si: 6–10% N: 48–52% | Ultra-high hardness: hardness can reach 38–40 GPa (e.g. CrAlSiN/TiAlSiN modulated coatings), much higher than traditional TiN or CrN. Si forms amorphous Si₃N₄, which suppresses dislocation movement and improves wear resistance. Excellent high-temperature performance: oxidation temperature up to 1000–1100°C, suitable for high-speed dry cutting. At high temperature, a dense Al₂O₃ and Cr₂O₃ oxide layer forms on the surface, slowing further oxidation. Low friction coefficient: about 0.375–0.675, depending on modulation period and Si content. Strong adhesion: with transition-layer design (such as AlCrTi alloy layer), critical load can exceed 18 N (scratch test). | High-speed cutting tools: such as mills and drills, suitable for hardened steels, titanium alloys and other difficult-to-machine materials. Mould surface reinforcement: improves wear resistance and thermal-fatigue resistance of stamping dies. Aerospace components: such as turbine-blade coatings, resisting high-temperature oxidation and particle erosion. |
End milling cutters are used for slotting, profiling, side milling, contouring, and finishing operations in CNC machining. They are suitable for machining steel, stainless steel, aluminum, and other engineering materials in a wide range of end milling operation scenarios.
Selecting the right end milling cutter geometry depends on material type, cutting depth, machine rigidity, and surface finish requirements. Factors such as flute count, helix angle, and edge preparation directly affect chip evacuation and cutting stability during the end milling process.
Yes. End milling cutters designed for aluminum feature optimized flute geometry and sharp cutting edges to prevent chip adhesion. They are widely used on CNC machining centers and aluminum end milling machine setups for high-efficiency material removal.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
Grade HN44F is made from submicron WC powder, some special additives added.
It’s suitable for making drills and end mills, especially for machining steel,Al-based alloys and Ti-basedalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN44F | 12 | 0.4 | 14.15 | 92.6 | 1,720 | 4,200 | 9.6 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| Nano-Blue | Blue surface layer: may contain AlCrN (aluminium-chromium nitride) or TiSiN (titanium–silicon nitride); the blue colour comes from nano-structured interference. Nanomultilayer structure: alternating layers such as TiN/AlN (individual layer thickness ＜50 nm) to increase hardness and thermal stability. | Hardness: 3000–4000 HV (nano-indentation). Friction coefficient: 0.1–0.3 (lower when combined with DLC). Heat resistance: stable up to 1000°C (oxidation starts above 800°C). Adhesion strength: ≥70 N (critical load in scratch test). Surface roughness: Ra ＜0.05 μm (after polishing). | Blue appearance: achieved by nano-optical thin-film design, and can serve as wear indicator (colour change shows coating loss). Self-lubricating: some Si- or WC-containing nanocoatings can form a silica-based lubricating layer at high temperature. | Recommended workpiece materials High-hardness steels (HRC＞50, such as mould steel, bearing steel). High-temperature alloys (nickel-based / titanium alloys, relying on coating heat resistance). Non-ferrous metals (aluminium and copper alloys, requiring low-friction coating to prevent built-up edge). Composites (CFRP, avoiding adverse reactions between coating and fibres). Typical application fields Aerospace: machining turbine-blade dovetails, milling titanium-alloy structural parts. Automotive moulds: high-precision cavity milling, balancing efficiency and surface quality. Medical devices: micro-machining of cobalt-chromium artificial joints. |
End milling cutters are used for slotting, profiling, side milling, contouring, and finishing operations in CNC machining. They are suitable for machining steel, stainless steel, aluminum, and other engineering materials in a wide range of end milling operation scenarios.
Selecting the right end milling cutter geometry depends on material type, cutting depth, machine rigidity, and surface finish requirements. Factors such as flute count, helix angle, and edge preparation directly affect chip evacuation and cutting stability during the end milling process.
Yes. End milling cutters designed for aluminum feature optimized flute geometry and sharp cutting edges to prevent chip adhesion. They are widely used on CNC machining centers and aluminum end milling machine setups for high-efficiency material removal.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
End milling cutters are widely applied in precision CNC machining across automotive, mold, and general engineering industries. Designed for stable and efficient end milling operation, these tools perform reliably when machining steel, stainless steel, aluminum, and non-ferrous materials under varying cutting conditions.
With optimized end milling cutter geometry, our solid carbide end milling cutters support smooth chip evacuation and consistent cutting behavior throughout the end milling process. Suitable for CNC machining centers and aluminum end milling machine setups, end milling cutters help manufacturers achieve accurate profiles, clean surfaces, and repeatable results across different machines and materials.
End milling cutters from HNCarbide are engineered to deliver high precision, durability, and machining consistency in professional CNC environments. Manufactured from premium carbide materials, these solid carbide end milling cutters maintain edge stability and dimensional accuracy during continuous end milling operation, even under demanding production conditions.
By carefully controlling end milling cutter geometry and cutting edge preparation, these end milling cutters reduce vibration, improve surface finish, and extend tool life across the full end milling process. Widely used in industrial manufacturing, tooling, and precision component production, they provide a dependable balance of performance, efficiency, and reliability.
We Are Commited To Providing High-Quality, Customized solutions At An Affordable price While Also Prioritizing sustainability And ExcellentCustomer Service, These Qualities Make Us A Great choice For Your End Milling Cutters Needs
We Only Use unground tungsten carbide rods with HlP sintering and100% virgin material. Our grade includes lsO K05 to K40, frommachining carbon steel to aluminium, non-ferrous metals andtitanium or we develop grade for your applications.
As a HNCarbide customer, you can enjoy five-axis high-precisiongrinding machines from Australia’s ANCA or Germany’s Walter. Themodern workshop with constant temperature and humidity ensuresthe accuracy of each End Milling Cutters.
Each of your tungsten steel End Milling Cutters will be sandblasted toeffectively remove burrs and improve the finish.
All HNCarbide’s End Milling Cutters will be monitored on WALTER HELICHEEK and ZOLLER GENlUS 3 to ensure that every dimension is qualified. We arecommitted to controlling the tolerance within 3 UM.
At HNCarbide, every shipment is meticulously packaged to ensure your tools arrive intact.
Each HNCarbide Solid End Milling Cutters is individually placed in a shock-resistant protective case, labeled with complete specifications, and sealed in moisture-proof packaging material before being boxed.
Large-volume orders are reinforced with double-wall cardboard boxes or wooden crates to maximize safety during international shipping.
We collaborate with reliable logistics partners to ensure goods are delivered quickly and securely to their destination via air freight, sea freight, or express courier.
End milling cutters are used for slotting, profiling, side milling, contouring, and finishing operations in CNC machining. They are suitable for machining steel, stainless steel, aluminum, and other engineering materials in a wide range of end milling operation scenarios.
Selecting the right end milling cutter geometry depends on material type, cutting depth, machine rigidity, and surface finish requirements. Factors such as flute count, helix angle, and edge preparation directly affect chip evacuation and cutting stability during the end milling process.
Yes. End milling cutters designed for aluminum feature optimized flute geometry and sharp cutting edges to prevent chip adhesion. They are widely used on CNC machining centers and aluminum end milling machine setups for high-efficiency material removal.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
If you’re trying to improve tool life, surface finish, and cycle time, it usually comes down to one thing: choosing the right end milling cutters for the job. Many machining problems that look like “program issues” are actually tool-selection problems—wrong flute count, wrong geometry, wrong helix, or a tool that doesn’t match the machine’s rigidity.
This guide answers what is end milling cutter, clarifies the end milling process definition, explains practical end milling cutter geometry, and shows how to decide between end milling vs face milling in real shop conditions.

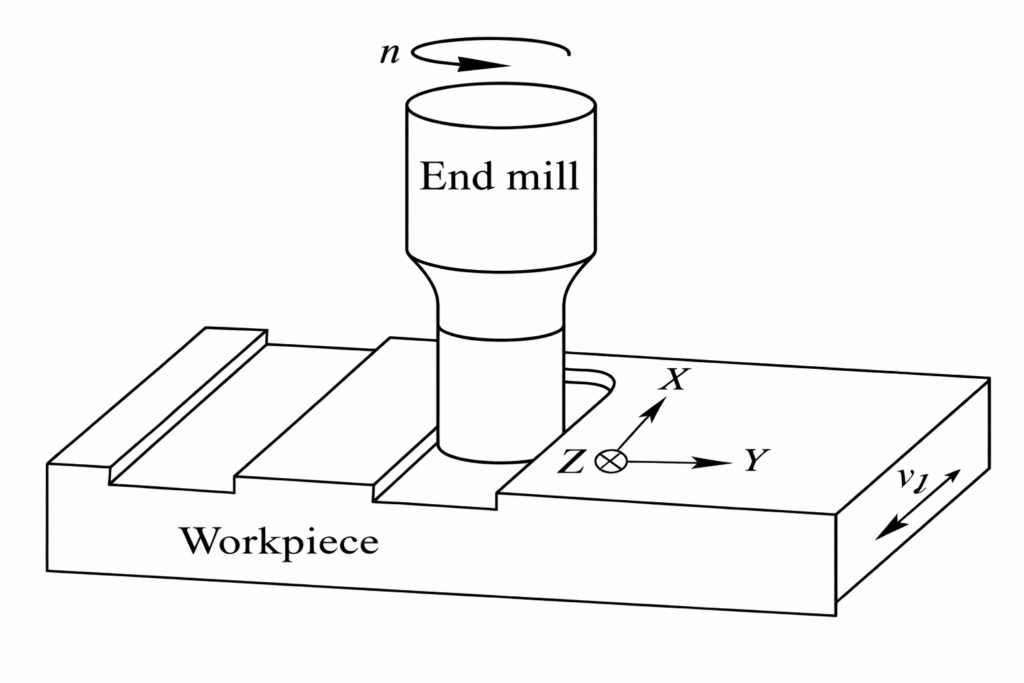

To define end milling, think of it as a milling process where a rotating cutter removes material using its peripheral edges, and often its end edges too. The end milling process definition covers operations like slotting, side milling, pocketing, contouring, and finishing—usually on a vertical machining center, but also on other end milling machine setups.
In a typical end milling operation, the cutter engages the workpiece with:
Radial engagement (stepover / width of cut)
Axial engagement (depth of cut)
Feed rate and spindle speed that control chip thickness and heat
This is why end milling cutters come in many geometries: the right geometry makes chips evacuate cleanly, keeps heat manageable, and prevents chatter.
People often compare end milling vs face milling because both remove material, but the mechanics and best-use cases differ.
Face milling is optimized for flattening large surfaces quickly. It usually uses a face mill body with inserts and cuts mainly with the tool’s face edges.
End milling cutters are better for features: slots, pockets, walls, shoulders, and 3D profiles. They cut with the tool’s side edges and can also cut with the end.
So the difference between face milling and end milling is mostly about purpose:
Use face milling for fast surfacing.
Use end milling when geometry and feature control matter.
A common workflow is: face mill for stock removal and flatness, then switch to end milling cutters for pockets, walls, and final details.
You don’t need an engineering textbook to benefit from end milling cutter geometry. If you understand these, you can predict how a tool behaves:
Fewer flutes = bigger chip space = safer for gummy materials and deep slots
More flutes = stronger core and better finishing potential in steels
That’s why 4-flute end milling cutters are common for steel, while 2–3 flutes are often favored for aluminum.
Helix influences cutting smoothness and chip lift. A tool labeled end milling cutter 20 degrees (low helix) tends to:
Reduce “pulling” forces upward
Feel more stable in certain setups
Trade some smoothness for stability in problematic conditions
Low-helix tools can help when the setup is not rigid, or when you need more control.
Square end mills: shoulders and general machining
Corner radius: stronger corners, better tool life in many steels
Ball and radius forms: 3D contours and blending with a ball end milling tool
Edge prep controls chipping vs sharpness. Core thickness impacts rigidity. If you’re fighting vibration, it’s often a geometry/core issue—not just feeds and speeds.
If you want a quick teaching aid for your team, include an end milling cutter diagram on the page (flutes, helix, core, corner, cutting edges). It helps buyers understand why one tool survives and another fails.
A solid carbide end milling cutter is typically the best choice when you need:
Higher rigidity
Better wear resistance
Better heat tolerance at higher speeds
For steels, stainless steels, and hardened materials, carbide usually wins on productivity. That’s why buyers searching for end milling cutters often filter quickly to carbide when performance matters.
For common steels, many shops use 4-flute carbide end milling cutters for a strong balance of finish and strength. If chatter appears, reduce radial engagement before you reduce feed—this can stabilize the cut without killing productivity.
Stainless punishes poor chip control and heat. Prioritize tools with geometry designed for stainless, stable chip evacuation, and conservative engagement. Flood coolant (or well-managed MQL) can help, but geometry still comes first.
If you’re machining hardened parts, match the cutter’s capability to the job. A tool targeted at end milling cutter hrc50 conditions needs stronger edge stability and heat resistance. In hardened milling, small changes in engagement can decide whether you get stable wear or sudden chipping.
For aluminum, use geometry that prevents chip welding—often fewer flutes and polished/optimized flute forms. If your shop runs a dedicated end milling machine aluminium workflow, keep aluminum-specific cutters separated to protect surface finish and avoid cross-contamination issues.
You don’t need complex formulas to use cutting force calculation for end milling as a decision tool. Think in levers:
Higher radial engagement = higher cutting force and higher vibration risk
Higher axial depth increases load, but often less destabilizing than radial width
Thicker chip (too much feed per tooth) spikes force and heat
Tool overhang, holder, and runout amplify force into chatter
A practical rule: when chatter starts, reduce radial engagement first (stepover), then consider adjusting rpm to shift away from resonance.
A ball end milling tool is the go-to for 3D surfaces, blending, and fillets where a sharp corner would leave marks. It’s common in mold and die work, and finishing passes where surface consistency matters.
Micro end milling is its own world: tiny tools magnify every weakness in runout, fixturing, and chip evacuation. If you sell micro tools, emphasize spindle quality, holder choice, and conservative engagement as much as the cutter itself.
If you’re sourcing from an end milling cutter manufacturer, the biggest risk is inconsistency batch-to-batch. Ask for measurable controls:
What tolerances are held on diameter and runout?
How is geometry consistency verified?
What’s the standard edge prep for each series?
What coating options exist for steel vs stainless vs hardened work?
These questions often reveal whether the supplier is truly controlling the process—or just producing shapes.
Choosing end milling cutters isn’t about picking a popular product name. It’s about matching the end milling cutter geometry, tool material, and engagement style to your machine and your workpiece. Use the concepts in this guide—end milling vs face milling, geometry basics, and practical force control—to get predictable finishes and longer tool life without guessing.
