Double-core geometry enhances strength and chip flow
Corner radius edge improves edge durability and reduces chipping
4-flute design balances rigidity and smooth cutting action
HB (Weldon shank) shank for strong clamping and torque resistance
Made from premium solid carbide for high wear resistance
Suitable for HPC machining with optimized tool path strategies
Tool data
Description
This HPC carbide end mill features a square profile with a reinforced double-core design and corner radius cutting edges, delivering outstanding rigidity and tool life in demanding milling operations. The 4-flute geometry ensures smooth cutting and efficient chip evacuation, making it ideal for both roughing and finishing.
Equipped with a secure HB shank (Weldon flat), this end mill provides excellent stability in high-speed and high-load machining. Designed for tough materials such as alloy steel, stainless steel, and tool steel, it offers consistent performance in dynamic and conventional milling.
1.High-performance milling in tool steel, alloy steel, stainless steel
2.Used in aerospace, mold & die, and general machining
3.Ideal for slotting, roughing, contouring, and side milling
4.Compatible with high-speed CNC machines and rigid setups

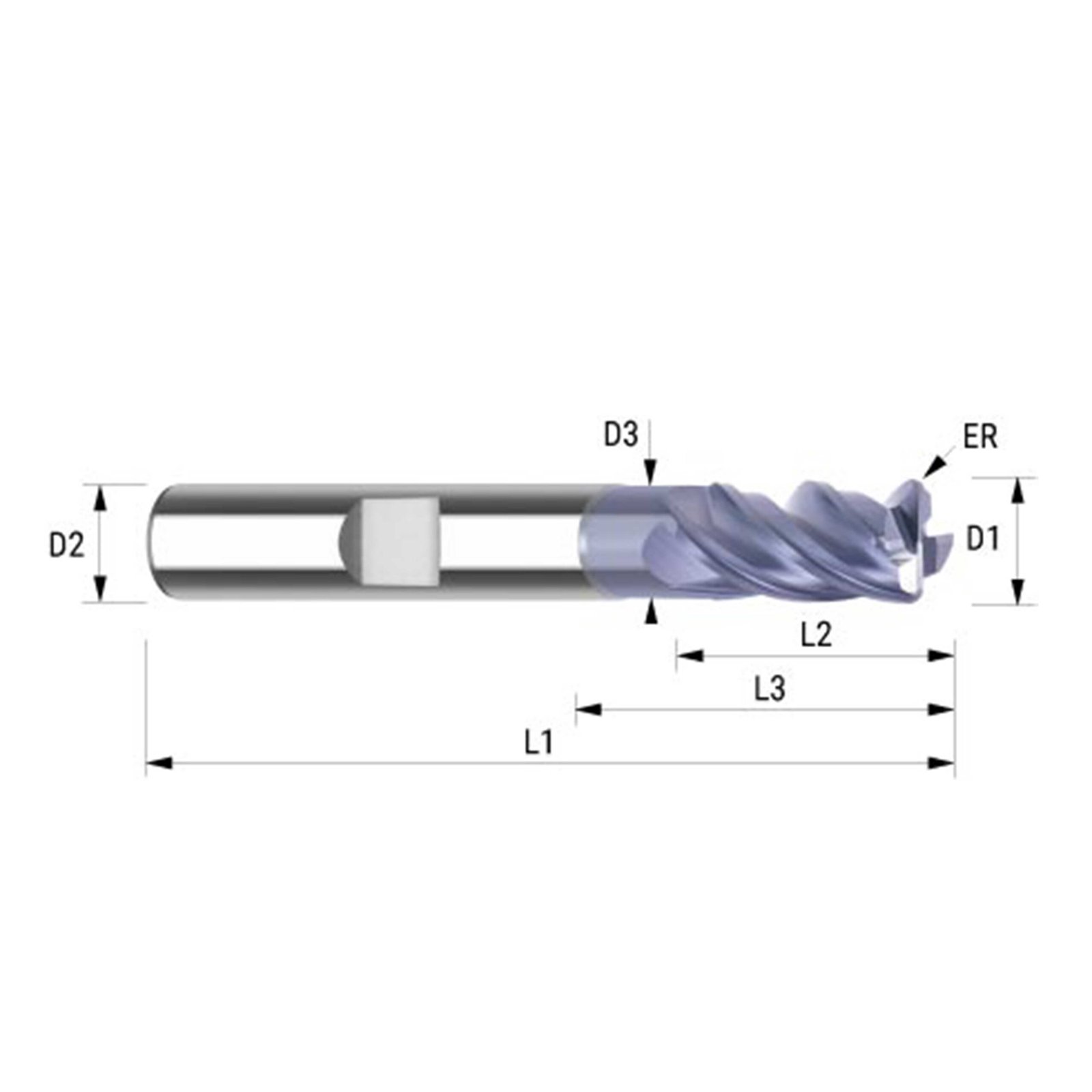

| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD5009 | DHPR-0305HB | ALCRN | Square End Mill | AF308 | 3R0.5x8xH18x6x57xZ4 |
| XD5010 | DHPR-0405HB | ALCRN | Square End Mill | AF308 | 4R0.5x11xH21x6x57xZ4 |
| XD5011 | DHPR-0505HB | ALCRN | Square End Mill | AF308 | 5R0.5x13xH21x6x57xZ4 |
| XD5012 | DHPR-0605HB | ALCRN | Square End Mill | AF308 | 6R0.5x13xH21x6x57xZ4 |
| XD5013 | DHPR-0805HB | ALCRN | Square End Mill | AF308 | 8R0.5x19xH27x8x63xZ4 |
| XD5014 | DHPR-1005HB | ALCRN | Square End Mill | AF308 | 10R0.5x22xH32x10x72xZ4 |
| XD5015 | DHPR-1205HB | ALCRN | Square End Mill | AF308 | 12R0.5x26xH38x12x83xZ4 |
| XD5016 | DHPR-1605HB | ALCRN | Square End Mill | AF308 | 16R0.5x40xH50x16x92xZ4 |
| XD5017 | DHPR-2005HB | ALCRN | Square End Mill | AF308 | 20R0.5x50xH60x20x104xZ4 |
| XD5018 | DHPR-0310HB | ALCRN | Square End Mill | AF308 | 3R1.0x8xH18x6x57xZ4 |
| XD5019 | DHPR-0410HB | ALCRN | Square End Mill | AF308 | 4R1.0x11xH21x6x57xZ4 |
| XD5020 | DHPR-0510HB | ALCRN | Square End Mill | AF308 | 5R1.0x13xH21x6x57xZ4 |
| XD5021 | DHPR-0610HB | ALCRN | Square End Mill | AF308 | 6R1.0x13xH21x6x57xZ4 |
| XD5022 | DHPR-0810HB | ALCRN | Square End Mill | AF308 | 8R1.0x19xH27x8x63xZ4 |
| XD5023 | DHPR-1010HB | ALCRN | Square End Mill | AF308 | 10R1.0x22xH32x10x72xZ4 |
| XD5024 | DHPR-1210HB | ALCRN | Square End Mill | AF308 | 12R1.0x26xH38x12x83xZ4 |
| XD5025 | DHPR-1610HB | ALCRN | Square End Mill | AF308 | 16R1.0x40xH50x16x92xZ4 |
| XD5026 | DHPR-2010HB | ALCRN | Square End Mill | AF308 | 20R1.0x50xH60x20x104xZ4 |
Double-core geometry improves rigidity and chip control
Corner radius cutting edge reduces breakage and enhances tool life
4-flute design ensures smooth cutting and consistent surface finish
HA straight shank for high concentricity and stable clamping
Made from high-quality solid carbide for heat and wear resistance
Optimized for HPC (High Performance Cutting) applications
Tool data
Description
This HPC solid carbide end mill features a square-end profile with a corner radius and a high-rigidity double-core design, tailored for high-speed and high-load cutting. The HA shank (straight shank) ensures superior concentricity and is ideal for high-precision tool holders.
With 4 flutes, it offers excellent balance between strength and chip evacuation, delivering reliable performance in roughing and semi-finishing applications. The corner radius enhances edge durability, while the double-core geometry provides added strength in tough materials such as alloy steels and stainless steels.
1.Designed for mold making, automotive, aerospace, and general engineering
2.Suitable for alloy steel, stainless steel, tool steel, and hardened materials
3.Ideal for slotting, contouring, and dynamic milling in high-speed CNC machines
4.Compatible with precision collet chucks and shrink-fit holders
| Code | Order Number | Coating | Name | Material | Description(dxLcxDxLxT) |
|---|---|---|---|---|---|
| XD5027 | DHPR-0305HA | ALCRN | Square End Mill | AF308 | 3R0.5x8xH18x6x57xZ4 |
| XD5028 | DHPR-0405HA | ALCRN | Square End Mill | AF308 | 4R0.5x11xH21x6x57xZ4 |
| XD5029 | DHPR-0505HA | ALCRN | Square End Mill | AF308 | 5R0.5x13xH21x6x57xZ4 |
| XD5030 | DHPR-0605HA | ALCRN | Square End Mill | AF308 | 6R0.5x13xH21x6x57xZ4 |
| XD5031 | DHPR-0805HA | ALCRN | Square End Mill | AF308 | 8R0.5x19xH27x8x63xZ4 |
| XD5032 | DHPR-1005HA | ALCRN | Square End Mill | AF308 | 10R0.5x22xH32x10x72xZ4 |
| XD5033 | DHPR-1205HA | ALCRN | Square End Mill | AF308 | 12R0.5x26xH38x12x83xZ4 |
| XD5034 | DHPR-1605HA | ALCRN | Square End Mill | AF308 | 16R0.5x40xH50x16x92xZ4 |
| XD5035 | DHPR-2005HA | ALCRN | Square End Mill | AF308 | 20R0.5x50xH60x20x104xZ4 |
| XD5036 | DHPR-0310HA | ALCRN | Square End Mill | AF308 | 3R1.0x8xH18x6x57xZ4 |
| XD5037 | DHPR-0410HA | ALCRN | Square End Mill | AF308 | 4R1.0x11xH21x6x57xZ4 |
| XD5038 | DHPR-0510HA | ALCRN | Square End Mill | AF308 | 5R1.0x13xH21x6x57xZ4 |
| XD5039 | DHPR-0610HA | ALCRN | Square End Mill | AF308 | 6R1.0x13xH21x6x57xZ4 |
| XD5040 | DHPR-0810HA | ALCRN | Square End Mill | AF308 | 8R1.0x19xH27x8x63xZ4 |
| XD5041 | DHPR-1010HA | ALCRN | Square End Mill | AF308 | 10R1.0x22xH32x10x72xZ4 |
| XD5042 | DHPR-1210HA | ALCRN | Square End Mill | AF308 | 12R1.0x26xH38x12x83xZ4 |
| XD5043 | DHPR-1610HA | ALCRN | Square End Mill | AF308 | 16R1.0x40xH50x16x92xZ4 |
| XD5044 | DHPR-2010HA | ALCRN | Square End Mill | AF308 | 20R1.0x50xH60x20x104xZ4 |
