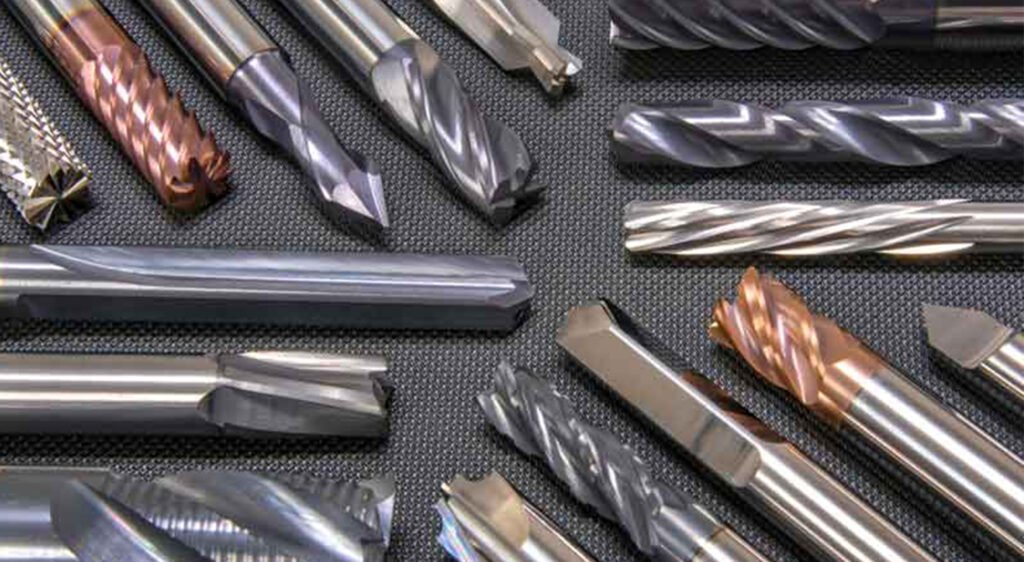

Comprehensive Guide to Carbide Unequal Pitch End Mills

Carbide unequal pitch end mills represent one of the most innovative advancements in modern milling tool design. Unlike traditional equal pitch cutters, these tools utilize an asymmetrical tooth spacing—either along the circumference or the axial direction of the tool. This deliberate irregularity effectively disrupts harmonic vibrations, enhances stability, and delivers higher productivity across a wide range of materials, particularly those considered difficult to machine.

This article provides a full-scale analysis of unequal pitch end mills, covering their working principles, benefits compared with equal pitch tools, main application fields, and advanced design concepts. In addition, we will introduce HNCarbide’s proprietary 60 HRC, 4-flute carbide unequal pitch end mill for steel, a product designed to meet the growing demand for high-performance machining solutions.

Functional Advantages of Unequal Pitch End Mills

Vibration and Noise Reduction

Breaking periodic cutting forces:Unequal pitch spacing prevents resonance by interrupting the cyclical nature of cutting forces. This makes the process more stable and significantly reduces chatter and noise.
Improved surface finish:With vibration suppressed, the surface roughness (Ra) decreases, producing finer finishes especially valuable in high-speed machining.

Extended Tool Life

Even load and heat distribution: By preventing the simultaneous peak loading of all cutting edges, wear is more evenly spread across the tool.

Suitable for interrupted cutting: The stable engagement supports slotting and interrupted cuts without premature edge chipping.

Higher Productivity

Increased feed rates: Tools can sustain higher feed per tooth while maintaining surface quality.

Greater material removal rates (MRR): Reduced cutting resistance allows faster metal removal, directly increasing shop efficiency.

Machining of Hard-to-Cut Materials

Carbide as a substrate already offers high hardness and thermal resistance, and the unequal pitch design further enhances its capability. Applications include:

High-hardness steels: Quenched steels (>HRC45), mold steels (e.g., H13), hardened tool steels.

Superalloys: Nickel-based alloys (Inconel 718), titanium alloys (Ti-6Al-4V).

Stainless steels: 304, 316, and other grades prone to built-up edge.

Non-ferrous and composites: Aluminum alloys (with improved anti-burr performance), carbon fiber reinforced plastics (CFRP), and glass fiber composites (preventing delamination).

Advantages Compared to Equal Pitch End Mills

Factor	Unequal Pitch End Mill	Equal Pitch End Mill
Vibration Control	Excellent – resists resonance, ideal for thin-walled parts	Average – prone to chatter
Surface Quality	Smooth finish, lower Ra	May leave vibration marks
Tool Life	Longer, uniform wear	Shorter, localized wear
Suitable Materials	High-hardness, sticky, or composite materials	General-purpose steels and cast iron
Productivity	Higher feed rates possible	Limited feed rates
Cost	Higher upfront cost	Lower

Application Fields

Unequal pitch end mills are widely used in industries where performance and reliability are crucial:

Aerospace – Milling of titanium alloys and nickel-based superalloys for structural and engine components. Stable cutting avoids micro-cracks and dimensional inaccuracies.

Mold Manufacturing – Precision machining of hardened mold steels such as SKD11 or H13 with superior surface finish.

Medical Devices – Machining of stainless steel (316L), cobalt-chromium alloys, and titanium implants where precision is critical.

Automotive – Efficient milling of cast iron engine blocks and high-speed machining of aluminum gearbox housings.

Energy Sector – Processing turbine blades and gas turbine components from high-temperature resistant alloys.

Variants of Unequal Pitch Designs

Axial Unequal Pitch (End Tooth Variation)

Effect: Reduces axial cutting force oscillations, preventing tool “dig-in” during deep cavity milling.

Applications: Cavity roughing, face milling, and step machining.

Circumferential Unequal Pitch with Variable Helix

Effect: Distributes radial cutting forces across different frequencies, suppressing harmonic vibration.

Applications: Thin-walled aerospace structures, stainless steel tubes, high-feed side milling.

Three Main Unequal Cutting Strategies

Unequal Cutting Edge Spacing

By staggering the radial entry points of each flute, different cutting frequencies overlap, damping vibration.

Unequal Helix Angles

Flutes have slightly different helix angles, generating micro-frequency interference. This dramatically reduces the chance of resonance and allows higher feed rates.

Unequal Lead (Pitch Length)

Small variations in flute lead angles balance chip load and improve stability at high speeds.

Best combined with strong tool holders for rigidity.

Design Considerations for High-Speed Machining

The rise of advanced CAM strategies (e.g., trochoidal or dynamic milling) has influenced end mill design:

Carbide Grade: Fine-grain tungsten carbide for strength and thermal stability.

Flute Count: 5, 6, or even 7 flutes can maximize feed while keeping chip thickness low.

Helix Angle: Balanced between 38°–48°. Larger helix favors smoother cutting but reduces chip space, while smaller helix increases cutting force.

Chip Breaker Geometry: Helps reduce chip length during deep axial cuts.

Core Thickness: 70–75% of cutter diameter to reinforce rigidity and reduce deflection.

Corner Geometry: Chamfered or radiused edges prolong tool tip life.

Coatings: TiAlN, AlCrN, or tailored multilayer coatings for heat resistance and anti-wear properties.

Case Study – HNCarbide 60 HRC 4-Flute Unequal Pitch End Mill for Steel

At HNCarbide, we have developed a high-performance unequal pitch end mill designed for machining hardened steels up to 60 HRC.

Key Specifications:

Material: Premium ultra-fine grain tungsten carbide

Hardness Range: Optimized for hardened steels 50–60 HRC

Design: 4 flutes, unequal pitch, variable helix

Helix Angle: 42°–45° for balance between cutting smoothness and rigidity

Core Thickness: 72% of diameter for high stiffness

Corner Geometry: Optional corner radius (R0.5–R2.0) or 45° chamfer to extend tool life

Coating: TiSiN-based nano-coating for superior heat and wear resistance

Size Range: Ø4 mm to Ø20 mm standard; custom dimensions available

Performance Advantages:

Suppresses chatter even in deep cavity or thin-wall applications.

Achieves smooth surface finish with Ra < 0.4 µm on hardened tool steels.

Enables high feed machining, reducing cycle time by up to 25%.

Extended tool life compared to conventional equal pitch cutters, reducing overall tooling cost.

Selection Guidelines

When to Prefer Unequal Pitch End Mills:

Machining high-hardness or sticky materials (e.g., titanium, stainless steels).

Working on machines with limited rigidity (vertical machining centers).

Applications requiring superior surface quality (optical molds, precision parts).

When Equal Pitch End Mills Still Suffice:

Processing low-carbon steel or cast iron.

Low-cost, high-volume jobs where surface finish is not critical.

Conclusion

Carbide unequal pitch end mills have revolutionized machining by breaking the cycle of vibration and resonance that limits the performance of conventional equal pitch tools. Their benefits—longer tool life, better surface quality, and higher productivity—make them indispensable in aerospace, mold manufacturing, medical devices, and other precision-demanding industries.

HNCarbide’s 60 HRC, 4-flute carbide unequal pitch end mill demonstrates how these principles can be applied in a practical, high-performance tool tailored for hardened steels. By integrating unequal cutting edge design, variable helix geometry, and advanced coatings, it delivers reliable results in the most demanding environments.

While the initial cost is higher, the long-term advantages in efficiency, tool life, and quality make unequal pitch end mills a superior choice for manufacturers seeking competitive advantage in advanced machining.
