Buying Guide for Swiss-Type CNC Lathe Tooling in the German Market
Table of Contents
Swiss-type CNC lathes have earned their place as sliding headstock lathes, and they indeed sit at the heart of precision manufacturing in Germany. Industries requiring micrometre-level accuracy, such as those involved in medical apparatus, fine watchmaking, or high-performance automotive parts, find an application for these tools.
Tooling becomes an important factor in these lathes because they are made for fine, high-value work. The final product depends directly upon the sharpness of an insert, the life of a drill, or the accuracy of an end mill. Good tooling keeps holding tolerance, reduces downtime, and maintains the finish quality that customers demand.
In this blog, we will discuss the essentials of Swiss-type CNC lathe tooling in the German market, helping you make choices that balance performance, cost, and reliability.
Common Tooling Categories for Swiss-Type CNC Lathes
Swiss-type CNC lathes require special tooling if they are going to maintain repeatable accuracy. You select drills, end mills, inserts, and special cutters based on the needs of that particular part. Tooling has a direct effect on speed, accuracy, and surface finish; therefore, the setup of the tooling determines the performance of the machine as a whole.
External Turning Tools
External turning tools manage the exterior of components on a Swiss-type CNC lathe. You position them near the guide bushing, which helps to keep vibration in check and also enhances stability. This will enable you to achieve very accurate cutting of long, slender components.
Common benefits of external turning tools include:
- Smooth surface finishes
- Stable operation for long parts
- Consistent tolerances in high-volume runs
You rely on these tools for both roughing and finishing. Insert geometry, cutting-edge quality, and coating have direct impacts on chip flow, tool life, and efficiency in running it.
In a demanding run, having the correct turning setup decreases the amount of tool change and cycle time so that every part can be made within spec coming out of the machine, be it a medical screw or even a precision automotive pin.
Drilling Tools
Drill Bit Product
Catalog
Click the button below to view our DIN milling cutters catalog and explore detailed product specifications to make the best choice.
Drilling tools open up accurately holes inside slight-diameter parts on a Swiss type CNC lathe. Since this machine covers such items as medical implants, watch pieces, and small automobile pins, the accuracy of drilling has much to do with its performance as well as its reliability.
Advantages of drilling tools include:
- High concentricity for clean hole entry
- Strong edge geometry for chip evacuation
- Capability to handle hardened steels with coated carbide drills
Choose between solid carbide micro drills, high-performance twist drills, or step drills based on the hole size and depth required. For instance, use a 1/16 end mill for small hole machining; use other larger tools like a 1 1/4 end mill when performing heavier operations.
Coolant-through drills are also being used in many setups to increase tool life and maintain smooth cutting during long-run production.
Threading Tools
Swiss CNC lathes use thread-cutting tools of great quality to form inside and outside threads on complex pieces. These tools must withstand the rigors of hard materials while maintaining a very small range of allowable error, as required by the medical, watch, and car-making industries.
The best end mill options provide extra flexibility when Swiss machines require thread relief milling or small slotting operations.

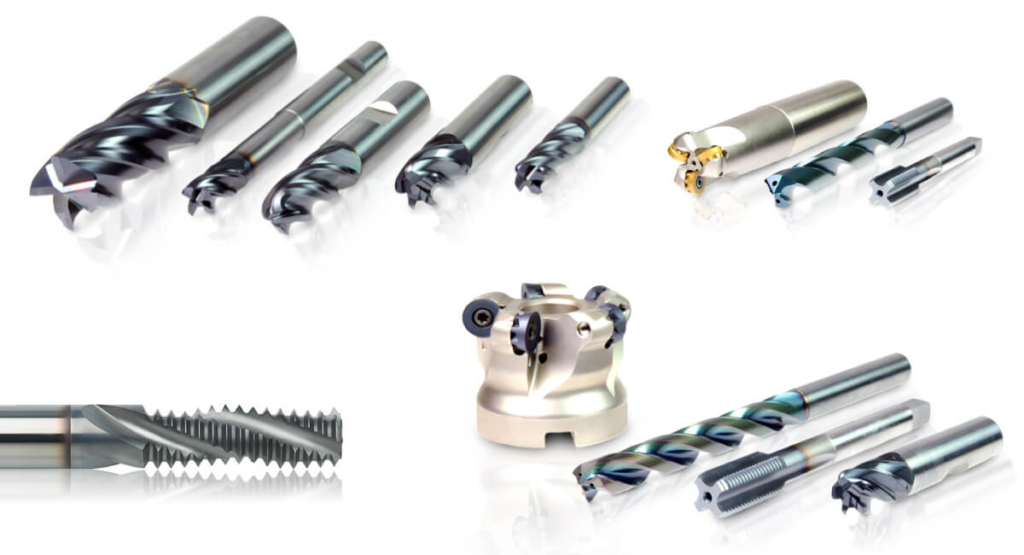

Milling Tools
DIN Milling Cutters Catalog
Click the button below to view our DIN milling cutters catalog and explore detailed product specifications to make the best choice.
Milling tools create cross-holes, slots, or flat surfaces on precision parts. Slots made by end mills for aluminum are high-performance and will take delicate features without introducing chatter. Multi-flute cutters support fast material removal. Chamfering end mill adds sharp edges to the part, making deburring time minimal, and also gives a good finish to the entire part.
Stores frequently maintain various cutters, from a 1/16 end mill used for micro features to a 1 1/4 end mill applied for heavy cuts. The most appropriate choices of end mills are those that can balance tool life with surface quality and give confidence to the operator in the long run of production. Mixing such tools with Swiss-type accuracy delivers geometry consistency and reduced secondary operations.

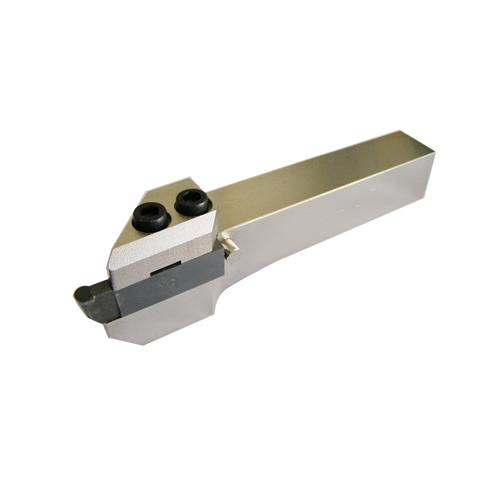

Cut-off Tools
Reliable cut-off operations define productivity and part integrity on a Swiss type CNC lathe. Precision cut-off tools to separate finished components from the bar stock with minimum burrs and consistent accuracy. The geometry and coating of the tool directly influence surface quality and cycle times.
Modern carbide grades and optimised insert shapes allow operators to cut even tough alloys while maintaining stability. By pairing high-quality cut-off tooling with proper coolant supply, shops reduce secondary fini\shing and protect the lathe from unnecessary vibration or tool stress. In high-volume runs, these tools help deliver parts that meet exact specifications every time.

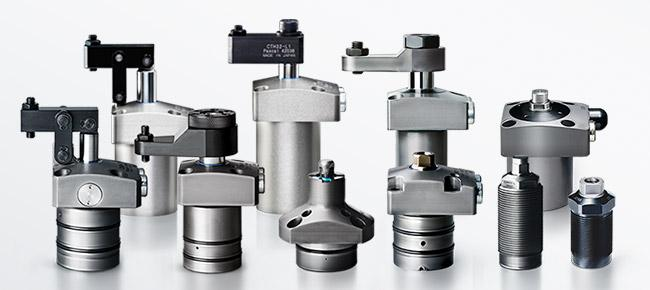

Workholding Accessories
One of the major factors that contributes to the successful operation of a Swiss-type CNC lathe is the provision of stable workholding. Even the slightest vibration can cause precision to decline. To keep the material rigid and aligned during high-speed operations, collets, guide bushings, and bar feeders are used. These are the main components of the machine that provide the material with a stable support.
The use of the right accessories not only prolongs the life of the tools but also provides regular and stable machining of small-diameter parts. As a result of the combination of a reliable workholding system with a good quality cut-off tool and end mill for aluminum, each part will be accurate and free from burrs.
Purchasing Guide: How to Select the Right Tooling
One of the most important decisions in the whole process of running a Swiss-type CNC lathe is the selection of the tooling. The correct option will not only improve the accuracy of the parts but also extend the life of the tool, and keep your production stable. On the other hand, an incorrect choice will lead to the process being slower than usual, produce more scrap, and increase expenses.
Match Tool to Material
Every time a material comes into contact with the cutting edge, it reacts differently. There is no single tool that could do everything. The correct selection of tools, matching the workpiece material, will not only lower the wear but also eliminate chatter and assure a good finish.
This stage is crucial for a Swiss-type CNC lathe because the machine is usually working on small-diameter parts where the slightest inaccuracy is still quite visible.
Material | Recommended Tooling Approach | Why It Works Best |
Stainless Steel | Rigid carbide turning inserts, coated drills | Handles hardness, resists wear, and maintains edge strength |
Aluminum Alloys | Polished inserts, uncoated carbide or PCD cutters | Reduces built-up edge, produces smooth finishes |
Brass/Copper | Sharp high-positive inserts, micro carbide drills | Minimizes burrs, improves chip flow |
Titanium | Coated carbide (TiAlN, AlCrN) with strong geometry | Withstands high heat, reduces tool failure |
Hardened Steel | CBN inserts, rigid support tools | Maintains accuracy under extreme hardness |
Check Standard Compliance
When you are working across multiple machines or in the process of replacing worn tooling, consistency is of great importance to you. This is the reason why it is important to choose the tools that meet the DIN and ISO specifications.
These standards secure the following attributes:
- Interchangeability:The tools that are in accordance with these standards can be properly fitted into various machines without the need to make adjustments.
- Reliability:All the dimensions, the tolerances, and the performance aspects follow a set reference point that has been tested and proven to be accurate.
- Global compatibility: Simpler to find replacements or spare parts regardless of the supplier.
Using tools that adhere to standards significantly reduces the downtime caused by problems in toolholders, collets, or cutting inserts, thereby eliminating the need for manual tool adjustments.
Consider Coolant Capability
Coolant delivery is a fundamental factor that influences the tool life, chip evacuation, and surface quality. Coolant-through configurations have a substantial impact on the performance of operations such as deep hole drilling or threading, which are the most affected by heat and chip accumulation. The reason is that the cutting edge gets the coolant faster, the chips are more efficiently removed, and the tool wear is lower when the coolant is flowing directly through the tool.
Shops that switch to coolant-through tools often see longer tool life, fewer tool changes, and more stable part quality over long production runs. It’s a simple upgrade that pays off in productivity and consistency.
Evaluate Tool Life vs. Price
When it comes to buying tooling, the price is usually the first aspect that comes to mind, and people tend to overlook the quality of the tool. Unplanned tool changes disrupt the production flow, increase the setup time, and introduce the possibility of having parts with different characteristics. Extending the life of the tool is the best way to prevent these types of interruptions and keep productivity at a high level.
It is not always the case that the lowest price wins at the end of the day. In fact, sometimes a higher investment may bring back the money many times over in the long run. For instance, one high-quality tool that lasts 30-40% longer than a low-budget alternative is an excellent way to reduce machine downtime, decrease the amount of waste from production, and bring down the price per part. In large-volume productions, such variance is magnified in the form of huge savings.
In no case should the purchase price be the only deciding factor. Along with the purchase price, the seller should convince the buyer to adopt the total cost of ownership approach. Investing in better quality tools will make a difference in the profitability of the corner, especially when working with accuracy, which will require tight schedules and a zero-delay philosophy.
Ask for Trial Samples
Before committing to a bulk purchase, request trial samples from the tooling supplier. Testing tools in actual production conditions is the most reliable way to see how they perform on your Swiss-type CNC lathe. It demonstrates their ability to handle your specific materials, part geometries, and cycle times effectively.
Running a short trial also helps confirm tool life, surface finish, and dimensional accuracy. Some suppliers provide test samples at no charge, while others may ask for a small initial order. Either way, the insights you gain from real-world testing are far more valuable than relying only on catalog specifications.
To make the most of your trial runs, document essential performance factors. A structured evaluation gives you a clear picture of which tools justify a larger investment.
Tool Evaluation Checklist:
- Part Finish:Does the tool deliver the required surface quality?
- Wear Patterns:How quickly does wear appear, and is it predictable?
- Tool Life:How many parts can you produce before replacement?
- Cycle Time Impact:Does the tool speed up or slow down machining?
- Dimensional Accuracy:Do finished parts meet tight tolerance requirements?
A few hours of structured testing with trial samples can prevent costly mistakes and help you invest only in tooling that supports reliable, efficient production.
Look for Supplier Support
Choosing the proper Swiss-type CNC lathe tooling that fits your needs and is convenient for you involves more than just selecting inserts or end mills from a catalog. See the supplier’s capability to provide technical assistance that aligns with your production requirements.
A good supplier should not only be able to come up with the best geometries for your materials but also measure the cutting parameters for different machinings and production strategies to decrease the cycle time or increase the cutting tool life.
The role of after-sales support cannot be overlooked. For example, in cases of premature wear, unanticipated vibration, and difficulty in chip evacuation, an experienced supplier can provide support in identifying the root cause of the problem and suggesting modifications with the help of the staff.
Many German manufacturers rely on partners that provide not only the technical guidance but also the logistical support, which includes fast delivery of products and assistance in the introduction of new tools in the current setup at the factory.
Working hand in hand with a supplier who views the relationship as a partnership, rather than a transaction, is highly beneficial, as it provides access to the know-how that can help improve every production run. This kind of service is usually the differentiating factor between average and excellent performance in precision machining.
Why Work with Specialised Suppliers
The right supplier can make as much of a difference as the tooling itself. Specialised partners understand German machining standards and provide solutions tailored for Swiss-type CNC lathe operations.
- Expert knowledge of DIN/ISO standardsfor seamless integration.
- Reliable stock and fast deliveryof DIN-standard tooling.
- Technical guidanceon cutting parameters and geometry selection.
- Flexible optionswith both standard and custom tooling.
Working with such suppliers means fewer risks, consistent performance, and stronger long-term reliability across precision-driven industries.
Conclusion
Every efficient Swiss type CNC lathe operation is centred on the right tooling. Medical, automotive, and watchmaking industries demand consistency, reliability, and maximum performance from each setup. A partner like HN Carbide not only provides you with micro carbide drills of high quality, chamfering end mills, and cut-off tools, but also with a complete solution that ensures accuracy, tool life, and reduces the overall cost of parts.
