This ball nose end mill is made from ultra-fine carbide and hardened to 55 HRC, providing stable performance for finishing and light roughing in steel, stainless steel and cast iron. The 2 flute ball nose end mill design offers large chip space and smooth evacuation, making it ideal as a ball nose end mill for aluminum and other non-ferrous materials as well.
As a precision carbide ball nose end mill, it delivers excellent surface finish on 3D contours, moulds and dies while maintaining good tool life under high-speed machining. Available in popular ball nose end mill sizes from small diameters for fine details to larger tools for cavity milling, it is a reliable option for CNC machining centers and engraving machines in daily production.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| TiSiN | Ti (titanium): main element, forms TiN nanocrystalline phase. Si (silicon): usually 6–10%, forms amorphous Si₃N₄ phase, refines grains and increases hardness. N (nitrogen): combines with Ti and Si to form a composite structure. | Colour: TiSiN coatings usually appear bronze or dark grey-bronze; exact colour depends on Si content, deposition process (such as PVD) and thickness (1–4 μm). Hardness: 34–42 GPa (≈3400–4200 HV). Friction coefficient: 0.3–0.6 (against steel). Temperature resistance: 1000–1200°C (oxidation resistance). Coating thickness: 1–5 μm (typically 2–3 μm). Deposition temperature: 200–400°C (suitable for carbide tools). | Ultra-high hardness: amorphous Si₃N₄ phase suppresses dislocation movement, giving much higher hardness than TiN (~23 GPa) and TiAlN (~35 GPa). High-temperature stability: suitable for dry cutting and high-speed machining (e.g. quenched steels HRC 60+). Anti-adhesion: reduces built-up edge when machining aluminium alloys, stainless steels and other sticky materials. | Tool coatings: drills, mills (especially suitable for PCB routers, tool life increased by 2–3 times). High-speed cutting of quenched steels, titanium alloys and high-nickel alloys. Mould strengthening: die-casting moulds and stamping dies, improving wear resistance. Industrial parts: piston rings and other high-temperature wear parts. |
Our ball nose end mill drawings clearly show key ball nose end mill dimensions such as diameter, radius, flute length and overall length. This helps you confirm the right ball nose end mill sizes for your CNC setup and machining depth before ordering.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
This ball nose end mill is manufactured from premium micro-grain carbide and hardened to 55 HRC, delivering stable performance and long tool life in mould, die and 3D contour machining. The 4 flute ball nose end mill design provides higher rigidity and more cutting edges, allowing higher feed rates and excellent surface finish on steels, stainless steels and pre-hardened materials.
As a high-precision carbide ball nose end mill, it is ideal for finishing profiles, slots and cavities on CNC machining centers. Available in multiple ball nose end mill sizes, it covers a wide range of ball nose end mill applications from fine detail work to general cavity milling in daily ball nose end mill cnc production.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| TiSiN | Ti (titanium): main element, forms TiN nanocrystalline phase. Si (silicon): usually 6–10%, forms amorphous Si₃N₄ phase, refines grains and increases hardness. N (nitrogen): combines with Ti and Si to form a composite structure. | Colour: TiSiN coatings usually appear bronze or dark grey-bronze; exact colour depends on Si content, deposition process (such as PVD) and thickness (1–4 μm). Hardness: 34–42 GPa (≈3400–4200 HV). Friction coefficient: 0.3–0.6 (against steel). Temperature resistance: 1000–1200°C (oxidation resistance). Coating thickness: 1–5 μm (typically 2–3 μm). Deposition temperature: 200–400°C (suitable for carbide tools). | Ultra-high hardness: amorphous Si₃N₄ phase suppresses dislocation movement, giving much higher hardness than TiN (~23 GPa) and TiAlN (~35 GPa). High-temperature stability: suitable for dry cutting and high-speed machining (e.g. quenched steels HRC 60+). Anti-adhesion: reduces built-up edge when machining aluminium alloys, stainless steels and other sticky materials. | Tool coatings: drills, mills (especially suitable for PCB routers, tool life increased by 2–3 times). High-speed cutting of quenched steels, titanium alloys and high-nickel alloys. Mould strengthening: die-casting moulds and stamping dies, improving wear resistance. Industrial parts: piston rings and other high-temperature wear parts. |
Our ball nose end mill drawings clearly show key ball nose end mill dimensions such as diameter, radius, flute length and overall length. This helps you confirm the right ball nose end mill sizes for your CNC setup and machining depth before ordering.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
The HM series ball nose end mill is a high-performance tool designed for 3D contouring, moulds, dies and cavity work on CNC machining centers and routers. Made from premium carbide, this carbide ball nose end mill combines sharp cutting edges with strong wear resistance for stable finishing and light roughing.
With its open flute design, the 2 flute ball nose end mill provides excellent chip evacuation, making it especially suitable for aluminum, copper and other non-ferrous alloys, as well as low- to medium-carbon steels. Available in multiple ball nose end mill sizes, the HM series covers a wide range of ball nose end mill applications for precision cnc ball nose end mill machining.
Grade HN55 is made from ultrafine close to nanometer sized WC powder, with very high wear resistancet’s suitable for making miling、 drilling tools and reamers, for high-speed miling of materials with highhardness.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN55 | 9 | 0.3 | 14.50 | 93.8 | 1,960 | 3,800 | 8.0 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| AlCrSiN | Aluminium–chromium–silicon nitride coating containing Si | Hardness: not clearly specified, but the presence of Si significantly increases hardness and toughness (estimated HV＞3500). | Si forms a denser nanostructure, improving wear resistance and high-temperature stability. | Specially designed for drills, end mills and ball-nose mills and other shank-type tools. Suitable for machining high-hardness materials (such as quenched workpieces) and materials after heat treatment. |
The GM series ball nose end mill is engineered for high-speed 3D profiling, mould and die work on steel, stainless steel and alloy materials. Made from fine-grain carbide, this carbide ball nose end mill offers stable cutting, high wear resistance and an excellent surface finish in continuous production.
With its large flute space, the 2 flute ball nose end mill ensures smooth chip evacuation, making it very effective as a ball nose end mill for aluminum and other non-ferrous alloys on ball nose end mill cnc machines. Available in a wide range of ball nose end mill sizes, the GM series covers everything from fine detail machining to general cavity milling.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
Grade HN40 is made from submicron WC powder, some speclal additlves added to optimize theproperties with good combination of hardness and toughness.
Its suitable for making drills and miling tools for machining stainless steel, tool steel and heat-resistingalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN40 | 10 | 0.8 | 14.45 | 91.8 | 1,580 | 3,600 | 11.8 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| ALCRN | Al: 18–32% Cr: 10–25% N: 45–57% | Hardness: 2800–3200 HV (≈30–32 GPa) Thickness: 1–5 μm (typically 3–4 μm in applications) Oxidation temperature: 1000–1100°C (short-term up to 1100°C) Deposition temperature: ＜500°C (suitable for HSS and carbide substrates) | Red hardness: maintains hardness even at 1100°C, better than TiAlN (whose hardness drops above about 900°C). Adhesion: critical load up to 40 N (with optimized process). Wear resistance: suitable for high-speed cutting and dry machining, especially effective on stainless steels and alloy steels. | Cutting tools: end mills, gear cutters, drills (e.g. Balinit Alcorna series). Moulds: aluminium die-casting moulds, stamping tools. Industrial parts: piston rings, high-temperature wear-resistant parts (combined with suitable interlayer design). |
Our ball nose end mill drawings clearly show key ball nose end mill dimensions such as diameter, radius, flute length and overall length. This helps you confirm the right ball nose end mill sizes for your CNC setup and machining depth before ordering.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
This high-performance ball nose end mill is made from ultra-fine carbide and hardened to 65 HRC, then finished with a Blue Nano coating for excellent wear resistance and heat stability. As a premium hrc65 ball nose end mill, it is ideal for high-speed finishing of hardened steel moulds, dies and precision 3D surfaces.
The 2-flute design provides sharp cutting edges and large chip space, making this 2 flute ball nose end mill suitable for stable cnc ball nose end mill machining with fine surface finish. Available in multiple ball nose end mill sizes, it is a reliable carbide ball nose end mill choice for demanding ball nose end mill application in mould making and precision parts manufacturing.
Grade HN44F is made from submicron WC powder, some special additives added.
It’s suitable for making drills and end mills, especially for machining steel,Al-based alloys and Ti-basedalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN44F | 12 | 0.4 | 14.15 | 92.6 | 1,720 | 4,200 | 9.6 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| CrAlTiSiN | Cr: 12–16% Al: 20–24% Ti: 4–8% Si: 6–10% N: 48–52% | Ultra-high hardness: hardness can reach 38–40 GPa (e.g. CrAlSiN/TiAlSiN modulated coatings), much higher than traditional TiN or CrN. Si forms amorphous Si₃N₄, which suppresses dislocation movement and improves wear resistance. Excellent high-temperature performance: oxidation temperature up to 1000–1100°C, suitable for high-speed dry cutting. At high temperature, a dense Al₂O₃ and Cr₂O₃ oxide layer forms on the surface, slowing further oxidation. Low friction coefficient: about 0.375–0.675, depending on modulation period and Si content. Strong adhesion: with transition-layer design (such as AlCrTi alloy layer), critical load can exceed 18 N (scratch test). | High-speed cutting tools: such as mills and drills, suitable for hardened steels, titanium alloys and other difficult-to-machine materials. Mould surface reinforcement: improves wear resistance and thermal-fatigue resistance of stamping dies. Aerospace components: such as turbine-blade coatings, resisting high-temperature oxidation and particle erosion. |
Our ball nose end mill drawings clearly show key ball nose end mill dimensions such as diameter, radius, flute length and overall length. This helps you confirm the right ball nose end mill sizes for your CNC setup and machining depth before ordering.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
This high-precision ball nose end mill is made from ultra-fine carbide, hardened to 65 HRC and finished with a Blue Nano coating to ensure outstanding wear resistance and thermal stability. As a robust hrc65 ball nose end mill, it is designed for high-speed machining and finishing of hardened steels, moulds and dies.
The 4-flute geometry provides higher rigidity and more cutting edges, allowing increased feed rates and excellent surface finish in continuous cnc ball nose end mill operations. This carbide ball nose end mill is available in a range of popular ball nose end mill sizes, making it a reliable choice for demanding ball nose end mill applications in precision tooling and mould manufacturing.
Grade HN44F is made from submicron WC powder, some special additives added.
It’s suitable for making drills and end mills, especially for machining steel,Al-based alloys and Ti-basedalloys.
| Grade | Cobalt content % | Grain size | Density g/cm³ | Hardness HRA | Hardness HV30 | MPa Transverse rupture strength | MPa ·m1/2 Fracture toughness MPa ·m1/2 |
|---|---|---|---|---|---|---|---|
| HN44F | 12 | 0.4 | 14.15 | 92.6 | 1,720 | 4,200 | 9.6 |
| Scientific name | Composition | Physical properties | Features | Typical applications |
|---|---|---|---|---|
| Nano-Blue | Blue surface layer: may contain AlCrN (aluminium-chromium nitride) or TiSiN (titanium–silicon nitride); the blue colour comes from nano-structured interference. Nanomultilayer structure: alternating layers such as TiN/AlN (individual layer thickness ＜50 nm) to increase hardness and thermal stability. | Hardness: 3000–4000 HV (nano-indentation). Friction coefficient: 0.1–0.3 (lower when combined with DLC). Heat resistance: stable up to 1000°C (oxidation starts above 800°C). Adhesion strength: ≥70 N (critical load in scratch test). Surface roughness: Ra ＜0.05 μm (after polishing). | Blue appearance: achieved by nano-optical thin-film design, and can serve as wear indicator (colour change shows coating loss). Self-lubricating: some Si- or WC-containing nanocoatings can form a silica-based lubricating layer at high temperature. | Recommended workpiece materials High-hardness steels (HRC＞50, such as mould steel, bearing steel). High-temperature alloys (nickel-based / titanium alloys, relying on coating heat resistance). Non-ferrous metals (aluminium and copper alloys, requiring low-friction coating to prevent built-up edge). Composites (CFRP, avoiding adverse reactions between coating and fibres). Typical application fields Aerospace: machining turbine-blade dovetails, milling titanium-alloy structural parts. Automotive moulds: high-precision cavity milling, balancing efficiency and surface quality. Medical devices: micro-machining of cobalt-chromium artificial joints. |
Our ball nose end mill drawings clearly show key ball nose end mill dimensions such as diameter, radius, flute length and overall length. This helps you confirm the right ball nose end mill sizes for your CNC setup and machining depth before ordering.
A ball nose end mill is a type of milling cutter with a hemispherical tip, designed for 3D contouring and surface finishing. Compared with a flat end mill, a ball nose end mill cutter leaves a smoother surface on complex shapes such as moulds, dies and cavities. It is widely used in cnc ball nose end mill applications like 3D profiling, engraving, copy milling and sculptured surfaces. Typical ball nose end mill application areas include automotive, mould making, aerospace parts and precision components where fine surface finish and accurate curvature are required.
Our ball nose end mill range covers a full selection of ball nose end mill sizes from micro tools to standard diameters. Common options include 1 mm ball nose end mill, 2mm ball nose end mill, 3mm ball nose end mill, 4mm ball nose end mill, 6mm ball nose end mill, 8mm ball nose end mill, 10mm ball nose end mill and 12mm ball nose end mill. Smaller diameters are ideal for fine detail, engraving and narrow areas, while larger tools are better for cavity milling and faster material removal. When selecting a size, consider the smallest corner radius on your part, the machine’s spindle speed and rigidity, and the required balance between accuracy and productivity.
Yes, we can supply ball nose end mill set options to cover your most common diameters and materials. A typical carbide ball nose end mill set includes several ball nose end mill bits from small sizes for detail work up to medium or larger diameters for cavity milling and profiling. These sets are ideal for toolrooms, mould shops and CNC workshops that handle a variety of ball nose end mill application tasks but want to keep purchasing simple. Depending on your needs, we can configure sets for aluminum-focused tools, hardened steel tools, or mixed sets that cover both 2-flute and 4-flute geometries.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
We Are Commited To Providing High-Quality, Customized solutions At An Affordable price While Also Prioritizing sustainability And ExcellentCustomer Service, These Qualities Make Us A Great choice For Your Ball nose end mill Needs
We Only Use unground tungsten carbide rods with HlP sintering and100% virgin material. Our grade includes lsO K05 to K40, frommachining carbon steel to aluminium, non-ferrous metals andtitanium or we develop grade for your applications.
As a HNCarbide customer, you can enjoy five-axis high-precisiongrinding machines from Australia’s ANCA or Germany’s Walter. Themodern workshop with constant temperature and humidity ensuresthe accuracy of each Ball nose end mill
Each of your tungsten steel Ball nose end mill will be sandblasted toeffectively remove burrs and improve the finish.
All HNCarbide’s Ball nose end mill will be monitored on WALTER HELICHEEK andZOLLER GENlUS 3 to ensure that every dimension is qualified. We arecommitted to controlling the tolerance within 3 UM.
At HNCarbide, every shipment is meticulously packaged to ensure your tools arrive intact.

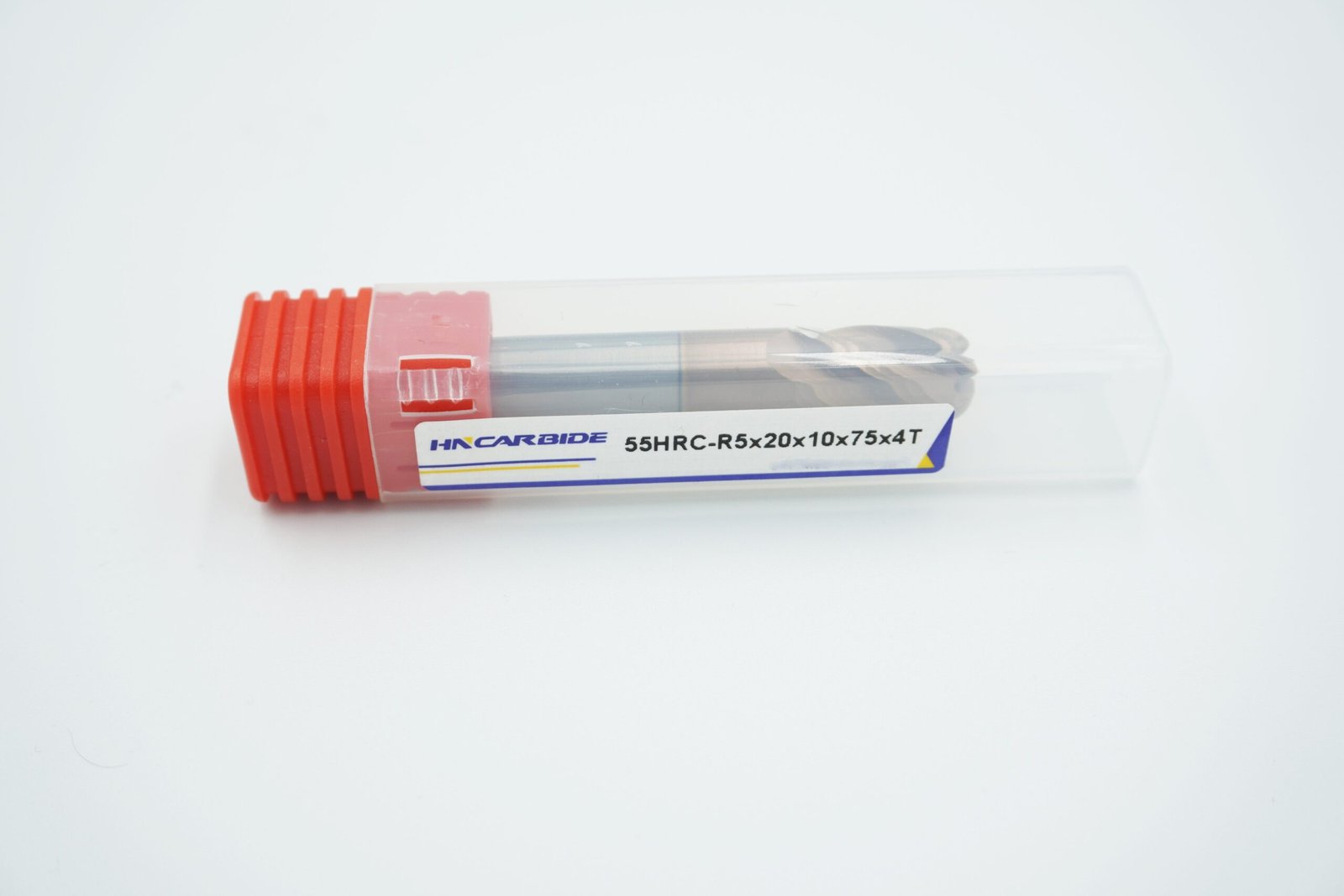

Each HNCarbide Solid Ball nose end mill is individually placed in a shock-resistant protective case, labeled with complete specifications, and sealed in moisture-proof packaging material before being boxed.
Large-volume orders are reinforced with double-wall cardboard boxes or wooden crates to maximize safety during international shipping.
We collaborate with reliable logistics partners to ensure goods are delivered quickly and securely to their destination via air freight, sea freight, or express courier.
A ball end mill has a rounded cutting edge for machining 3D contours, cavities and curved surfaces. It is ideal for moulds, dies and complex parts where sharp corners are not required but smooth transitions and fine surface finish are important.
A 2 flute ball end mill provides more space for chip evacuation, making it a good choice for softer materials and slotting or roughing operations. A 4-flute ball end mill offers stronger cutting edges and allows higher feed rates, giving better productivity and surface finish in stable steel machining.
Standard ball end mill sizes include small diameters such as 1mm ball end mill, 2mm ball end mill, 3mm ball end mill, and popular tools like 4mm ball end mill, 6mm ball end mill, 8mm ball end mill and 10mm ball end mill. Larger diameters, for example 18mm ball end mill, can be supplied for heavy milling and efficient roughing.
Yes. We can produce non-standard tools according to your drawings, samples or machining requirements (material, coating, size, tolerance and application). Our engineers will evaluate and provide a quotation and lead time.
For serious buyers and distributors, we can offer free standard samples if in stock. Usually you only need to cover the freight cost. For customized tools, a sample fee may apply, which can be refunded or deducted in bulk orders.
Yes.
Regional or customer protection based on sales targets, avoiding price wars among our partners.
Catalogs, brochures, product photos, technical data sheets, online materials.
For key partners, joint promotion, exhibitions and digital marketing support.
Safety stock for fast-moving items and forecast-based production.
Priority production and regular shipments to reduce stock-out risk.
Clear quality warranty policy, quick response to claims.
Replacement, credit or other solutions after confirmation of issues.
Tool selection and cutting parameter advice.
Problem analysis for different materials and machines.
Online training, documents, and when possible, on-site support for key accounts.
Before you go, please note that we offer the most up-to-date industry research reports and the most comprehensive product catalogs, so please contact us if you are interested!
Before you go, please note that we offer the most up-to-date industry research reports and the most comprehensive product catalogs, so please contact us if you are interested!
Optimized by Seraphinite Accelerator
